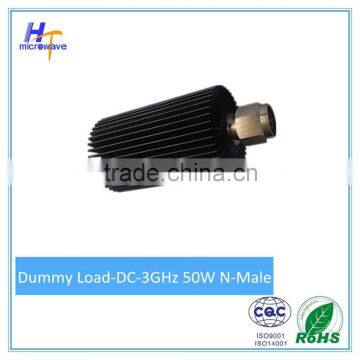

50 Ohm Termination DC - 3000MHz, 50W, N Male Connector

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shanghai ShenZhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China		Brand Name	HTMICROWAVE
Model Number	HT.TER-034-50W-9NM

Packaging Details

50PCS/Carton;
Shipping Marks & Logo can be customized

Product Description

TERMINATIONS

RELATED PRODUCT


Reactive Power Splitters	Directional Couplers	Hybrid Couplers	Hybrid Matrix Combiner	Attenuators

Terminations	Low P2M Attenuator& Terminations	Antennas	Cable Assembly	Connectors & Adapters

1.TERMINATIONS

Termination designed to absorb all the incident power with very little reflection,effectively terminating the line or port in its

characteristic impedance.Termination are used in a wide variety of measurement systems;any port of a multi-port microwave

device that is not involved in the measurement should be terminated in its characteristic impedance in order to ensure an accutate measurement.Terminations are also used in devices such as derectional couplers and isolators.High power versions are used in transmitter

applications as dummy loads.Termination offered by HTMICROWAVE are matched to 50 ohms characteristic impedance.

A wide selection of terminations from stock ready for you just-in-time shipments.With power ratings from 2 to 300 watts fitted with N ro DIN-Male or female connectors.Our terminations are designed to exceed commercial specifications.

2.SPECIFICATIONS

Dummy Load-DC-3GHz 5/25/50/100/200W N,DIN type

Electrical Specifications:
Power	2W	5W	25W	50W	100W	200W
Frequency Range	DC-3GHz
Impedance(Ω)	50
VSWR	≤1.2:1
PIM3(dBc)	≤-120@2X33dBm			≤-105@2X43dBm
PIM5(dBc)	≤-145@2X33dBm			≤-120@2X43dBm
Connectors Type	N-Male,N-Female,DIN-Male,DIN-Female
Operating Temp.(℃)	-20~+55
Humidity	≤95%
Dimension(mm)	Φ16X30	Φ16X30	Φ50X68	Φ50X105	146X100X60	226X142X64

Low PIM Dummy Load-DC-3GHz 50/100/200W N,DIN type

Electrical Specifications:
Power	50W	100W	200W
Frequency Range	DC-3GHz
Impedance(Ω)	50
VSWR	≤1.25:1
PIM3(dBc)	≤-150@2X43dBm
PIM5(dBc)	≤-160@2X43dBm
Connectors Type	N-Male,N-Female,DIN-Male,DIN-Female
Operating Temp.(℃)	-20~+55
Humidity	≤95%
Dimension(mm)	185X142X54	185X142X54	185X142X80

4.COMPANY FILE

HTMicrowave Co., Ltd., established in 1992, is an ISO9001:2000 certified company. We are a leading microwave/RF component manufacturer and designing company.
Our products are widely used in GSM,DCS,CDMA,3G communication system, satellite orientation, radar and military fields.
Our products include 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.

5.TESTING DEVICE

6.OUR CUSTOMERS

7.FAQ

Q:Are you factory or trading company?

A:We are manufacturer.

Q:How long is your delivery time?

A:Generally it is 3-10 days if the goods are in stock.Or it is 15-20 days according to quantity.

Q:Do you provide samples?Is it free?

A:Yes,we provide samples if you need.Free or not is depended on the product you need.

Q:What is your terms of payment?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
