Adjustable Lead Screw Industrial Sewing Machine Jack
| Type: | Worm Gear Screw Jack |
| Model: | SWL( 1T,2.5T,5T,10T,15T,20T,30T,40T,50T,100T) |
| Ratio: | 1/8,1/10,1/12,/1/15,1/20,1/24,1/30,1/40 |
| Color: | Grey,Blue |
| Material: | Housing-Casting iron-HT200# |
| Worm Gear- Cooper-10-3 # | |
| Worm-20CrMnTi with carburizing and quenching, surface hardness is 56-62HRC | |
| Shaft & Screw-chromium steel-45# | |
| Packing: | Paper carton,Plywood box / per set(With foam board inside) |
| Bearing: | Brand "HRE" Bearing |
| Seal: | NAK Seal from TAIWAN |
| Warranty: | 1 year |
| Input Power: | Various Power |
| Usages: | In industrial machine: Food stuff,Ceramics,chemical, aswell as packing, printing, dyeing,woodworking, glass and plastics….. |

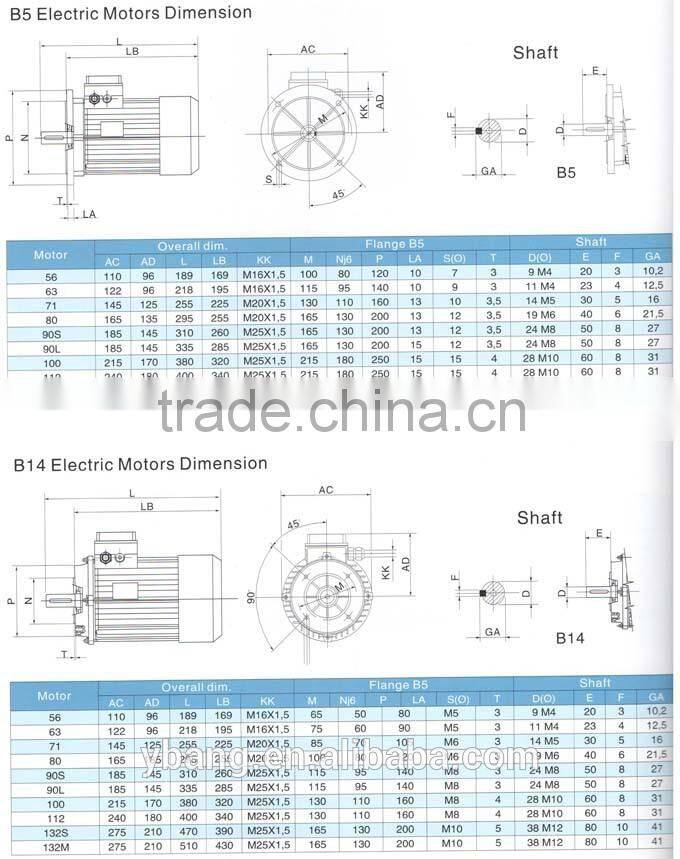

| IEC Flange: | 80B5,90B5,100B5,112B5,132B5..... |
| Lubricant: | Synthetic & Mineral |
Function:
Screw jack is a basis jack-up part, accomplanish the fuctions such as
lifting, drop, push and inverting through worm gear drives screw.
Advantages:
-Self-locking ability
-Can be driven directly by motor or other power or manual
-Can be customized according user's demand
-Compact configuration, small size, lightweight
-Convenient installation, flexible operation
-High reliability and stability
-Long service life
-More connection form etc.
Application Industry:
Screw jak is applied to all fields for lifting or pulling, such as
Aircraft maintenance platform, Solar plate, machinery, metallurgy,
water conservancy, medical treatment, chemical industry, culture and
hygienist etc.
Notes: Selection Steps

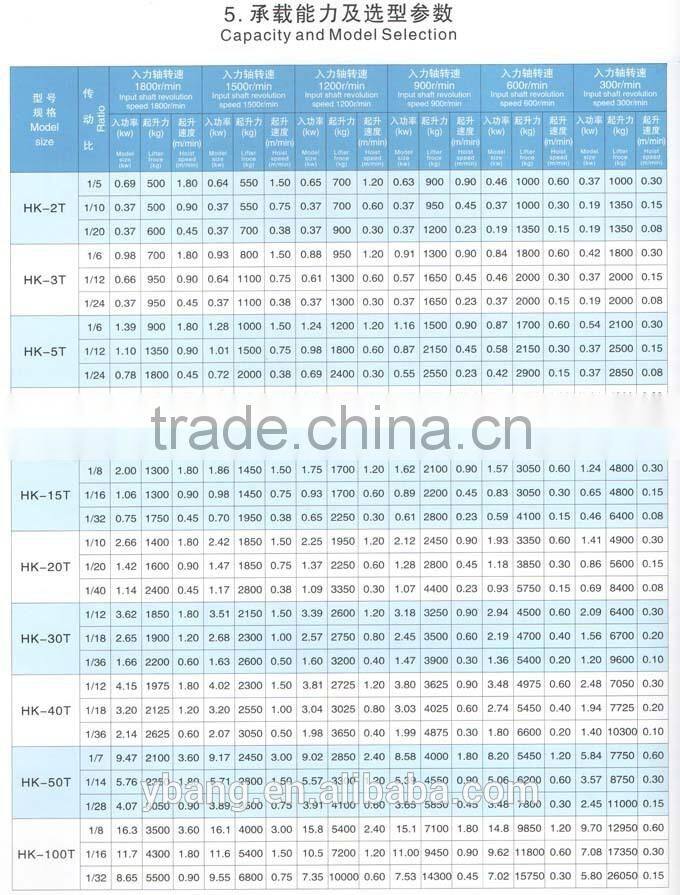

1.Carrying Capacity(ton)
2.Ratio

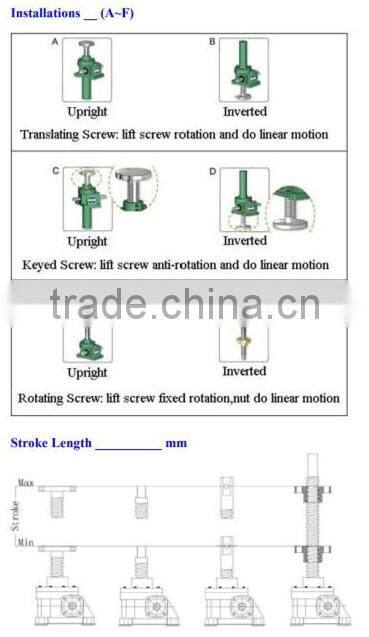

3.Installation
4.Stroke Length

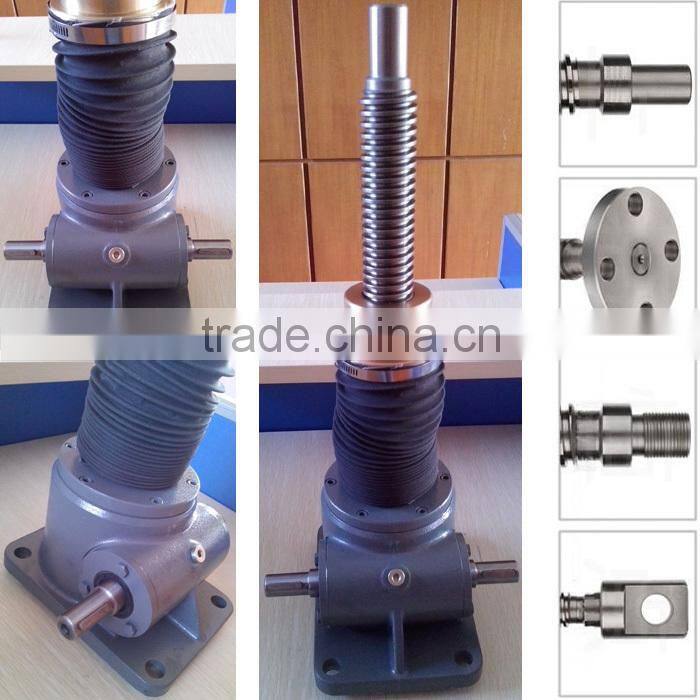

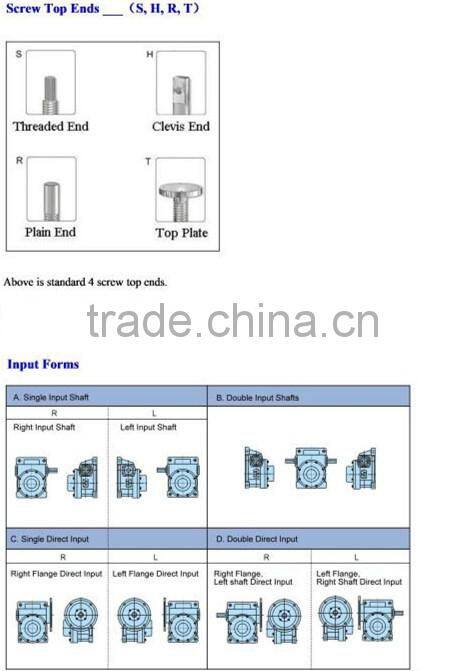

5.Screw Top End Shape
6.Input Form
As Usual, according to these steps, you can find the models you need.
We can provide SWL, DSWL, HK, DHK,NDM, NDB series screw jack. If you have no ideal about which one matchs your requirement, pls send me the inquiry, we will help you to choose it.
(1) With excellent quality and Reasonable price
(2) Promise to delivery on time
(3) Safe, reliable, economical and durable
(4) Stable transmission, quiet operation
(5) High heat-radiating efficiency, high carrying ability
(6) Every product must be tested before sending
