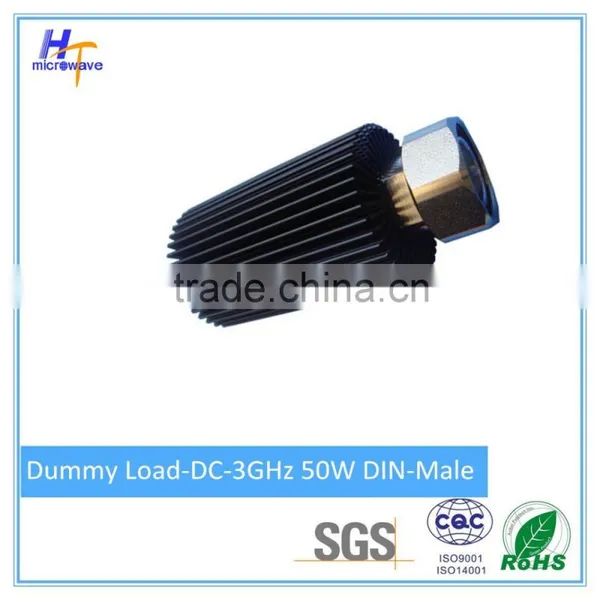

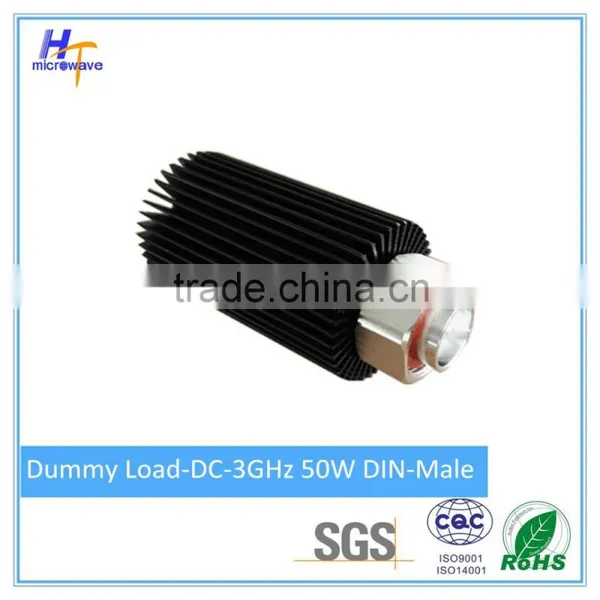

Help CenterDummy Load rf Coaxial Termination Load -- DC - 3GHz 50W DIN Male Connector
Related Products
-
Fixex Load Termination 50W 3GHz 50ohms N Type 50w rf LoadUS$ 15 - 18MOQ: 5 Pieces -
7 16 DIN Type Micro Fixed Coaxial Termination Dummy Load 50W DC - 3GHzUS$ 9 - 13MOQ: 1 Piece
-
Coaxial Termination Load 100W Dummy Load DC - 3GHz 50ohm 7 16 DIN Male ConnectorUS$ 18 - 22MOQ: 1 Piece
-
RF 5w Coaxial Fixed Termination Dummy Load DIN Male/female 50 OhmNegotiableMOQ: 1 Piece
-
RF 5w Coaxial Fixed Cable Termination Kits Dummy Load DIN Type ConnectorNegotiableMOQ: 1 Piece
HTMICROWAVE CO.,LTD
|
|
|
|
|
| Reactive Power Splitters | Directional Couplers | Hybrid Couplers | Hybrid Matrix Combiner | Attenuators |
|
|
|
|
|
| Terminations | Low PIM Attenuator& Terminations | Antennas | Cable Assembly | Connectors & Adapters |
Termination is designed to absorb all the incident power with very little reflection,effectively terminating the line or port in its characteristic impedance.Termination are used in a wide variety of measurement systems;any port of a multi-port microwave device that is not involved in the measurement should be terminated in its characteristic impedance in order to ensure an accutate measurement.Terminations are also used in devices such as derectional couplers and isolators.High power versions are used in transmitter applications as dummy loads.Termination offered by HTMICROWAVE are matched to 50 ohms characteristic impedance. A wide selection of terminations from stock ready for you just-in-time shipments.With power ratings from 2 to 300 watts fitted with N ro DIN-Male or female connectors.Our terminations are designed to exceed commercial specifications.
|
| Dummy Load, DC-3GHz, 2,5,10,25,50,100,200,300W, N and DIN Connector |
HT TERMINATION SERIES
1. Finned Termination
2. Powers 2W to 300W
3. Low Specified PIM
4. N and DIN Connectors
5. High Reliability
6. Economic price
7. ISO9001,ISO14000,SGS RoHS Compliant

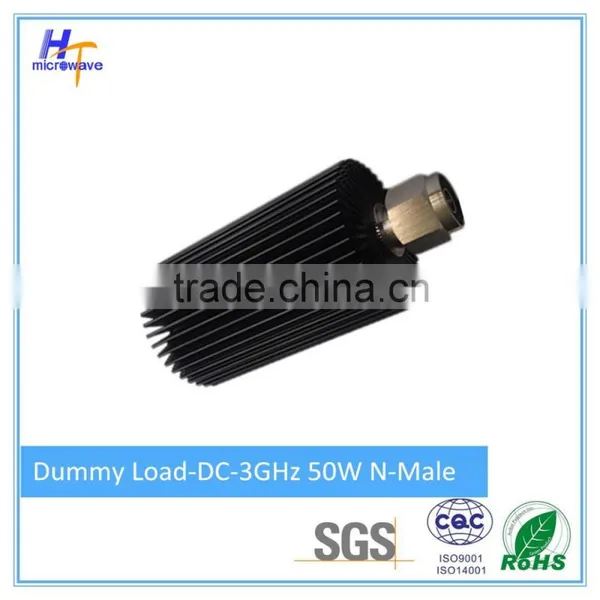

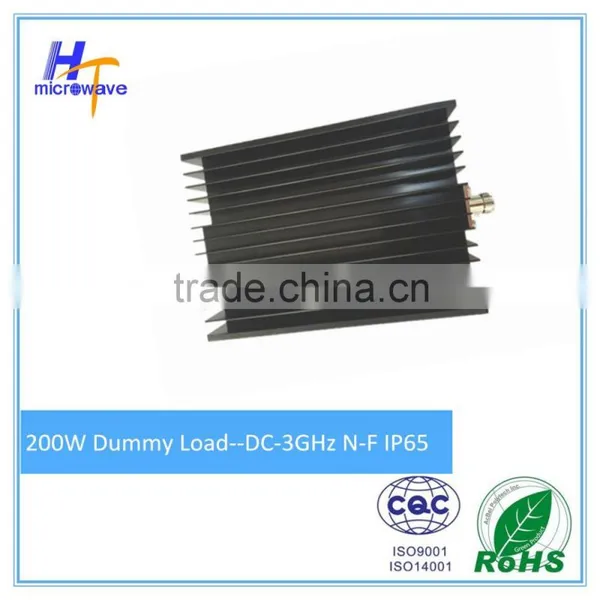

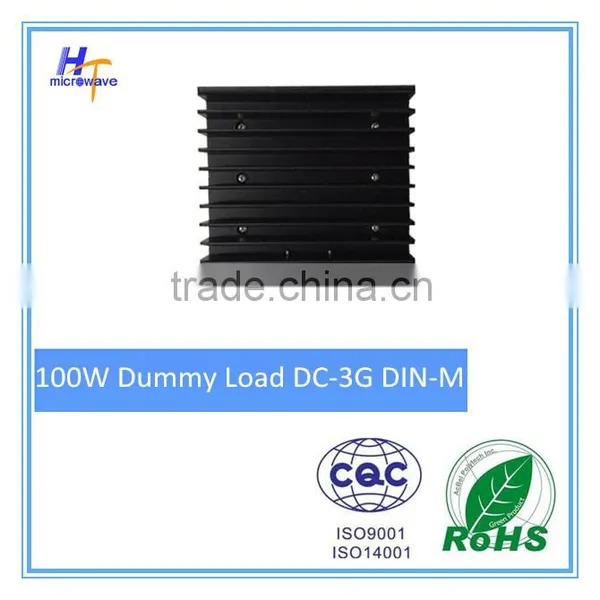

Dummy Load-DC-3GHz 5/25/50/100/200W N,DIN type
| Electrical Specifications: | ||||||
| Power | 2W | 5W | 25W | 50W | 100W | 200W |
| Frequency Range | DC-3GHz | |||||
| Impedance(Ω) | 50 | |||||
| VSWR | ≤1.2:1 | |||||
| PIM3(dBc) | ≤-120@2X33dBm | ≤-105@2X43dBm | ||||
| PIM5(dBc) | ≤-145@2X33dBm | ≤-120@2X43dBm | ||||
| Connectors Type | N-Male,N-Female,DIN-Male,DIN-Female | |||||
| Operating Temp.(℃) | -20~+55 | |||||
| Humidity | ≤95% | |||||
| Dimension(mm) | Φ16X30 | Φ16X30 | Φ50X68 | Φ50X105 | 146X100X60 | 226X142X64 |
Low PIM Dummy Load-DC-3GHz 50/100/200W N,DIN type
| Electrical Specifications: | |||
| Power | 50W | 100W | 200W |
| Frequency Range | DC-3GHz | ||
| Impedance(Ω) | 50 | ||
| VSWR | ≤1.25:1 | ||
| PIM3(dBc) | ≤-150@2X43dBm | ||
| PIM5(dBc) | ≤-160@2X43dBm | ||
| Connectors Type | N-Male,N-Female,DIN-Male,DIN-Female | ||
| Operating Temp.(℃) | -20~+55 | ||
| Humidity | ≤95% | ||
| Dimension(mm) | 185X142X54 | 185X142X54 | 185X142X80 |
HTMicrowave Co., Ltd., established in 1992,is a new-high-tech enterprise which focus on microwave technology research,RF,microwave component and system industry development.We are located in HeFei,covering total 73000m2 and possess 300 advanced microwave detection devices and precision machining equipments. Now there are 3 subsidiaries,2 factories and 1 branch belong to HTMicrowave Co., Ltd., The capacity of production one year here is around USD200 million.
Our products contains 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.
Q:Are you factory or trading company?
A:We are manufacturer.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock.Or it is 15-20 days according to quantity.
Q:Do you provide samples?Is it free?
A:Yes,we provide samples if you need.Free or not is depended on the product you need.
Q:What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
