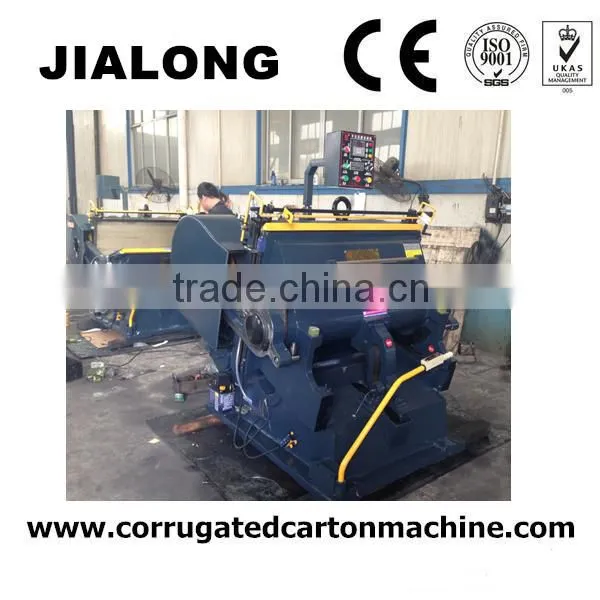

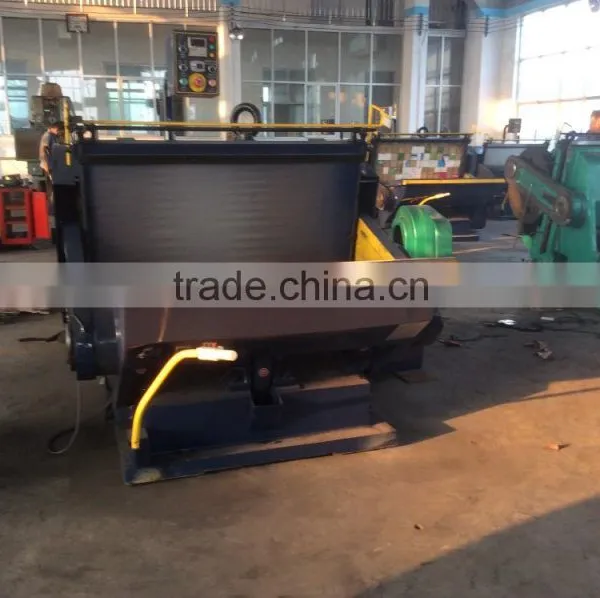

Help CenterML 750/930 Semi-auto Paper Die Cutting and Creasing Machine
Related Products
-
High-accuracy Steel Rod Pedal Control One-way or Two-way Operation Non Semi Automatic Die Cutting And Creasing MachineUS$ 1,000 - 1,000MOQ: 1 Carton -
DIE CUTTING AND CREASING MACHINEUS$ 1,000 - 1,000MOQ: 1 Carton
-
ML750 Creasing and Cutting Machine/big Shot Die Cutting MachineUS$ 1,000 - 1,000MOQ: 1 Carton
-
Manual Industrial Platen Die Cutting and Creasing MachineUS$ 1,000 - 1,000MOQ: 1 Carton
-
Creasing and Die Cutting MachineUS$ 1,000 - 1,000MOQ: 1 Carton
1.Usage
This Wedding Invitation Card/Envelope bag Creasing and Cutting Machine is a special equipment for creasing and cutting ordinary cardboard corrugated board plastic and leather (Such as Brands,Invitation letters,Paper File,Cartons,Bags,Mats,Namecars and so on) ,applicable to printing packaging decoration and plastic industries.Machine is characterized by compact structure,fine workship,big pressure,high precision and easy and reliable operation,etc.
2.Features
*Use high level material integral casting for high intensity machine body.
*Single plate electromagnetic clutch is sensitive and reliable safety
*Operational height is reasonable arranged.the opening angle of moving bed is optimum
*Electrical apparatus is designed in conformity with IEC standard safety system
*Single pressing,continuous pressing,adjustable delay pressing available
*Reliable performance of safety protection system
*Automatic oil pump matching.
3.Technical parameter:
Model |
Inner Chase Size |
Speed |
Max.Rule Length |
Motor Power |
Machine Weight |
Packing (overall) Dimensions |
PYQ401C |
750*520mm |
25 |
<15m |
2.2kw |
2000kg |
1650*1400*1500mm |
PYQ203C |
930*670mm |
23±3 |
<25m |
4kw |
3000kg |
1750*1900*1700mm |
