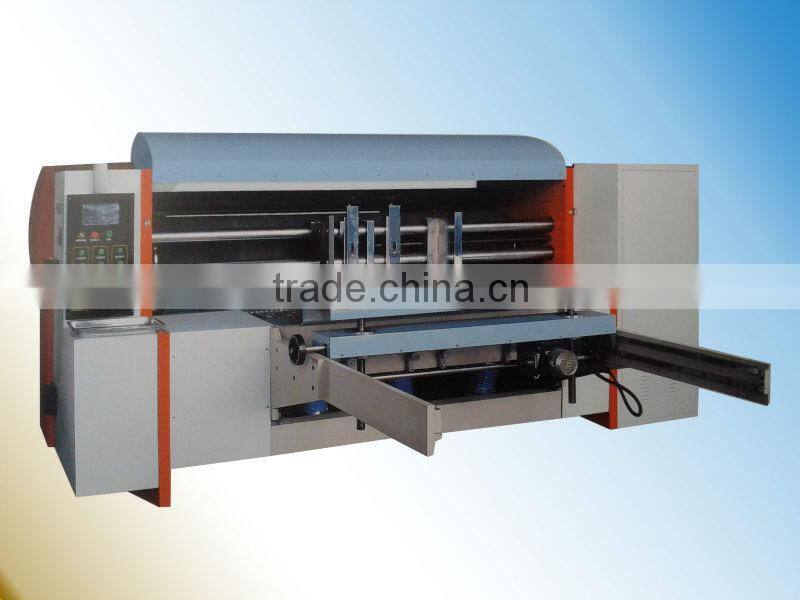

JL 408 Hot Sell China Carton Box Machine Flexo Printer Rotary Slotter Die Cutter Machine
US$ 5,000 - 5,000
MOQ: 1 Carton
Key Specifications
Get Latest Price
Condition:
New
Function:
Other, die cutter
Application:
Other, Machinery & Hardware
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rotary Die Cutter Machine Price/Corrugated Cardboard Carton Box Flexo Printing Rotary Die CuttingUS$ 10,000 - 10,000MOQ: 1 Carton -
Automatic Rotary Die Cutter Machine (Lead Edge Feeding) (carton Box Making Machine) Product DescriptionUS$ 5,000 - 5,000MOQ: 1 Carton
-
Corrugated Carton Box Rotary Die Cutting Machine Automatic Rotary Die Cutter Machine Good PriceUS$ 5,000 - 5,000MOQ: 1 Carton
-
SMMQ- QMY-1080 Fully Automatic Small Carton Die Cutting Creasing Machine With Double Stripping and Non-stop DeliveryUS$ 1,000 - 1,000MOQ: 1 Carton
-
Used Corrugated Carton Box Making Die Cutting and Creasing Machine Automatic Corrugated Box Making MachineUS$ 1,000 - 1,000MOQ: 1 Carton
Condition
New
Function
Other, die cutter
Application
Other, Machinery & Hardware
Packaging Type
Film
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V
Power
4kw
Place of Origin
Hebei, China
Brand Name
JIALONG
Model Number
JL-5000
Dimension(L*W*H)
5000x3500x2000
Certification
CE/ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
carton paper box printer rotary die cutter slotter packaging manufacturing machine for carton box forming
- Automatic suction lead edge feeder equipped with a 7.5kw suction fan to feeding cardboard, the blowing rate is adjustable by the transducer according to the degree of crook of cardboard in order to transmit cardboard smoothly.
- The main control pannel is composed of control buttons and touch screen, which is very convenient and reliable.
- The machine is launched by pressing the start button with two hands, which ensure the operator's safety.
- The side plate is electrical adjusted automatically while the backstop is adjusted manually.
- Sheet cleaner is equipped to remove the contaminants on the cardboard which will improves the printing quality.
- The upper transmission roll is made of seamless steel tube, the surface is covered wearproof rubber, which is also good at avoiding crushing the cardboard.
- The lower transmission roll is made of seamless steel tube, with the treatment of grinding, embossing, and chrome plated.
- The transmission between the upper and lower transmission roll is driven by double slider coupling, which is good at reducing wear down and transmitting smoothly.
- The transmission shaft equipped with electromagnetic friction clutch, for avoiding damaging the motor in case of misoperation or overload.
- Automatic counter for recording the cardboard supply quantity to show the output.
Function of pringting Department
- All the rolls and shafts are made of high quality steel, with the treatment of dynamic balance correction, grinding and chrome plated.
- The printing phase position is and horizontal movement controlled automatically by touch screen with digital display, the phase position could be adjusted CW or CCW easily with 360 degree because of the equipping of PLC and planetary gearing mechanism.
- Equipped with ink quantity monitoring system, the machine will alarm when out of ink, and stop feeding cardboard.
- The printing plate is hanged by the hanging plate device, the printing roll is able to clockwise rotate and counter clockwise rotate which controlled by the foot switch, it's very convenient for installation and dismounting of printing plate.
- Manual gap adjustment via worm reducer with graduated dial indication such as gap between rubber roll and anilox roll, gap between anilox roll and printing roll etc.
- Equipped with electromagnetic clutch break system to fix the printing phase, when separate the printing unit for adjusting the printing phase, the break system will prevent the gear move, keep the original position.
- Phase clear memory and reset after printing plate cleaning.
- The distributing rubber roll is covered by wear proof rubber, it's good at ink transmission.
- Steel anilox roll with the treatment of grinding, pressing overlapping curve and chrome plated.
Function of Slotting Department
- The phase position could be adjusted CW or CCW easily with 360 degree because of the equipping of PLC and planetary gearing mechanism.
- Double slotting configuration, after pressing of prepressing wheel and pressing wheel, the carton box will reach better forming effect.
- Precision linear guide horizontal displacement systems is equipped with slotting unit, the slotting knife seat, pressing wheel, trimming knife will moving precisely.
- The slotting knives are made of high quality alloy steel, with heat treatment and grinding which ensure a long life.
- Manual gap adjustment of prepressing wheel, pressing wheel, slotting knife seat.
- Punching hole device is optional.
Function of Die Cutting Department
- The die-cutting phase position is controlled automatically by touch screen with digital display, the phase position could be adjusted CW or CCW easily with 360 degree because of the equipping of PLC and planetary gearing mechanism.
- Die cutting roll lateral shifting adjustable by PLC and touch screen.
- The die cutting roller is made of the high quality steel with the treatment of chrome plated and balance adjustment.
- Mechanical soft roll is able to lateral movement for 40mm, to make the rubber wear evenly.
- The soft roller auto self grinding unit improves the usage of rubber sleeve, 3 or 4 times grinding and re-use is available.
- Automatic compensation of linear velocity can guarantee that die-cutting size for each batch of cartons is in full accord.
- Imported polyurethane rubber is easy and convenient to install and has a long lifetime, able to die cutting for 12 million times.
- The transmission gear is made of high quality steel with the treatment of accurate grinding, has the advantage of low noise and long lifetime.
Main technology parameters:
- Technical Consultation
- Assess Feasibility On-site
- Detailed Design of Machine and Factory or Workshop
- High Durability Equipment and Low Maintenance Cost
- Continuous Process (Less Labour Required)
- Good in-sale service and after-sale service
- Supplying Spare Part for Long Time
- Installing and Testing the Whole Production Line
- Training Engineers and Workers(operate and maintain machine)
- Power Consumption Low
Our company is specialized in flexo printing and slotter machine. We have exported our products to many countries in Europe,Africa,Middle East and South-east Asia. The quality of the product and our good service have won us good reputation among our customers,thus establishing a long term business relationship with them .
