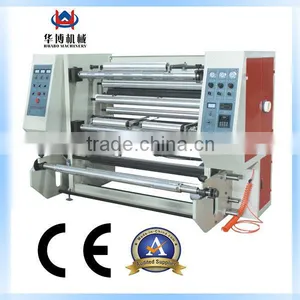

FQ-A Vertical slitting rewinding machine,paper slitting machine,slitting machine price

Specifications

slitting rewinding machine
1. Touch screen control
2. Good quality
3. Factory price

Name: FQ-A Vertical slitting rewinding machine,paper slitting machine,slitting machine price





Characteristic

This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper etc. and can cut edge, separate and cut material according to different requirements during production.



1 The machine is kind of vertical separating and cutting machine. Rolling and releasing can be in front of or at the back of machine.
2 Adopts independent master control screen, make operation more flexible and even easier.
3 Automatic deviation-rectifying of releasing, photoelectric eye is suitable for tracking the edge and color of transparent material.
4 Releasing tension adopts magnetic powder clutch control.
5 Rolling adopt magnetic clutch control.
6 Counting meter of material moving length automatically.

7 The machine has double air cylinders rewinding system.


Main technical parameters

Type	FQ-A 700	FQ-A 1100	FQ-A1300
Max.Width of Mother Roll	700mm	1100mm	1300mm
MAX.Diameter of Mother Roll	Φ600mm	Φ600mm	Φ600mm
Width of Final Roll	30-600mm	30-600mm	30-600mm
Slitting and Rewinging Speed	5-160m/min	5-160m/min	5-160m/min
Tolerance of EPC	<±0.5mm	<±0.5mm	<±0.5mm
Total Power	2.7kw	3.5kw	3.5kw
Weight of Machine	1200kg	1500kg	1800kg
Overall Dimension	2000×1110×1400mm	2400×1110×1400mm	2600×1110×1400mm
