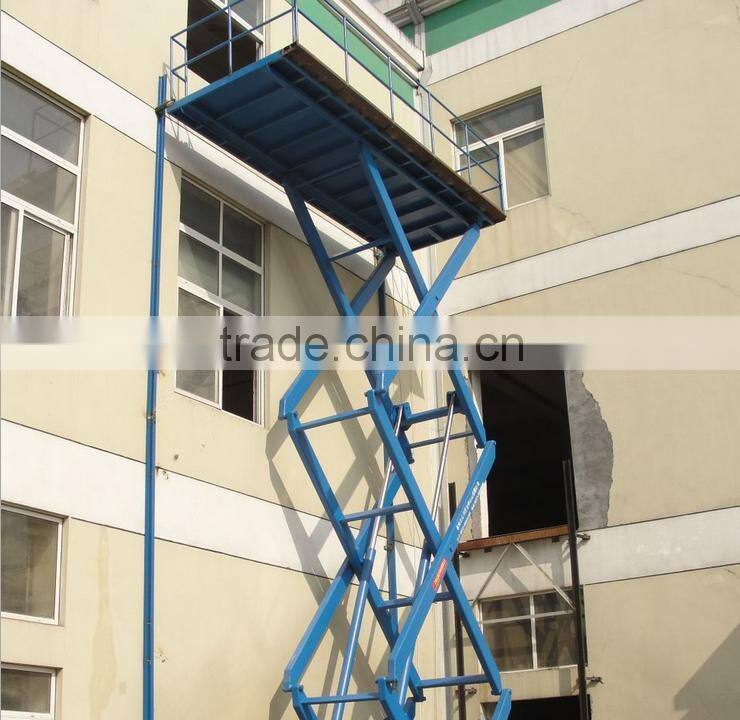

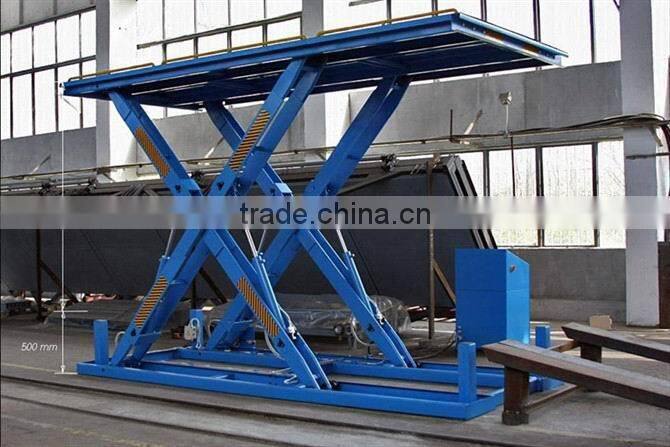

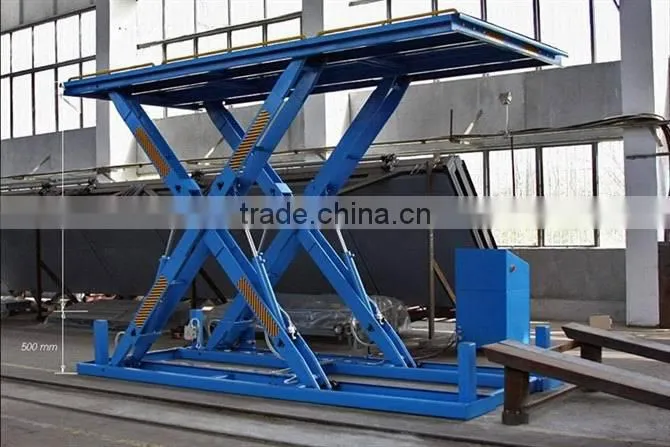

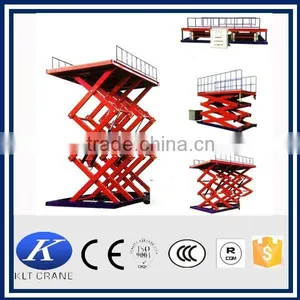

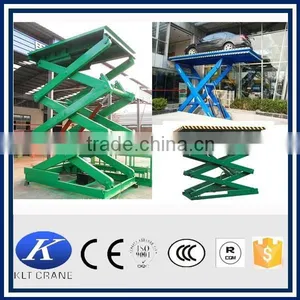

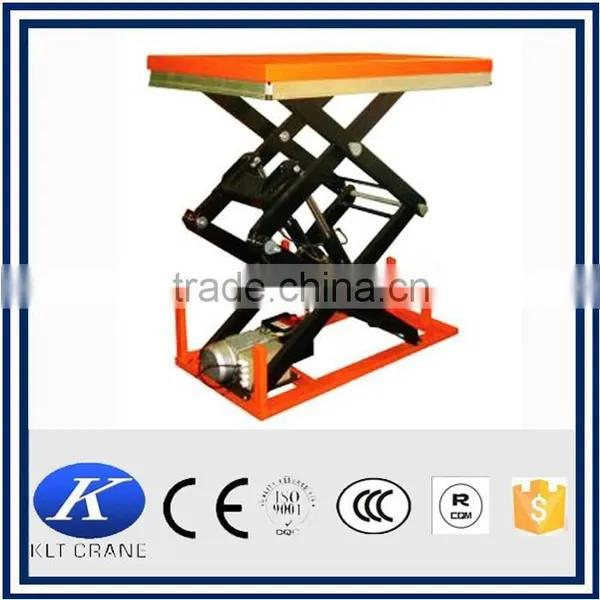

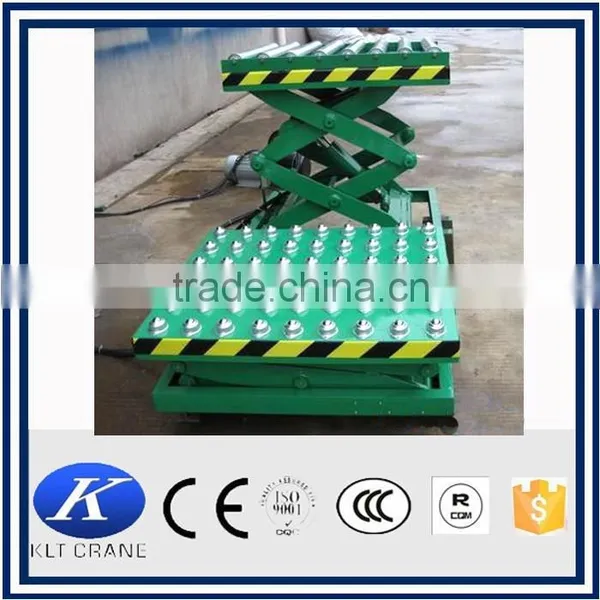

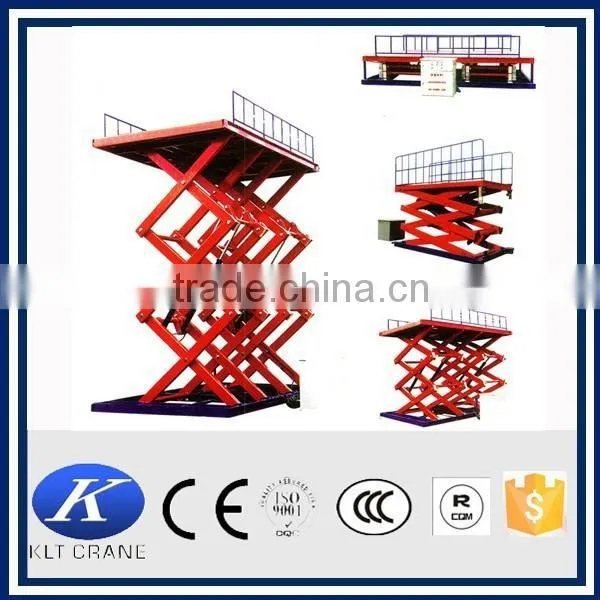

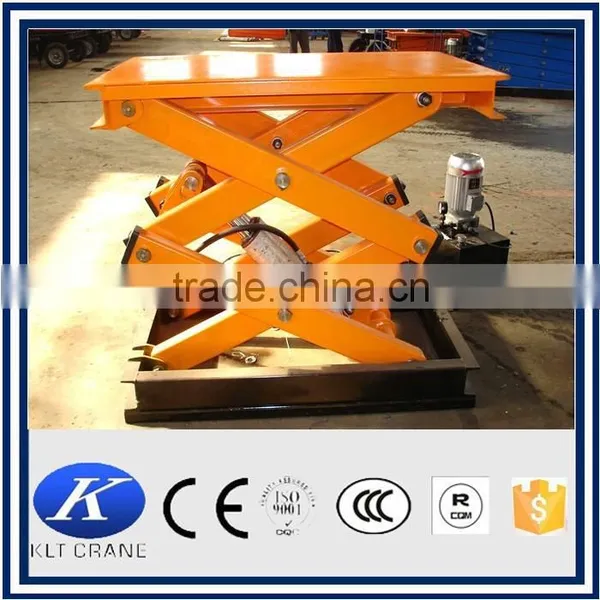

Fixed Scissor Lift Table
1. Brief Introduction:
Lift Table
Fixed elevating platform has a certain function of self-walking and steering (direction change). And neither manual hauling nor external power supply is needed, ascending and descending working performance with self-walking ability of this work platform are very flexible and convenient. It is an ideal equipment of safe operation and high efficiency for modern enterprises.
2. Features:
Lift Table
a. In special circumstance, the scissor lift will use explosion-proof electric equipment.
b.The platform is equipped with antiskid plate to prevent slipping, it is enough safe when works on the
platform.
c.The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load
beyond its rated load capacity.
d.The platform is equipped with antiskid plate to prevent slipping, it is enough safe when it works.
3. Parameters:
Lift Table
Model |
Table size (m) |
Lifting Stroke (m) |
capacity (kg) |
Power supply |
Lifting time (S) |
Min.Height (mm) |
SJG0.5-5 |
2.00×1.00 |
5000 |
500 |
2.2Kw |
47 |
850 |
SJG1-2.5 |
2.00X1.50 |
2500 |
1000 |
2.2Kw |
28 |
480 |
SJG1-3.3 |
1.90×1.50 |
3300 |
1000 |
2.2Kw |
30 |
840 |
SJG1-3.6 |
2.00×1.50 |
3600 |
1000 |
2.2Kw |
32 |
840 |
SJG1-4.3 |
2.50×2.00 |
4300 |
1000 |
2.2Kw |
50 |
990 |
SJG1-4.5 |
1.60X1.50 |
4500 |
1000 |
2.2Kw |
70 |
1050 |
| SJG1-6.0 | 2.20X1.50 |
6000 |
1000 |
2.2Kw |
90 | 1230 |
| SJG1-5.5 | 2.40X1.80 | 5500 | 1500 | 3.0Kw | 80 | 985 |
| SJG2-3.5 | 2.20X1.50 | 3500 | 2000 | 3.0Kw | 75 | 990 |
| SJG2-4.5 | 2.00X1.50 | 4500 | 2000 | 3.0Kw | 85 | 990 |
| SJG2-4.8 | 3.60X2.00 | 4800 | 2000 | 4.0Kw | 40 | 700 |
| SJG2-6.0 | 2.40X2.40 | 6000 | 2000 | 4.0Kw | 95 | 1065 |
| SJG2-6.8 | 2.50X2.20 | 6800 | 2000 | 4.0Kw | 105 | 1400 |
| SJG2-8.0 | 2.50X2.20 | 8000 | 2000 | 4.0Kw | 120 | 1225 |
| SJG3-4.5 | 2.20X1.80 | 4500 | 3000 | 4.0Kw | 88 | 1060 |
| SJG3-7.2 | 5.50X3.00 | 7200 | 3000 | 5.5Kw | 90 | 860 |
Note: The technical just for reference, we can design according to customer's requirements.

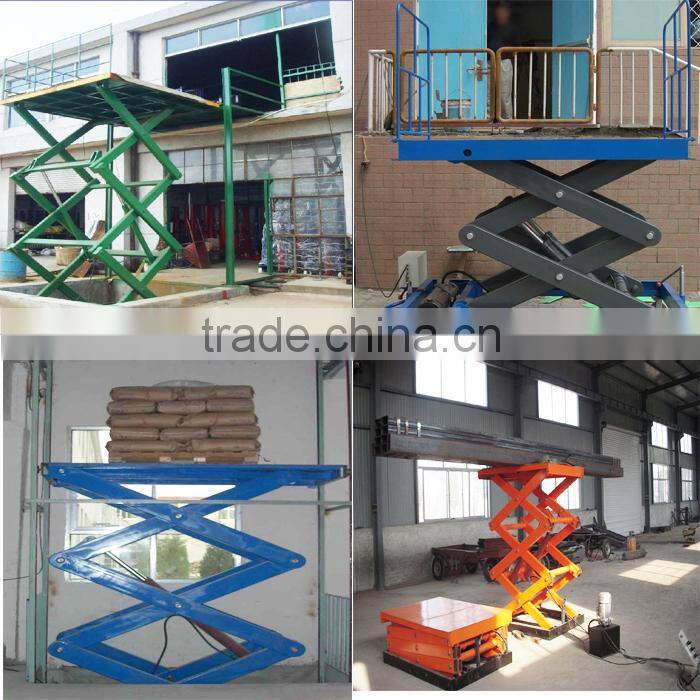

4. Application:
Lift Table
The hydraulic scissor lift is widely used for the equipments installations and maintenance at the following places like construction sites workshops, warehouse, granary, bus/railway stations, hotels,airports, gas station and aerial pipeline.

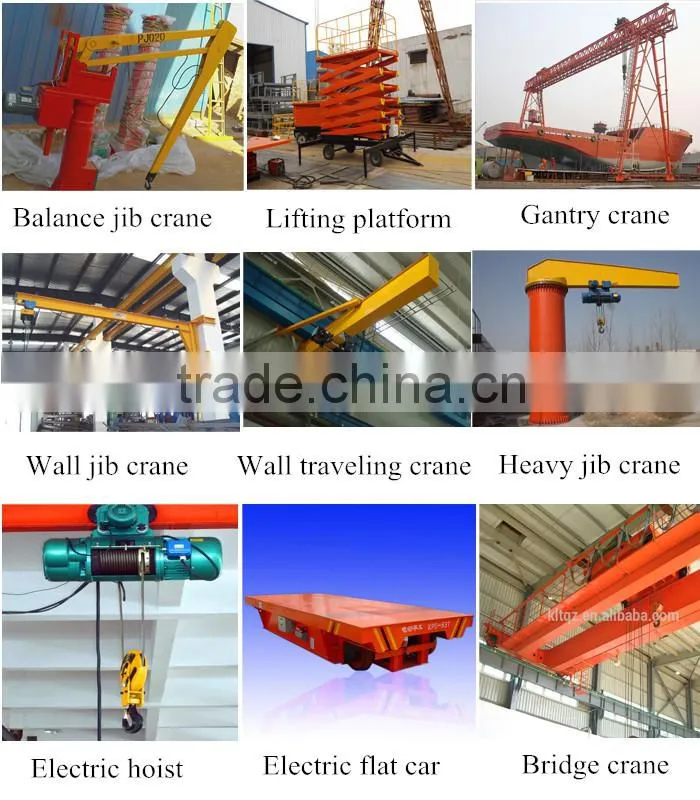

5. More Lift Platforms:
There is always one type suitable for you!
According to meet various requirements from customers, we also produce gantry crane, electric flat car,
overhead/bridge crane, jib crane, electric hoist ect. If you have any interests in those products, please contact me
or scan our website www.kltqz.en.china.cn for more details.
How to Order Our Products
a. Customers offer general drawing of the product.
b.Our designer will make a professional drawing according to your product layout.
c. After your confirming of the drawings, inform us the material and types you need.
d. We will do quote once get the confirmation of you.
Note: Customers can order all product samples we put or you can also have your own idea, as we are custom-made product supplier, so different collors and types are available.
Our delivery is Efficient, Reliable and Prompt!
Packing Detail: Electric parts are packed by strong plywood crate, others packaged in polythene woven cloth or as your requirement.
Delivery Detail:
- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
Customer Visit
Service we can provide
1. Payment terms is flexible
2. Design the crane according to your technical request
3. Delivery on time
4. Diversity products
1. Can you make customized products?
Yes, of course. You can send your workshop pictures or drawings, or just tell us your special demands,
our engineers can make suitable design for you.
2. Can you supply the quality certification?
Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by
yourself, or you can let some third-partied to do the inspection for you.
3. Can I have a visit to your factory?
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
Please never hesitate to contact me!
