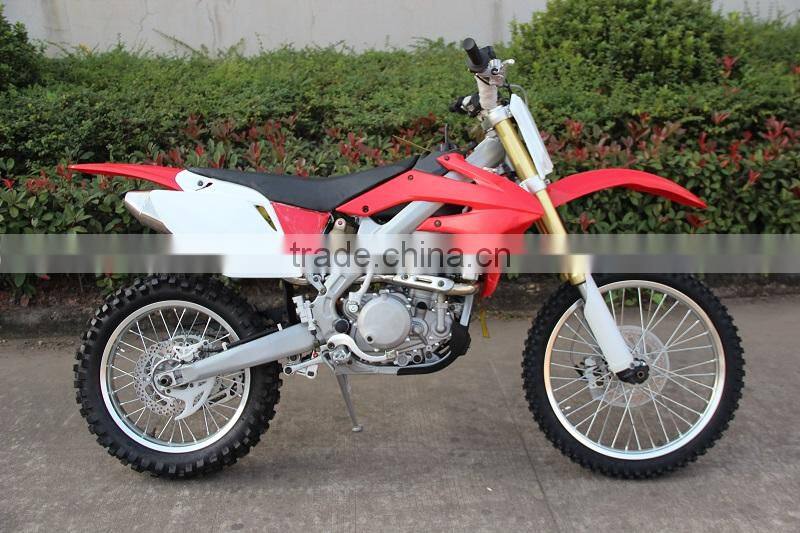

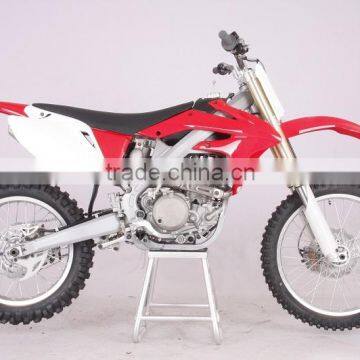

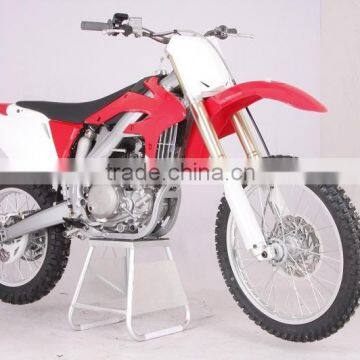

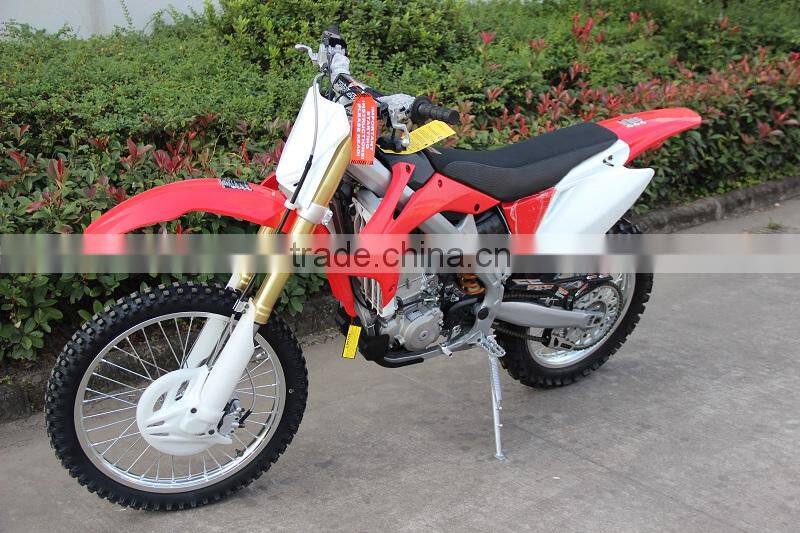

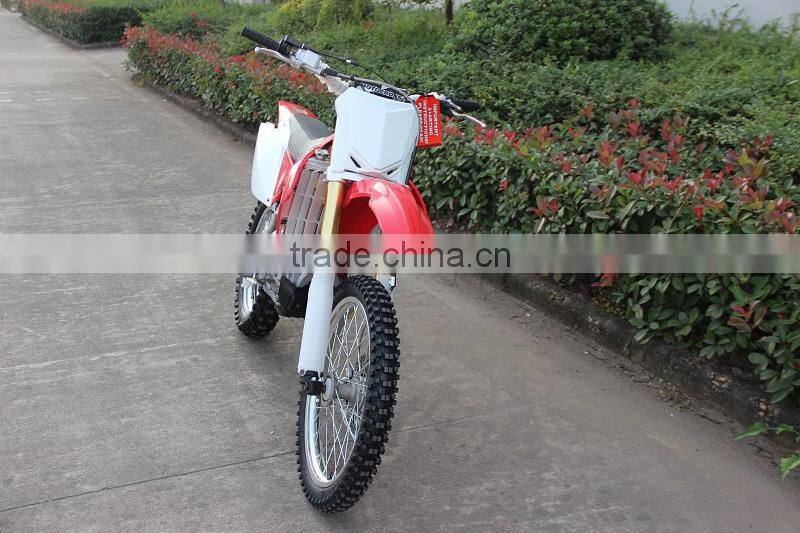

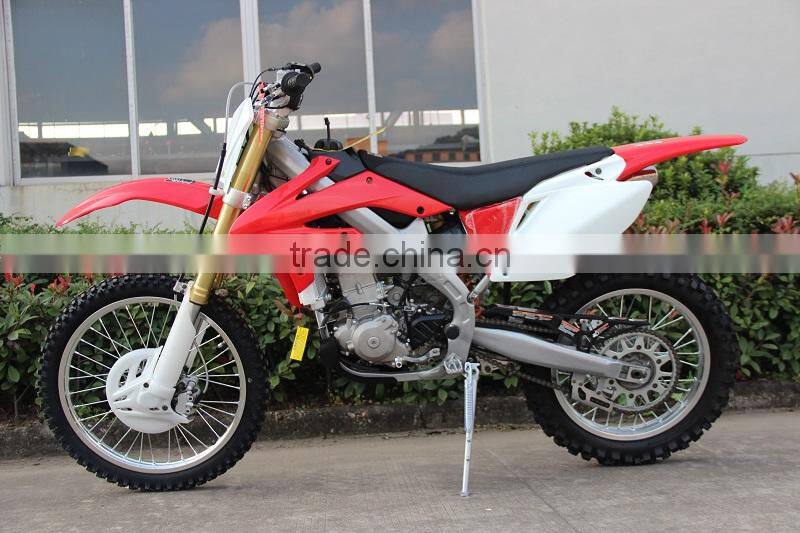

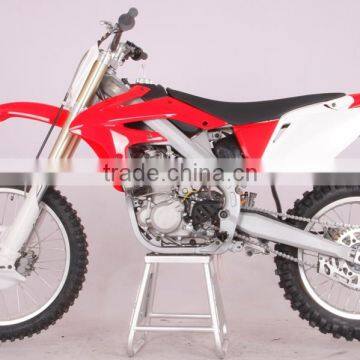

Help Center250CC 4 Valve Zongshen Engine NC250 Dirt Bike
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Dirt Bike
Fuel:
Gas / Diesel
Displacement:
250cc
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KTM STYLE DIRT BIKE 250 HIGH QUALITY 250CC RACING MOTONegotiableMOQ: 1 Piece -
50cc Gas Dirt Bike Cheap Pit Bike 50 for KidsNegotiableMOQ: 1 Piece
-
50cc/65cc 2 Stroke Gas Powered Mini Kids Pit Bike For KidsNegotiableMOQ: 1 Piece
-
Water Cool 250cc Dirt BikeNegotiableMOQ: 1 Piece
-
110cc Mini Chopper for SaleNegotiableMOQ: 1 Piece
Type
Dirt Bike
Fuel
Gas / Diesel
Displacement
250cc
Engine Type
4-Stroke
Certification
CE
Condition
New
Brand Name
motorsll
Place of Origin
Chile
Model Number
NC250DB
Brake(F/R)
Disc
Product Description

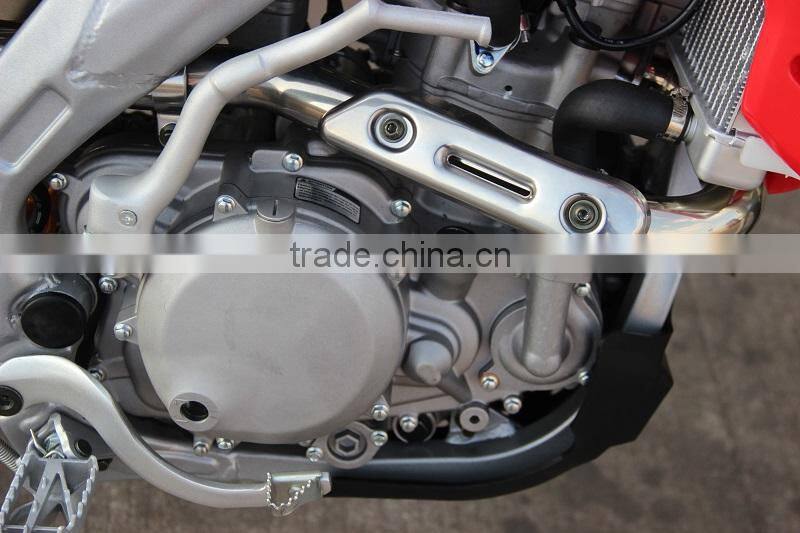

| Engine | |||
| Make | Zongshen | ||
| Model | ZS177MM | ||
| Design Type | Single Cylinder, 4-Stroke, With Balance Shaft | ||
| Timing System | SOHC 4-Valve | ||
| Displacement | 249.6 ml | ||
| Bore & Stroke | 77 mm x 53.6 mm | ||
| Compression Ratio | 11.6 : 1 | ||
| Power Max. | 19Kw / 9000 Rpm (25.85 Hp) | ||
| Torque Max. | 23N.m / 7000 Rpm | ||
| Idle Speed | 1500 ± 100 Rpm | ||
| Starting Type | Electric & Kick Start | ||
| Fuel | 91 Octane Rating or Higher (Required) | ||
| Oil | 15w40 (Synthetic Recommended) | ||
| Ignition Type | Contactless DC - CDI Ignition | ||
| Spark Plug | Denso U22E | ||
| Cooling System | Liquid Cooled | ||
| Carburetor | Dellorto 34 mm (Italy) | ||
| Clutch | Wet, Multi-Disc, Manual | ||
| Chain | KMC 520 | ||
| Transmission | Constant Mesh, 5-Speed, Claw Actuated | Constant Mesh, 6-Speed, Claw Actuated | |
| Primary Drive | 2.910 | 2.910 | |
| Gear Ration | |||
| 1st Gear | 2.589 | 2.589 | |
| 2nd Gear | 1.801 | 1.801 | |
| 3rd Gear | 1.338 | 1.338 | |
| 4th Gear | 1.131 | 1.131 | |
| 5th Gear | 0.966 | 0.966 | |
| 6th Gear | / | 0.882 | |
| Final Drive Ratio | 13 / 51 | 13 / 39 | |
| Electrical Equipment | |||
| Voltage | 12V | ||
| Dimensions & Weight | |||
| Wheelbase | 140 cm (55.12 in) | 140 cm (55.12 in) | |
| Overall Length | 212 cm (83.46 in) | 212 cm (83.46 in) | |
| Overall Width | 81 cm (31.89 in) | 81 cm (31.89 in) | |
| Overall Height | 125 cm (49.21 in) | 117 cm (46.06 in.) | |
| Seat Height | 92 cm (36.22 in) | 90 cm (35.43 in.) | |
| Min. Ground Clearance | 32 cm (12.60 in) | 27 cm (10.63 in.) | |
| Dry Weight | 115 Kgs (253.53 lb.) | 117 kgs (258 lb.) | |
| Max. Load | 160 kgs (352.74 lb.) | 160 kgs (352.74 lb.) | |
| Fuel Tank Capacity | 6.7L (1.77 Gal) | 6.7L (1.77 Gal) | |
| Performance | |||
| Max. Speed | 110.5 Kph (69 Mph) | 116 Kph (72 Mph) | |
| Fuel consumption | ≤ 354 g/kw.h | ||
| Frame | |||
| Type | Perimeter Frame | ||
| Material | High Strength Steel | ||
| Sub Frame | High Strength Steel | ||
| Rear Swing Arm | High Strength Steel | ||
| Frame Color available | Matt Grey | Matt Black | |
| Gloss Grey | |||
| Front Suspension | |||
| Type | Inverted Hydraulic, fully adjustable for rebound & compression | ||
| Length | 910 mm (35.83 in) | ||
| Travel | 275 mm (10.83 in.) | ||
| Rear Suspension | |||
| Type | single shock absorber with piggyback. Adjustable rebound, compression (high & low speed), and spring preload adjustments | ||
| Length | 500 mm (19.68 in) | ||
| Swing arm material | High Strength Steel / Optional Aluminum | ||
| Travel | 250 mm (9.83 in.) | ||
| Brakes | |||
| Front Brake | Single 240mm diameter steel disc | ||
| Front Brake Caliper | Single dual piston caliper | ||
| Rear Brake | Single 240mm diameter steel disc | ||
| Rear Brake Caliper | Single piston caliper | ||
| Wheels | |||
| Front: Material/Size | 21" Aluminum, 7 Series | ||
| Rear: Material/Size | 18" Aluminum, 7 Sereis | ||
| Tires | |||
| Front | 80/100-21 | ||
| Rear | 110/100-18 | ||
| Fairings | |||
| Material | Polypropolene Plastic | ||
| Fairings Color Available | Red | Orange | |
| Black | |||
| Packing | |||
| Package Size | 187 x 45.5 x 92 cm (73.6 x 18 x 36.2 in) | ||
| Loading Quantity | 30 pcs / 20' GP | ||
| 62 pcs / 40' HQ | |||
