Specifications
90 Degree Elbow Connector DWJ-B1.made of zinc die casting
2.Specification of thread: Metric, G

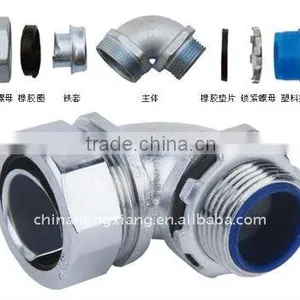

90 Degree Elbow Connector DWJ-B
Code
Specification
The Connected Screw Thread
Metric System
British Standard Pipe Thread(BSP)
HX-DWJ-B-01
φ12(13)
3/8″
G3/8″
HX-DWJ-B-02
φ15(16)
1/2″
G1/2″
HX-DWJ-B-03
φ20
3/4″
G3/4″
HX-DWJ-B-04
φ25
1″
G1″
HX-DWJ-B-05
φ32
1/1/4″
G1/1/4″
HX-DWJ-B-06
φ38(40)
1/1/2″
G1/1/2″
HX-DWJ-B-07
φ51(50)
2″
G2″
HX-DWJ-B-08
φ64(70)
2/1/2″
G2/1/2″
HX-DWJ-B-09
φ75(80)
3″
G3″
HX-DWJ-B-10
φ100
4″
G4″
Property:
1.made of zinc die casting
2.water resistant, dust resistant
3.special design, it is 90°after connecting.
4,DWJ-1 90 Degree Elbow Connectors are the fittings for flexibel pipe and equipment.One end connected with the flexible pipe, the other end of the joint connected with the housing of equipments or connected with electric equipment that in 90°with the pipe.
