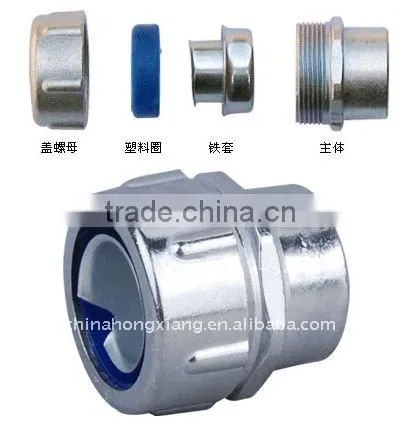

DPN Plum Female

Name: DPN Plum Female
Brand: HONG XIANG
SKU: 123785331
Availability: InStock

Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

HONG XIANG

Model Number:

3/8" - 6"

Yueqing HongXiang Connector Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name HONG XIANG

Model Number 3/8" - 6"

Specifications

DPN Plum Female
1.Inner threaded connector
2.For the connection of felxible pipe, equipment, electrical box

DPN Plum Female

Code	Specification		DPN Female Thread			NCJ insert fitting thick steel pipe
Code	Metric	Inch	Inch	Thin steel	DNP	NCJ insert fitting thick steel pipe
HX-DPN-PF01	φ12	3/8″	G3/8″	C19	DNP3/8	3/8″
HX-DPN-PF02	φ15(16)	1/2″	G1/2″	C19	DNP1/2	1/2″
HX-DPN-PF03	φ20(19)	3/4″	G3/4″	C25	DNP3/4	3/4″
HX-DPN-PF04	φ25	1″	G1″	C31	DNP1	1″
HX-DPN-PF05	φ32	1/1/4″	G1/1/4″	C39	DNP1/1/4	1/1/4″
HX-DPN-PF06	φ38(40)	1/1/2″	G1/1/2″	C51	DNP1/1/2	1/1/2″
HX-DPN-PF07	φ51(50)	2″	G2″	C63	DNP2	2″
HX-DPN-PF08	φ64(70)	2/1/2″	G2/1/2″	C75	DNP2/1/2	2/1/2″
HX-DPN-PF09	φ75(80)	3″	G3″		DNP3	3″
HX-DPN-PF10	φ100	4″	G4″		DNP4	4″
HX-DPN-PF11	φ125	5″	G5″		DNP5	5″
HX-DPN-PF12	φ150	6″	G6″		DNP6	6″

Specification of thread: Metric, G and PG are available
Material: Zinc alloy or Alluminum Alloy just according to your requirement.

Pipe/Tube/Hose/Conduit Metal End Female Connectors Property:
1. Inner threaded connector
2, For the connection of felxible pipe, equipment, electrical box
3, Water resistant, anti-corrosive.
4, Galvanized type, chromium and nickel plated also available.
5, Reliable quality
6, Stable perfermance.
7, Size available: 3/8"--6"
