easy operate full automatic flute laminator laminating machine /flute laminator /laminater machinery
- 10 Set / Sets per Month
- tianjin port china
- T/T L/C D/P D/A Credit Card
- Single-ended carbon fiber heat lamps 500mm 800w infrared heat lamps
- 1300w 670mm far infrared heat lamp frosted carbon fiber heat lamps
- 220v 1300w 670mm infrared carbon fiber heating lamp frosted carbon fiber heat lamps
- 400mm 600w infrared quartz lamp replacement carbon fibre heating lamp
- 400mm 600w infrared quartz heating element carbon fiber quartz tubes
- 230v 1200w infrared paint lamp infrared carbon fiber heating lamp for DTF machines
Product Details
Condition: | New | Application: | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Apparel, Beverage, Chemical, Texti | Packaging Type: | Cartons, Film |
Packaging Material: | Plastic, Wood, Paper, Plastic | Automatic Grade: | Other, Automatic, Automatic | Driven Type: | Other, Electric, Electric |
Voltage: | 220v/380v | Power: | 12kw | Place of Origin: | Hebei, China |
Brand Name: | JIALONG | Model Number: | BZL-1300mm | Dimension(L*W*H): | 12.5x2.0mx2.3m |
Weight: | 7000kg | Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

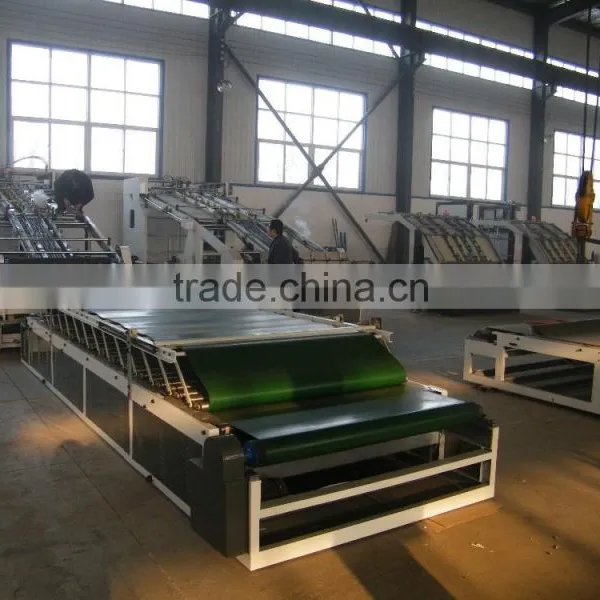

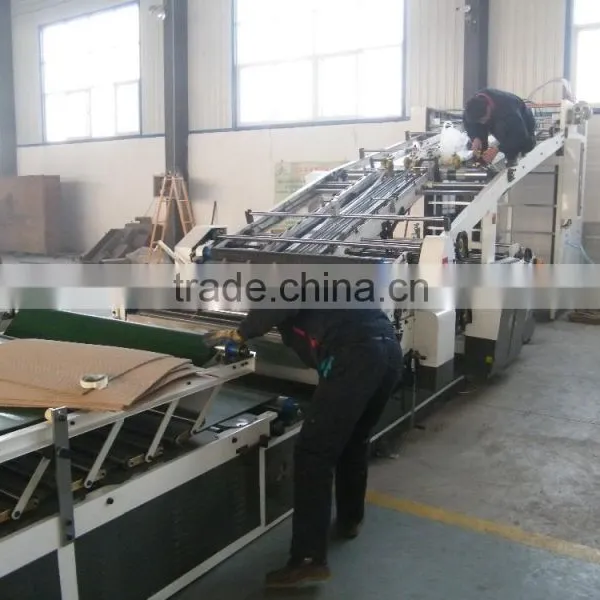

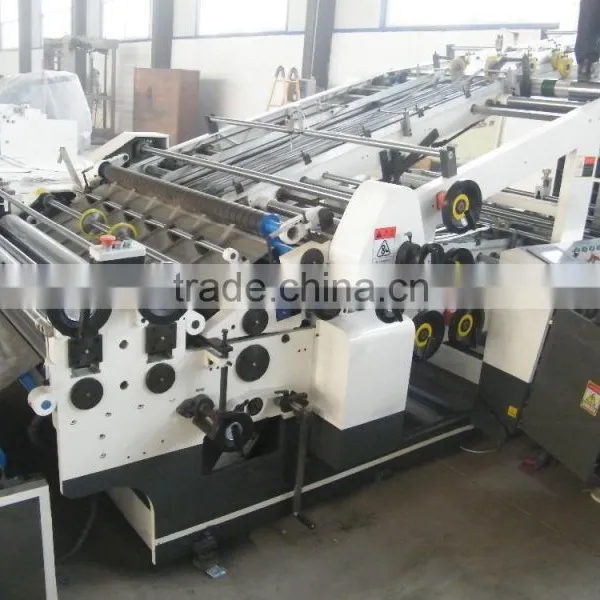

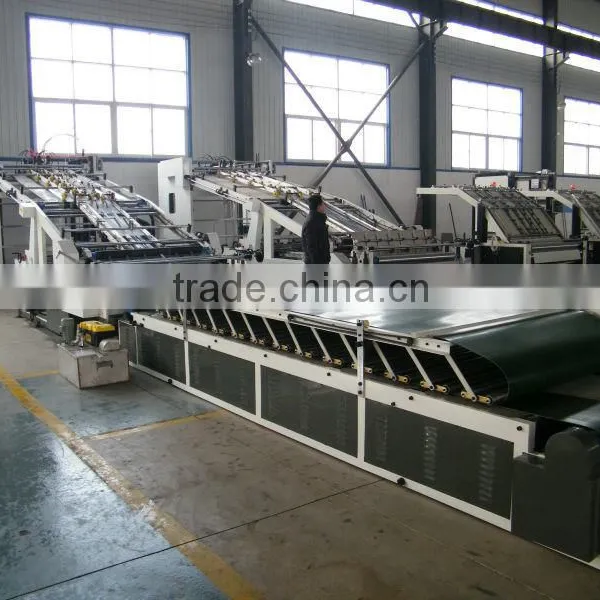

Automatic Flute lamination Machine
(corrugated cardboard paper laminating machine)
BZJ series Automatic flute laminating machine adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system makes this series of machine fit for a larger range of paper, high precision while remaining the features of easy operation and maintenance.
The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.
Balance-tested rollers, tight assembling technique, plus timing and tooth belt driving mechanic system makes the machine runs at low noise with high precision.
The machine adopts automatic glue supply and recyclable glue circulating system.
Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction and stable. The electric parts used are all world wide available brand or well-known Chinese brand.
All material are inspected according to ISO-9001 standard and the key parts such as the harmonic gear and bearings are imported ones.
The bottom sheet for this machine can be A, B, C, D, E, F flute corrugated sheet. It can do 3 or 5 ply board to sheet lamination or board to board lamination. The range for top paper can be 200-600 GSM with top paper advance or alignment function.
Technology parameter
Model | BZJ-1300 | BZJ-1450 | BZJ-1600 |
Max. Paper Size WxL | 1300×1100 | 1450×1100 | 1600×1400 |
Mini. Paper Size WxL | 350×350 | 350×350 | 450×450 |
Laminate precision | ±1.5mm | ±1.5mm | ±1.5mm |
Total Power(kw) | 12 | 12 | 13 |
Max. Speed(P/H) | 6000 | 6000 | 6000 |
Mechanical length(m) | 12.5 | 12.5 | 15 |
Mechanical weight(T) | 7 | 7.5 | 8T |
PACKAGING CORRUGATED CARDBOARD PAPER CARTON BOX MAKING MACHINE
Packing details : Plastic film package or as customer need
Delivery detail :After deposit 30 days
Payment terms:30% down payment TT, The balance payment to be settled before shipment
PACKAGING CORRUGATED CARDBOARD PAPER CARTON BOX MAKING MACHINE
Our company is specialized in corrugated cardboard paper carton box making
machine. We have exported our products to many countries in Europe,Africa,Middle East and South-east Asia. The quality of the corrugated cardboard box packing machine and our good service have won us good reputation among our customers,thus establishing a long term business relationship with them .And then we have the lowest prices in the carton box making machine market .
If you have any other questions , pls feel free to contact me .Looking forward to beginning our cooperation in the near future.
Our service :Engineers available to service machinery overseas
PACKAGING CORRUGATED CARDBOARD PAPER CARTON BOX MAKING MACHINE
our company and work team:
our packaging type and shipping:
our company information:
Jialong Packaging Machinery Co.,Ltd is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of paper board production line, automatic flexo ink printing slotting die cutting machine, automatic flexo ink printing slotting machine, automatic flexo ink printing die cutting machine, semi-auto flexo ink printing slotting machine, semi-auto water ink printing die cutting machine ,slicing cardboard and pressing line machine, rotary die cutting machine, slotting machine, carton stapler,,binding machine, case gluing machine, impressing machine and other relevant packaging machinery.
Many years before, our company considers “Quality is first, Honesty is root” as our principal, to meet customers’ demand is our target. We can supply from machine design to after-sale all service with high quality and professional technique.
We would like to cooperate with friend from every countries sincerely, and we will work hard to create the future of package together
PACKAGING CORRUGATED CARDBOARD PAPER CARTON BOX MAKING MACHINE
1. Q: Are you factory or trading company ? why choose us?
A:we are professional manufacturer factory for carton box making machinery.Our factory has professional produce many kinds of carton box Making machinery for more than 20 years, our machines has export To many countries abroad, We have an experienced production research and development and after-sales service team!
our company rule is : we insist only produce High quality machine with best price, we never produce low quality machine with lowest price, because high quality machine and customers' Satisfaction is the most important foundation of our company development.
2Q: what is your machine Warranty period?
A: We insist only produce high quality machine with best price,
We never produce low quality machine with lowest price,
So we trust our machine quality well, we promised all of the
Machines we produce the warranty period is 24 months.
Because we believe our machine quality, so we dare to Extended warranties!
3.Q:How about the packing of products?
A:Tighten to container with steel wire rope and welded machine with container by angel iron B. Main corrugated box machines and un-coiler is packed with water-proof plastic) C. PLC contral system and motor pump are packed in wooden box with water proof paper coverage
4.Q:how about the delivery time?
A:Normal standard machine we have store, or normally delivery time will be within 30 days .
5.Q: Where is your main market?
A: Our products are exported to more than 30 countries and regions,
Mexico,Spain, Russia,Canada,Poland,Georgia,Bolivia,Hungary, Pakistan, Uzbekistan,Ukraine,Kyrghyz,Argentina,Venezuela, Egypt,Bulgaria,Brazil, Australia, Philippines, Indonesia,Australia, Algeria, Sri Lanka,Bengla, Saudi Arabia,Syria,Turkey,Ethiopia and so on.
6.Q: We do not know how to operate machine,how to deal?
A.we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,accommodation,food and transposition in your country
B.You can send your men to our factory. we will teach them how to operate the machine without training charges
C.Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manual first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.
7Q: If the machine has some problems,during we using ,How to deal?
A:24 months for the whole machine. Within 24 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free.Out of 24 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
