1.1 Overview
This machine is designed for preompliance with regulations chase block positioner fit, side road in regulation for fixed positioning control precision fit, and the use of variable speed so that its structure is simple, easy to operate. Suitable for corrugated paper and cardboard, the cardboard and cardboard, make cardboard more striking, beautiful, high-intensity, high-quality paperboard production of new equipment. Widely used in food, wine, home appliances, light industrial products packaging.
1.2. The main technical parameters
| ||
Machine Model: |
FM1307 |
FM1310 |
| ||
Maximum paper: |
Width 1300mm×length 700mm |
Width 1300mm×length1000mm |
| ||
Minimum paper: |
Width 500mm×length 300mm |
Width 500mm×length 300mm |
| ||
Down paper thickness: |
300g-8mm thickness |
300g-8mm thickness |
| ||
Surface paper thickness: |
150g-700g |
150g-700g |
| ||
Maximum speed: |
10000 pcs/h |
7800pcs/h |
| ||
Fitting accuracy: |
±0.5mm (standard flat paper) |
|
| ||
Apply glue: |
resin glue, starch paper jam glue, etc. (PH6-8 use bonding glue) |
|
| ||
Weight: |
6500Kg |
|
| ||
Power supply: |
380VAC/3P |
|
| ||
Power: |
20Kw to work 13Kw |
|
| ||
Applicable paper: |
Thin paper, cardboard, coated paper, gray cardboard, thick cardboard, etc. |
|
| ||
Applicable corrugated: |
High strength formal single A, B, E, F three, five etc. mounted paper Lenz |
|
1.3 Series Product Description:
1. This machine stations and body are all made by large processing center and complete in one time to ensure the accuracy of each station and equipment operation more stable.
2. Cardboard feed mechanism: Configuring high speed dedicated feeder head, regardless of thick or thin paper it can ensure the paper feed speed and smooth.
3. Cardboard lifts: In line with the high-speed feeder, equipped high strength worm reducer, to ensure the instant speed stability.
4. Cardboard loader: The E-type double-notch unique design, the production of paper can be pushed directly into the hand truck, shorten the stacking paper time and improve efficiency.
5. The end of the paper system: servo motor control system, high sensitivity, high speed, to ensure the smooth end of paper out of paper, no paper jams and other characteristics.
6. The end of paper adsorption system: Frequency jams and agility with the solenoid switch, to ensure that the end of paper completely adsorbed, and the operation is simple.
1.4More Photo

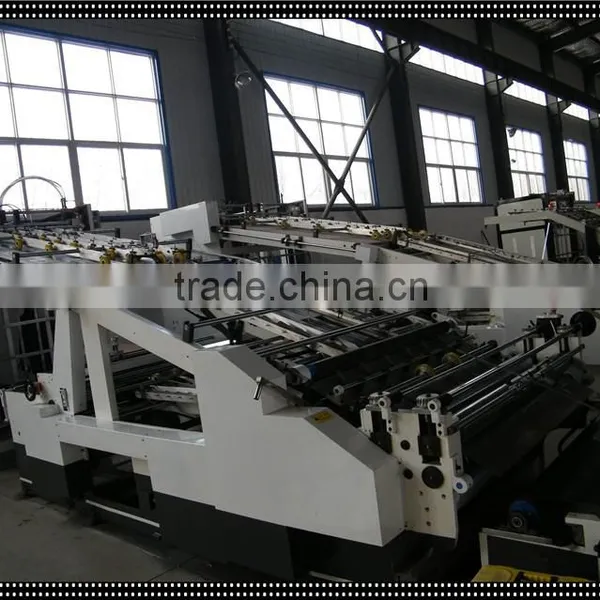

1.Back Photo

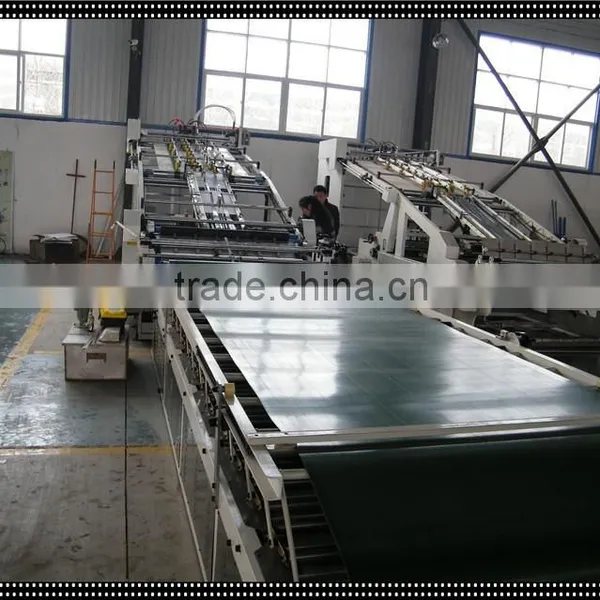

2.Belt Photo
Welcome to visit our factory!
