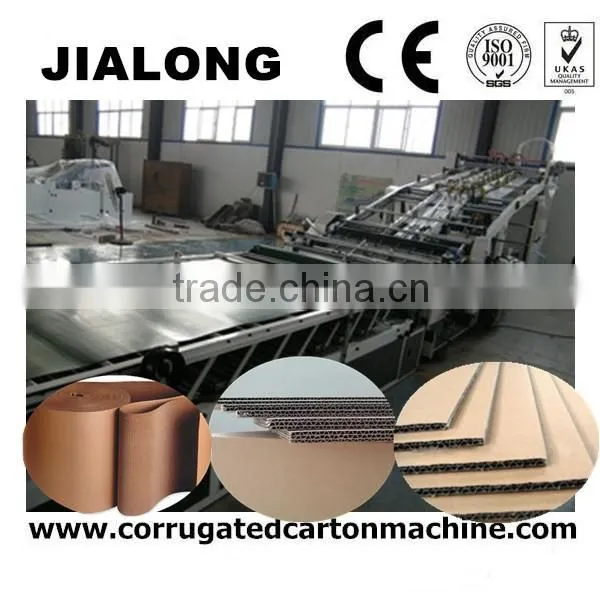

fully flute laminator machine for carton box machine
- 5 Carton / Cartons per Month
- tianjin
- T/T
- Single-ended carbon fiber heat lamps 500mm 800w infrared heat lamps
- 1300w 670mm far infrared heat lamp frosted carbon fiber heat lamps
- 220v 1300w 670mm infrared carbon fiber heating lamp frosted carbon fiber heat lamps
- 400mm 600w infrared quartz lamp replacement carbon fibre heating lamp
- 400mm 600w infrared quartz heating element carbon fiber quartz tubes
- 230v 1200w infrared paint lamp infrared carbon fiber heating lamp for DTF machines
Product Details
Condition: | New | Application: | Other, Medical, Textiles, Machinery & Hardware, Medical, Textiles | Packaging Type: | Film |
Packaging Material: | Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V | Power: | 6kw | Place of Origin: | Hebei, China |
Brand Name: | JIALONG | Model Number: | TM-1300 | Dimension(L*W*H): | 8800x1950x1500 |
Weight: | 3000kg | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

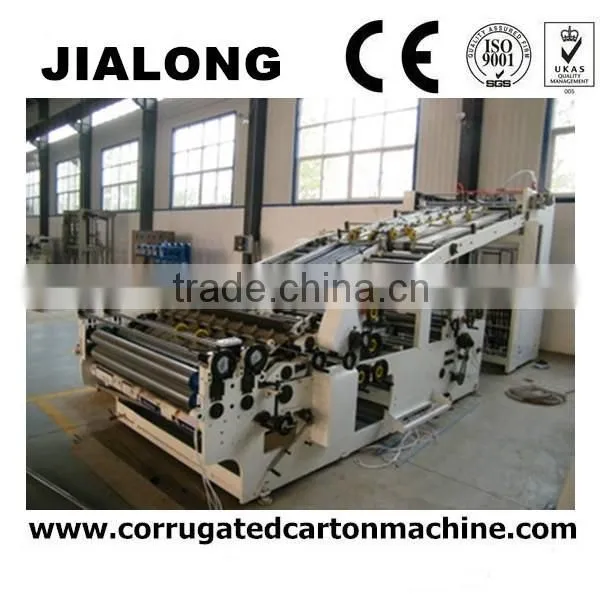

fully flute laminator machine for carton box machine
BZJ-1300/1600 high spped automatic laminating machine for cardboard with cardboard and flute with cardboard and flute with flute is mainly used for laminating cardboard with cardboard and cardboard with cardboard and flute with flute with perfect result and high speed.
- Planetary type driving system, power transmission evenly distributed, the whole machine use timing belt, easy maintenance, low noise, high efficiency.
- This series of products manufactured siding machine, full use of large-scale processing center to complete a process to ensure the accuracy of all holes to ensure equip-ment operation more stable.
- Tissues of the body take the paper: high-speed automatic configuration dedicated feeder head, whether thick or thin paper, take the paper to ensure the rapid and smooth.
- Tissues lifts: In line with the high-speed feeder, high-strength turbine gear, to ensure instant speed and stability.
- Tissue paper cutter sets: The unique design of E-type double-gap, the paper can be produced directly into the truck by hand, stacking paper to shorten time and improve efficiency.
- At the end of the paper system: servo motor control system, high sensitivity, fast, to ensure the smooth end of paper out of paper, not cardboard and so on.
- At the end of the paper adsorption system: the use of variable frequency control and agility with the U.S. importation of patented switching components to ensure complete adsorption of the end of the paper, and easy to operate.
- Glue wheel: thicker plating steel wheels, fine grinding surface, the amount of glue thickness can be adjusted t0 8g/m2 ensure uniform glue paper.
- Glue to add: The liquid level control, auto-added to ensure that glue, to ensure production be.
- Paper separation: for high-speed operation, the use of separation claws, making paper from glue laminated round after the effective detachment.
- Fitting positioning: positioning using differential mode, both sides have their own side of the block rules righting the paper to ensure high accuracy of fit.
- Transmission: The United States imported Gates belt drive, a drive to ensure precise, stable, low noise.
- Operating System: The Human Touch screen for the operations center, connected to the PLC, to warn, failure to detect abnormal conditions and the operating speed and other information is displayed on the screen at a glance, and can detect maintenance, work records, online real-time view, in time, and really efficient.
- Electrical System: The well-known brands, according to European CE standard design, careful manufacture, to ensure machine stability, high efficiency, low failure.
.
Model | ZFML-1300 | ZFML-1450 |
Max.Sheet(W*L) | 1300mm*700mm | 1450mm*1000mm |
Min.Sheet(W*L) | 500mm*300mm | 500mm*300mm |
Thickness of Bottom Paper | 300g~8mm | |
Face Pater | 150g~700g | |
Precision | 0.5mm( The standard flat paper) | |
Max.Speed | 8000p/h | |
Glue | RESIN GLUE, STARCH GLUE, PH6-8 | |
MachineWeight | 6500kg | |
Power Supply | 380VAC/3P | |
Power | 20kw | |
Pater Fit | THIN PAPER, CARDBOARD, ART PAPER, GRAY BOARD | |
Applicable Products | cardboard with cardboard, cardboard with flute | |
Flute | HIGH INTENSITY SINGLE FACE, A,B,E,F 3OR5 LAYERS FLUTE |
free training and installation

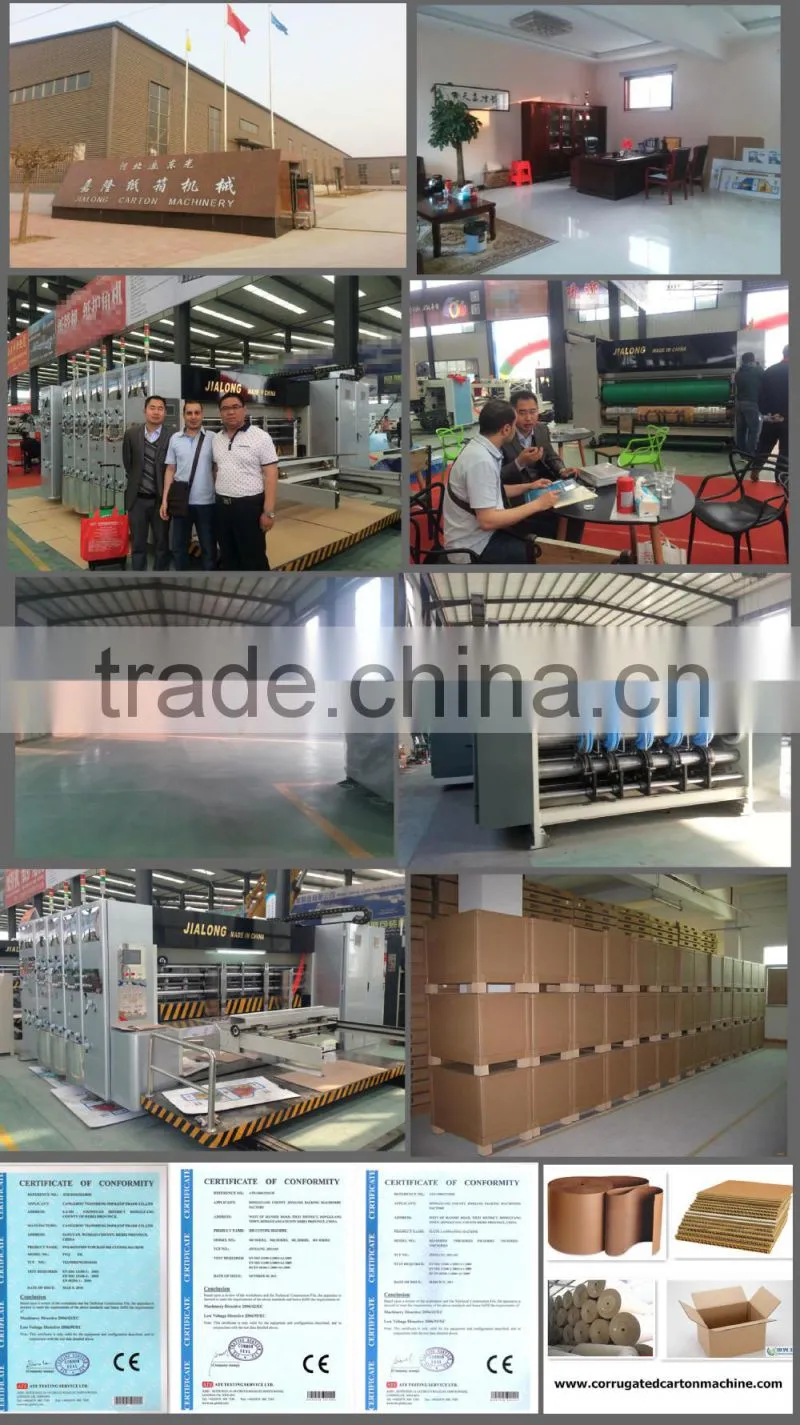

Company Information
