Hot Sale Release film
Specification:
1. Material: PET
2. Thickness: 0.023mm~0.25mm
3. Length: within 8000m per roll
4. Width: within 1.6m
5. Color: transparent, red, yellow, green, blue, white, black,etc.
6.Release force: 5-350g
7.Residue adhesive rate: ≥85
8. Coating: one or two sides silicone coating
Technical data:
Iterm | Unit | Measurement method | Typical value | |||||
SD02 | SD04 | SD06 | SD08 | SD10 | SD12 | |||
Thickness | um | ASTMD374 | 36-188 | 23-188 | 23-188 | 23-188 | 23-188 | 23-188 |
Haze | % | ASTMD1003 | 2-10 | 2-10 | 2-6 | 8-10 | 2-10 | 2-10 |
Peel Strength | g/inch | TESA 7475 TAPE (300mm/min 180°) | 12-120 | 4-66 | 5-40 | 4-66 | 8-20 | 5-40 |
Residue Adhesive Rate | % | NITTO 31B TAPE | ≥85 | 85-97 | 97 | 85-97 | ≥95 | 97 |
Surface Wetting Tension | Dynes |
|
| 19-40 |
| |||
Peel Strength can be adjusted according to customer’s requirements
(differential release force, one or two sides silicone coating)
Features:
1. stable release force
2. high light transmission
3. low thermal shrinkage
4. anti-static treated
5. smooth surface
6. no coating traces
7. easy to release
Application:
Silicone coated PET film release film is widely used in industrial fields like Electrical & Electronics, label and adhesive tape manufacturing & converting, MLCC etc..
Advantages:
1. clean workshop (10,000 Level dust-proof workshop)
2. excellent quality and prompt delivery with reasonable price
3. certificated by I S O 9 0 0 1, S G S and PONY testing.
4. product specification such as release force, thickness and color can be customized .
5. free samples are available

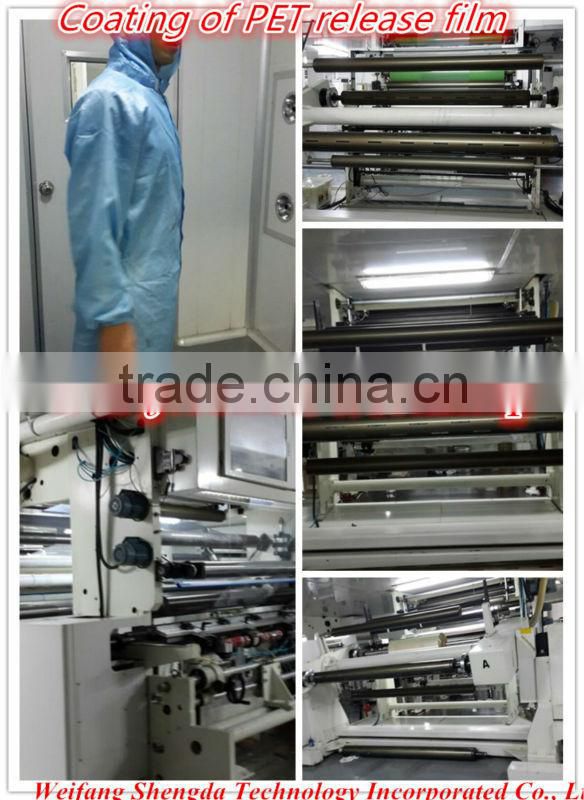

Picture of 10,000 Level dust-proof workshop:
Package:
1. Packing tightly and firmly
2. PP packing belt, protective film, plywood at the end, wooden/polywood pallet
3. 4 rollers per pallet

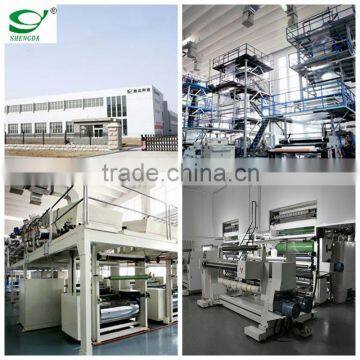

Certificate for our products/factory:
The quality of all the products are controled by our rigorous and responsible quality inspectors.
We have TEN quality inspectors in total now.
