JL-1 High Speed Automatic Flute Laminator Machine

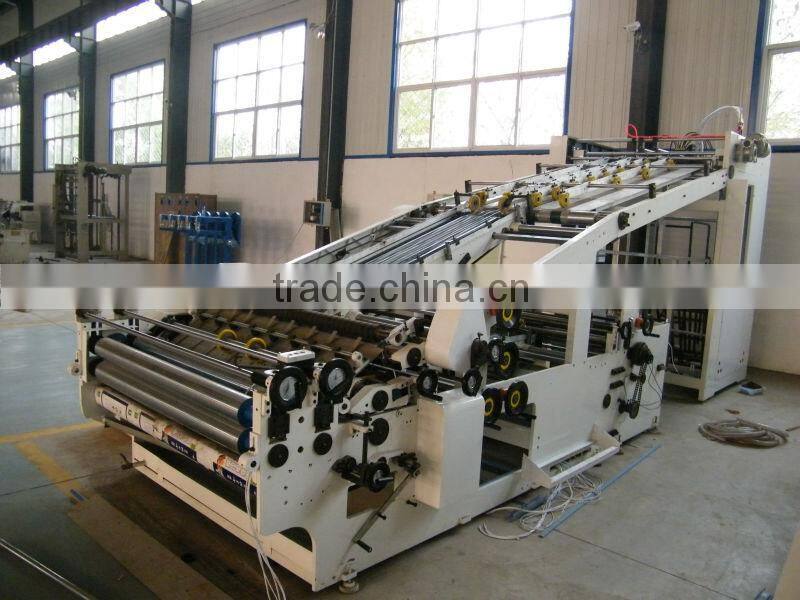

JL-1 High Speed Automatic Flute Laminator Machine photo-1

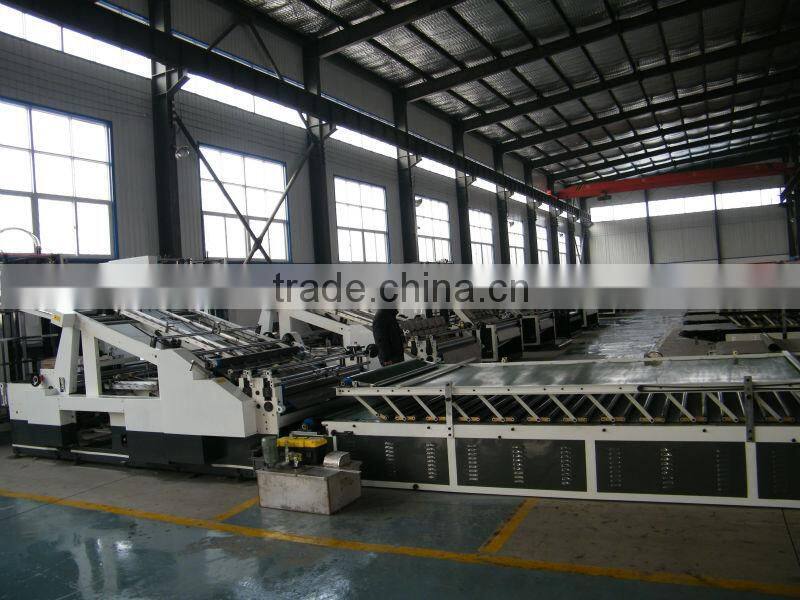

JL-1 High Speed Automatic Flute Laminator Machine photo-2
JL-1 High Speed Automatic Flute Laminator Machine photo-3
JL-1 High Speed Automatic Flute Laminator Machine photo-4
JL-1 High Speed Automatic Flute Laminator Machine photo-5
US$ 19,000 - 19,000 MOQ: 1 Carton
Key Specifications
Get Latest Price
Condition:
New
Function:
Laminating
Application:
Beverage, Food, Other, Beverage, Food, Machinery & Hardware
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Function Laminating
Application Beverage, Food, Other, Beverage, Food, Machinery & Hardware
Packaging Type Film
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power 12KW
Place of Origin Hebei, China
Brand Name jialong
Model Number JL-1
Dimension(L*W*H) 1300x1100x1250
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas



1.1 OverviewJL-1 High Speed Automatic Flute Laminator Machine

This machine is designed for preompliance with regulations chase block positioner fit, side road in regulation for fixed positioning control precision fit, and the use of variable speed so that its structure is simple, easy to operate. Suitable for corrugated paper and cardboard, the cardboard and cardboard, make cardboard more striking, beautiful, high-intensity, high-quality paperboard production of new equipment. Widely used in food, wine, home appliances, light industrial products packaging.



1.2. The main technical parameters



Machine Model:

FM1307

FM1310



Maximum paper:

Width 1300mm×length 700mm

Width 1300mm×length1000mm



Minimum paper:

Width 500mm×length 300mm

Width 500mm×length 300mm



Down paper thickness:

300g-8mm thickness

300g-8mm thickness



Surface paper thickness:

150g-700g

150g-700g



Maximum speed:

10000 pcs/h

7800pcs/h



Fitting accuracy:

±0.5mm (standard flat paper)



Apply glue:

resin glue, starch paper jam glue, etc. (PH6-8 use bonding glue)



Weight:

6500Kg



Power supply:

380VAC/3P



Power:

20Kw to work 13Kw



Applicable paper:

Thin paper, cardboard, coated paper, gray cardboard, thick cardboard, etc.



Applicable corrugated:

High strength formal single A, B, E, F three, five etc. mounted paper Lenz

  1.3 Series Product Description:

   1. This machine stations and body are all made by large processing center and complete in one time to ensure the accuracy of each station and equipment operation more stable.

   2. Cardboard feed mechanism: Configuring high speed dedicated feeder head, regardless of thick or thin paper it can ensure the paper feed speed and smooth.

   3. Cardboard lifts: In line with the high-speed feeder, equipped high strength worm reducer, to ensure the instant speed stability.

   4. Cardboard loader: The E-type double-notch unique design, the production of paper can be pushed directly into the hand truck, shorten the stacking paper time and improve efficiency.

   5. The end of the paper system: servo motor control system, high sensitivity, high speed, to ensure the smooth end of paper out of paper, no paper jams and other characteristics.

   6. The end of paper adsorption system: Frequency jams and agility with the solenoid switch, to ensure that the end of paper completely adsorbed, and the operation is simple.

   1.4More Photo

1.Back Photo

JL-1 High Speed Automatic Flute Laminator Machine



2.Belt Photo





 JL-1 High Speed Automatic Flute Laminator MachineJL-1 High Speed Automatic Flute Laminator Machine



Company Information

Jialong Packaging Machinery Co.,Ltd  is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of corrugated cardboard production line, automatic flexo ink printing slotting die cutting machine, semi-autoatic flexo ink printing slotting machine,auto rotary die cutting machine ,single facer corrugator machine, flute laminating machine, automatic carton folder gluer machine,carton stitching machine, slotting machine, thin blade slitter scorer machine, egg tray making machine, paper edge protector making machine, paper tube core making machine and other relevant packaging machinery.

Many years before, our company considers “Quality is first, Honesty is root” as our principal, to meet customers’ demand is our target. We can supply from machine design to after-sale all service with high quality and professional technique.

We would like to cooperate with friend from every countries sincerely, and we will work hard to create the future of package together

JL-1 High Speed Automatic Flute Laminator Machine





Our Services

After Sales Service
We deeply know that, excellent and effcient after-sales service is an indispensable part for clients to achieve due benefits. To offer most favourable and satisfactory service for wide clients, we hereby solemnly promise:
fessional technicians will be assigned to client's site to give guidance in equipment installation and commissioning and hole training class for operators;we also offer charge-free training in our company for operators and maintenance personnel if requsted by clients.
2.The equipments will be delivered accompanied with detailed installation and operation manual and related information. Upon client's request,we can also offer plant layout design by free of charge.
3.All the equipments are offered with one year quality warranty. within the warranty period, maintenance of equipment and replacement of wearing parts are charge-free.Affer the guarantee is expired, we offer long-term maintenance service and supply of parts and components at cost price. Clinets Complaint: A speacias round-clock fax will receive your complaints seriously. We will response within 24 to 48 hours affer receiving your complaints by phone call or going to site.
