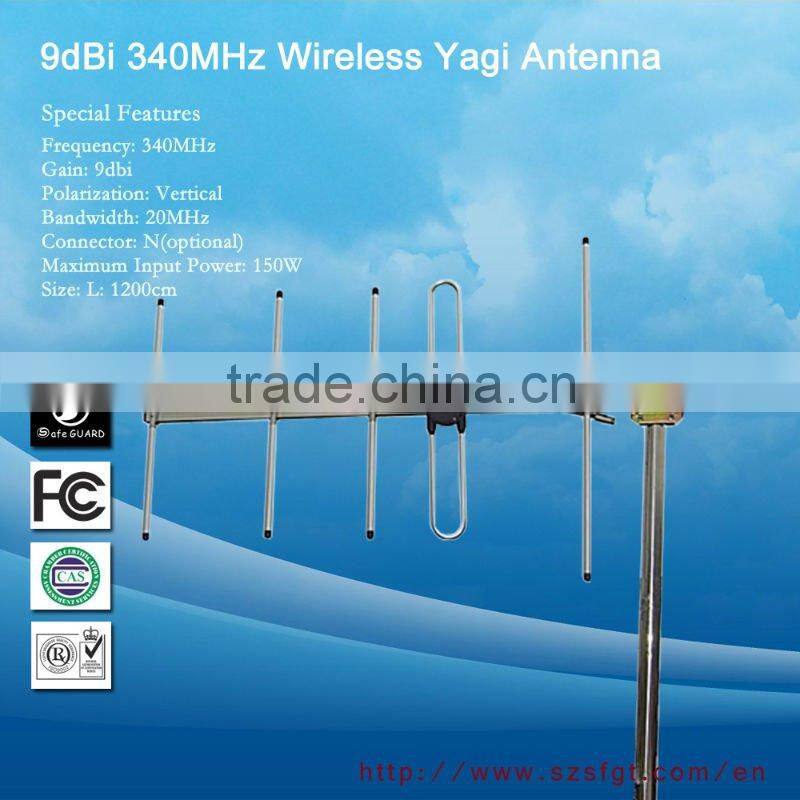

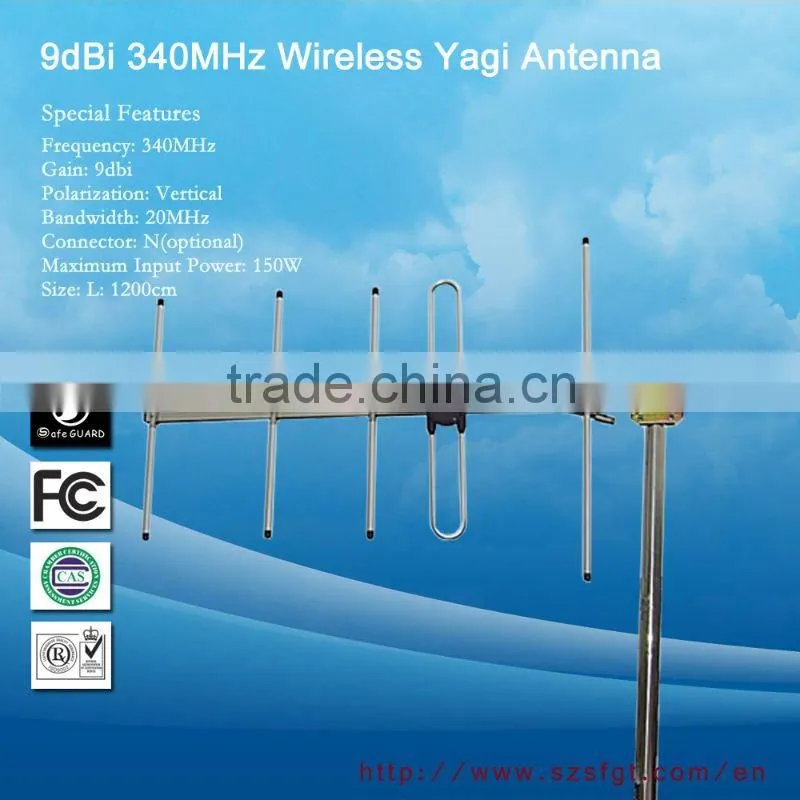

Help Center380MHz 9dBi Yagi Antenna
Related Products
-
8dBi Panel Wireless Directional AntennaNegotiableMOQ: 1 Piece -
1.2G High-gain Directional Panel AntennaNegotiableMOQ: 1 Set
-
2.4G 24dBi Grid Antenna SG-GR240024NegotiableMOQ: 1 Piece
-
Manual Lifter Pole for Outdoor Antenna InstallationNegotiableMOQ: 10 Sets
-
Extened Manual Vertical Lifting Lever for AntennaUS$ 1,420 - 1,420MOQ: 10 Sets
Specifications
1)Frequency: 3402) Bandwidth: 20MHz
3) Gain:9dBi
4) Maximum Input Power: 150W
5) Size:1.2m
DATA Index
Specification |
Model: SG-YA340U5 |
Frequency Range-MHz |
340±10 |
Bandwidth-MHz |
20 |
Gain-dBi |
9 |
Beamwidth-° |
53 |
F/B ratio-dB |
14 |
VSWR |
≤1.5 |
Polarization |
Vertical |
Max Power-W |
150 |
Nominal Impedance-Ω |
50 |
Connector |
N(optional) |
Antenna Dimension-m |
1.2 |
Weight (kg) |
2.0 |
Work Temperature-°C |
-30~60 |
Rated Wind Velocity-m/s |
60 |
Explain |
5 Units |
Antenna Erection
1 Fix the wave director and the oscillator in a counterpoint ( please take notice that the drain hole of oscillator should be downward).
2 Erect the antennas to the pole with clamp according to polarization required.
3 Connect the RF cables well, and wrap up the connector with waterproof adhesive tape, and do not let the cable flutter in the wind.
4 Make a shield for protection the water back into the home before RF cables were acrossed indoor.
