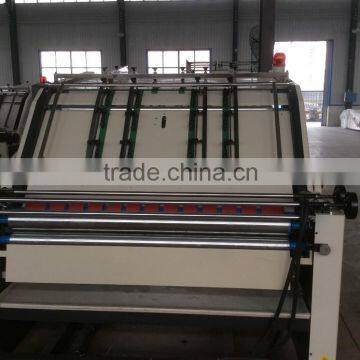

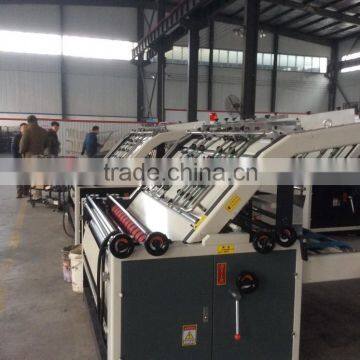

JL-1 Semi-automatic Flute Corrugated Board Paper Laminating Machine
FM Series Semi-automatic Flute laminator, corrugated Board Paper Laminating Machine
This paper laminator is with humanity design of automatic feeding for bottom sheet that makes feeding easier. Several feeding positions are available; feeding can be either from the top or from the side. This machine has features as easy for operation, convenient for maintenance, low noise, high speed and high precision, etc . Suitable for lamination of corrugated paper to cardboard, and cardboard to cardboard, adopting automatic feeder for the feeding of bottom sheet, the right side for feeding of face sheet, front positioning gauge for lamination precision, stepless speed control, with attractive and nice appearance, easy for cleaning and with high lamination precision, it is the new equipment for producing of high quality laminated cardboard, the laminated cardboard is much more striking, attractive and with a high strength, widely for the packaging of food, wine products, household appliances and light industrial products.
Main Specifications:
| Model | FM-1300 | FM-1450 | FM-1600 |
| Max sheet size(mm) | 1300*1200 | 1450*1200 | 1600*1200 |
| Min sheet size(mm) | 350*350 | 350*350 | 350*350 |
| Speed(m/min) | 0-90 | 0-90 | 0-90 |
| Total power(kw) | 7 | 7.8 | 7.8 |
Measurement(mm) | 7100*1850*1250 | 7100*2000*1250 | 7100*2100*1250 |

Jialong Packaging Machinery Co.,Ltd is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of corrugated cardboard production line, automatic flexo ink printing slotting die cutting machine, semi-autoatic flexo ink printing slotting machine,auto rotary die cutting machine ,single facer corrugator machine, flute laminating machine, automatic carton folder gluer machine,carton stitching machine, slotting machine, thin blade slitter scorer machine, egg tray making machine, paper edge protector making machine, paper tube core making machine and other relevant packaging machinery.
Many years before, our company considers “Quality is first, Honesty is root” as our principal, to meet customers’ demand is our target. We can supply from machine design to after-sale all service with high quality and professional technique.
We would like to cooperate with friend from every countries sincerely, and we will work hard to create the future of package together

After Sales Service
We deeply know that, excellent and effcient after-sales service is an indispensable part for clients to achieve due benefits. To offer most favourable and satisfactory service for wide clients, we hereby solemnly promise:
fessional technicians will be assigned to client's site to give guidance in equipment installation and commissioning and hole training class for operators;we also offer charge-free training in our company for operators and maintenance personnel if requsted by clients.
2.The equipments will be delivered accompanied with detailed installation and operation manual and related information. Upon client's request,we can also offer plant layout design by free of charge.
3.All the equipments are offered with one year quality warranty. within the warranty period, maintenance of equipment and replacement of wearing parts are charge-free.Affer the guarantee is expired, we offer long-term maintenance service and supply of parts and components at cost price. Clinets Complaint: A speacias round-clock fax will receive your complaints seriously. We will response within 24 to 48 hours affer receiving your complaints by phone call or going to site.
