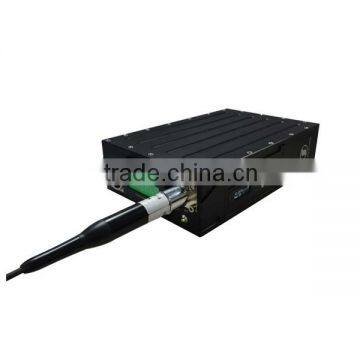

Product Description for TDD-COFDM 2.4ghz lightbridge mobile ethernet cofdm transceiver
Model: SG-TDD20
TDD-COFDM is our new NLOS(non-line of sight) two-way data transmission system and wireless mobile emergency communication private network, which is independent of telecom operators wireless network. Its confidentiality, security, mobile performance that is better than Telecom operators. Also is a fully transparent data encryption transmission emergency security network.
Main Feature for TDD-COFDM 2.4ghz lightbridge mobile ethernet cofdm transceiver
+ Support protocol PTP &PMD network technology;
+ Support non-line of sight(NLOS) high speed mobile transmission
+ Bit rate can up to 921600bps;
+ AES 128-bit encryption, and also customer manually customize the secret key.
+ Standard RJ45 Ethernet and RS485/RS485/RS422 data interfaces;
+ Built in with small LCD screen that shows the signal working status.
+ Available frequency: 330-430MHz/ 430-530MHz, or 2.4GHz (option).
Product Parameters for TDD-COFDM 2.4ghz lightbridge mobile ethernet cofdm transceiver
About our specification:
1. Advancement: TDD-COFDM channel modulation technology, support fast-moving, ultra-wide band, and fully transparent transmission.
2. Security: private network, private communication transport protocol, sole synchronization code and AES encryption.
3. Flexibility: transparent transmission of IP data channel, supports multi-user access.
4. Scalability: all-digital network, is compatible with all IP data transmission equipment.
5.Technical performance:
- Multi-frequency network base stations, single base station same frequency network, the same frequency network with bidirectional communication, high spectrum efficiency;
- Flexible allocation of channel resources to achieve PTP, PTMT and multipoint-to-multipoint two-way communication;
- Multiple channel bandwidth and a variety of modulation mode function;
- Flexible TDD slot allocation model to meet a single-frequency but multi-user access, not only save the spectrum but also to reduce power consumption;
- Spectrum sensing, perception slot, upstream bandwidth sensing function;
- Strong diffraction ability and anti-multipath capability
- High-sensitivity receiver. When receive level is -110dBm, can still ensure BER <10E-5 and frame error rate <1%. Powerful error correction capability;
- Low PAPR, high power amplifier efficiency, low power consumption;
- Can transmit video audio and etc signals synchronous,high speed.Velocity >600km/h.
- Digital signal processing, a strong system of confidentiality, stability and reliability.
As its Miniature volume, precision design, lightweight and easy to carry, suitable used in short distance and long range air high speed wireless video data transmission purposes. Such as UAV, rotorcraft, micro UAV, drone,UGV, unmanned powered parachute, unmanned underwater vehicles boats, Fire-fighting robot,unmanned ship, airship, USV, high iron, EMU, unmanned vehicles, unmanned vehicle and etc..data transmission.
Our Service for TDD-COFDM 2.4ghz lightbridge mobile ethernet cofdm transceiver
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifelong maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufactory in wireless microwave transmission area for over 17 years, we are the source.
