Half-duplex Wireless Data Transceiver

SG-303

RS485/RS232 Half-duplex Wireless Data Transmitter/Receiver Modem

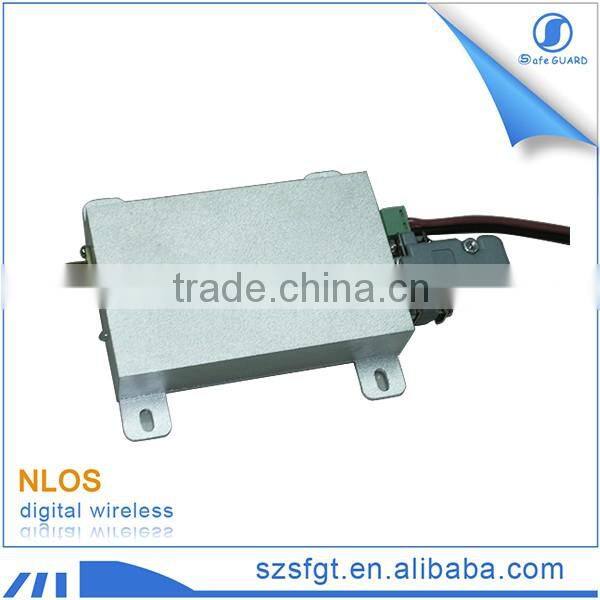

SG-303 wireless data transmission radio, is a long-distance wireless data transmission products.Its advantages of small size, metal shell, good shielding performance, strong anti interference, the internal use of integrated amplifier,TCXO reliability device and a built-in watchdog that ensure its good stability and high reliability. Half duplex communication working mode which is more convenient for the user to provide two-way data signal transmission and detection and control functions. The Send and receive time less than 50ms and timeliness. Suitable for wireless data acquisition, industrial control, the measurement and control of the oil field, watermark monitoring important industry.



Features:

1) Power and sensitivity:

  Radio frequency output power is more than 5W,

  high receiving sensitivity -120dbm (1200bps);

                                          -117dbm(2400bps,

                                          -105dbm(9600bps)

2). Multiple frequency,to meet various customers' needs

Carrier frequency can be  220-220 MHZ, 450-470 MHZ.

<![if !supportLists]>3) <![endif]>The transmission distance

4) High speed wireless communications and data buffer.

Air rate is greater than or equal to a serial port rate can continuous transmission infinite data, when the air rate is less than or equal to a serial port rate, temporary storage buffer then transfer.

5) transparent transmission, convenience for the user.

Radio after receiving the data needs to be sent, launch will start automatically without user to send and receive control.

6) Low power consumption

Receiving current < 60 mA, emission current < 1.5 A, hibernation current < 1 ma.

7) High reliability, small volume, light weight.

Aluminum alloy shielding enclosure, small size: 85 mm x 58 mm x 16 mm.





Connection:



The definitions and connection methods with terminals are shown in the following

RS485/RS232 Half-duplex Wireless Data Transmitter/Receiver Modem





name

Description

level

remark

1

GND

GND

5V



2

A(TXD)

RS-485 A or TXD of RS-232





3

B(RXD)

RS-485 B or RXD of RS-232





4

NC







5

DGND

DGND





6

RXD/TTL

Data receive(TTL level)

TTL



  7

TXD/TTL

Data transmit(TTL level)

TTL



8

--

--





9

Test

Internal test









Specification:

Frequency: 230MHz/400MHz/420MHz/450MHz
Frequency stability: ±2.5ppm;
Working mode:Half-duplex
Channel spacing: 25  kHz;
Bit rate:1200/2400/4800/9600/19200bps (option)
Channel rate:1200/2400bps  (option)
Transceiver conversion time:<50ms
Receiving sensibility: -117dBm(2400bps)
Working temperature:-40~+80℃; (industrial grade)
Working humidity:10% ~ 90% relative humidity, no condensation
Data format:8E1/8N1/801(other format also available,for example:9 data bits)
Power supply: DC12V(can also custom made according to your request).
Transmission distance: 12Km(matched with magnetic antenna in open air,1.5m length)
Dimension: 85x58x16mm (without radiator);


Receiver technical index:

Receiving sensibility: ≤0.25μV ( 12dB SINAD)
Adjacent channel selectivity: ≥70dB
Intermodulation suppression: ≥65dB
Spurious and image rejection: ≥70dB
Audio output power : 0.5W(8Ω,10% distortion)
Receive distortion:≤3%
Receiver current:≤ 50mA
Dimension:85x58x16mm

Transmitter technical index:

Transmit output power: 5W
Transmit current:<1.5A
Sleep current: <1mA
Clutter and images rejection: ≥70dB
Spurious Response: ≥70dB
Modulation frequency offset:≤3%
Modulation distortion:5mV
Modulation sensibility:≤300mA
Size: 85x58x16mm
