High Bay Led Lamp With CREE & Meanwell Chip on Board 100W

High Bay Led Lamp With CREE & Meanwell Chip on Board 100W thumbnail-1
High Bay Led Lamp With CREE & Meanwell Chip on Board 100W photo-1
US$ 148.75 - 289.75 MOQ: 1 Unit
Key Specifications
Get Latest Price
LED Light Source:
CREE XML
Warranty(Years):
3
Input Voltage(V):
85-265V
Contact Supplier Request Quote Chat Now
Shenzhen Heguang Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source CREE XML
Warranty(Years) 3
Input Voltage(V) 85-265V
Lamp Power(W) 100
Lamp Luminous Flux(lm) 9000
Lamp Luminous Efficiency(lm/w) 90
Color Temperature(CCT) Pure White
Working Temperature(℃) 25, 55
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP65
Certification CE, EMC, FCC
Place of Origin Guangdong, China
Brand Name Heguang Lighting
Model Number HG-HB-100W

Specifications

1. Cree XML LED chip
2. Meanwell driver
3. IP65 waterproof
4. 85~265V ac
5. CE, RoHS, FCC

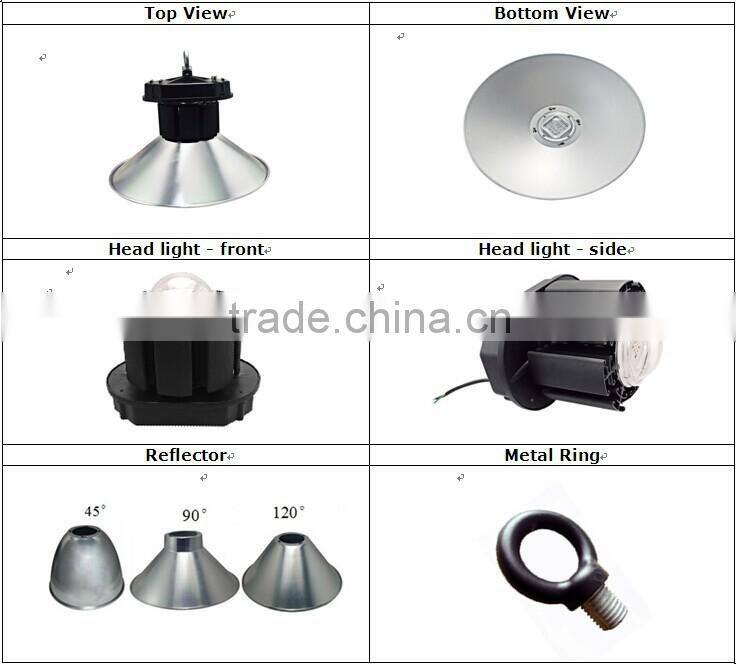

LED High Bay Light CREE & Meanwell

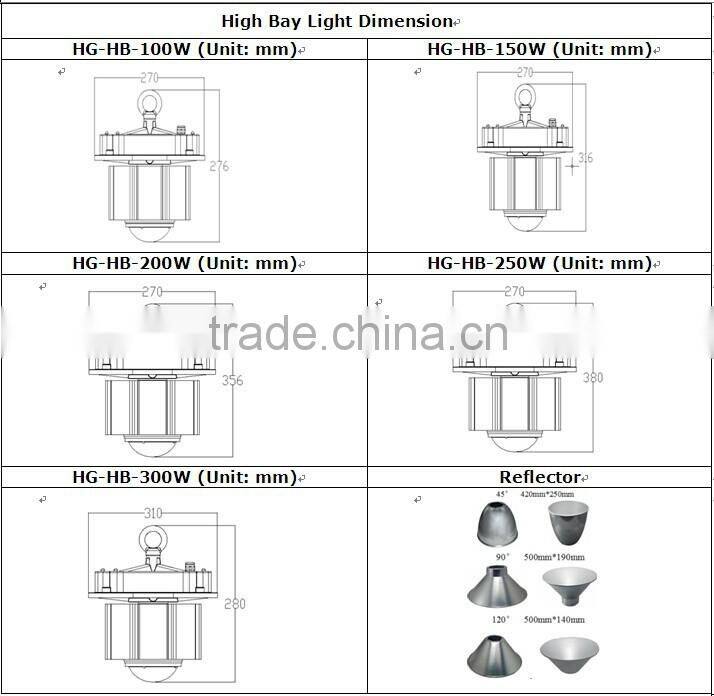

Dimension :



high bay led lamp with CREE & Meanwell chip on board 100W



Features:



l           Private tooling/mould, unique design with good heat sink.

l         Aluminium body + copper pipe

l         CREE LED CHIP

l         MEANWELL Driver

l         IP Rating: IP65

l         Voltage:85-265 AC

l         Frequency: 50/60HZ

l         Beam angle: 45° / 90°/120°

l         Life span >50,000 hours

l         Overcurrent protection

l         Energy saving, environment friendly





Specification

Parameter

Model No.

HG-HB-100W

HG-HB-150W

LED Qty.

14 pcs Cree XML LED

22 pcs Cree XML LED

Input Voltage

85-265V AC

85-265V AC

Input Frequency

50/60 Hz

50/60 Hz

Output current

3.5 A

5.2 A

Power

100±0.5% W

150±0.5% W

Power Factor

>0.9

>0.9

Luminous flux

9000±10% lm

13500±10% lm

Working

temperature

-10-50℃

-10-50℃

  Color

temperature

p.w.6000~7000k

w.w.:3000-3200k

 n.w.4000~4500k

p.w.6000~7000k

w.w.:3000-3200k

 n.w.4000~4500k

Dimension

270×267 mm

270×316 mm

Constant driver

yes

yes

IP rate

IP65

IP65

overcurrent protection

Yes

yes

Inner Packing

325*275*275 mm

365*275*275 mm

Carton Qty.

4 pcs

4 pcs

Carton Dimension

350*570*570 mm

390*570*570 mm

G.W.

25 kg

28 kg







Specification

Parameter



Model No.

HG-HB-200W

HG-HB-250W

HG-HB-300W

LED Qty.

30 pcs Cree XML LED

33 pcs Cree XML LED

44 pcs Cree XML LED

Input Voltage

85-265V AC

85-265V AC

85-265V AC

Input Frequency

50/60 Hz

50/60 Hz

50/60 Hz

Output current

7 A

8.4 A

10.5 A

             Power

200±0.5% W

250±0.5% W

300±0.5% W

       Power Factor

>0.9

>0.9

>0.9

Luminous flux

18000±10% lm

21600±10% lm

27000±10% lm

Working

temperature

-10-50℃

-10-50℃

-10-50℃

  Color

temperature

p.w.6000~7000k

w.w.:3000-3200k

 n.w.4000~4500k

p.w.6000~7000k

w.w.:3000-3200k

 n.w.4000~4500k

p.w.6000~7000k

w.w.:3000-3200k

 n.w.4000~4500k

Dimension

270×267 mm

270×316 mm

270×316 mm

Constant driver

yes

yes

yes

IP rate

IP65

IP65

IP65

overcurrent protection

Yes

yes

yes

Inner Packing

405*275*275 mm

440*275*275 mm

465*365*485 mm

Carton Qty.

2 pcs

2 pcs

1 pcs

    Carton Dimension

430*570*300 mm

465*570*300 mm

465*365*485 mm

              G.W.

20 KG

23 KG

15 KG





high bay led lamp with CREE & Meanwell chip on board 100W



Installation Instruction:

  1.  A single lamp should be installed in more than 30-40 kg load beams or ceiling.
  2.  The product is heavy, fastening it after installation for terminal operation.
  3.   Lamp must be installed by professional electrician, red/brown wire is live wire, blue/black wire is neutral wire, yellow/green wire is ground wire.
  4.  Shut off the power before installation, make specified driver input connected to grid(85-265 AC), live wire, neutral wire and ground wire to corresponding connection. If outdoor installation, has to be water-proof.
  5.  The lamp body heat is working properly in cooling phenomenon, the lamp need air circulation around, any object blocking is not allowed.
  6.  Make sure read the instruction before use.


Installation Steps.

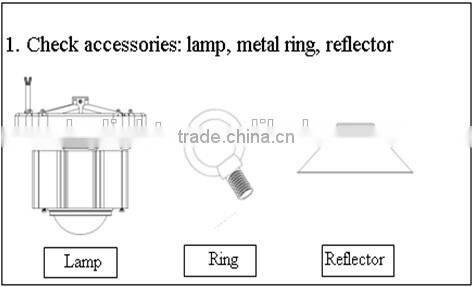

Step 1: check accessories.





high bay led lamp with CREE & Meanwell chip on board 100W

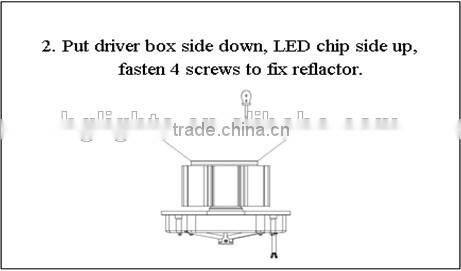

Step 2: Assemble reflector.



high bay led lamp with CREE & Meanwell chip on board 100W

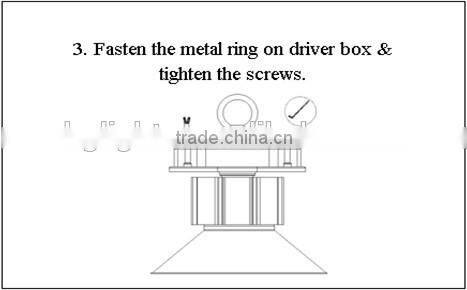

Step 3: Fasten Metal Ring



high bay led lamp with CREE & Meanwell chip on board 100W

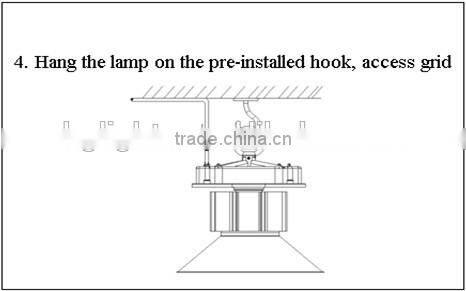

Step 4. Hang the lamp on the pre-installed hook, access grid



high bay led lamp with CREE & Meanwell chip on board 100W

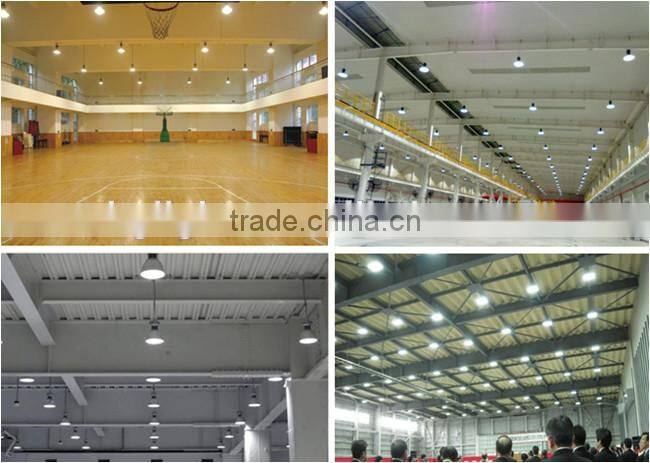

Application :



industrial and mining enterprises, the oil industry, chemical plant, workshop, warehouse,

highway toll stations, gas stations, supermarkets, exhibition halls



high bay led lamp with CREE & Meanwell chip on board 100W





high bay led lamp with CREE & Meanwell chip on board 100W
