Specifications
LED Wall WasherBody: aluminum+tempered glass cover
DX512 control methods
RGB control synchronization
Constant driver
24W High Power Linear LED Wall Washer Light with IP65 Waterproof
Led wall washer specification
Specification |
Parameter |
|
Model No. |
HG-WW-36X1W |
|
LED Qty |
36pcs High power LED |
|
Input Voltage |
DC 24V |
|
Input Frequence |
50/60 Hz |
|
Power |
38±1.5 W |
|
Luminous flux |
White: 2200-2600lm±10% |
|
Working temperature |
-10-60℃ |
|
Color temperature |
p.w.-6000~7000k w.w.:3000-3500k c.w.-8000~12000k |
|
Wave Length |
R:620-630 G:515-525 B:460-470K/nm |
|
Dimension |
1028×90×128mm |
|
Lighting Distance |
8-20m |
|
Constant driver |
yes |
|
IP rate(w/housing) |
IP65 |
|
Constant driver & overcurrent protection |
yes |
|
Packing |
4 pcs in 1090×270×290mm ctn N.G:16.8 kgs |
|
RGB wall washer features
1. LED wall washer series is linear type design,for symmetrical lighting.Fluent RGB patterns can be lighted up high buildings or as a decoration for wall both indoor and outdoor.
2. The main body is thickened type aluminum with temoered glass cover.Sealed by silicone ring,then fixed by screws. Surface is anodic oxidation finish (silvery grey) which make the light can work in outdoor (rainy and multiple weather..And it is easy to install.
3. High power LED as light source,with chip from Epistar,Epileds and Bridelux
4. Constant driver to make sure LED light working stably,with LED display and buttons to control RGB color
5.Voltage:DC 24V, Frequency: 50/60HZ
6. Color: RGB,or single color – white, red, green, blue, yellow
7.Beam angle: 15°/30°/45°/60°
8. Life span 50000 hours
9. Over current protection
Outdoor wall washer application: Tower Bridge High building Garden

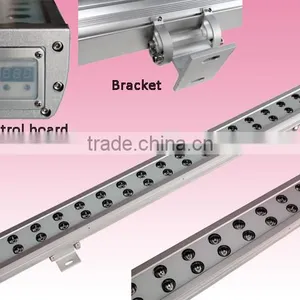

Led wall washer detailes images
| TOP VIEW | FRONT VIEW |
|
|
| LIGHTING VIEW | BACK VIEW |
|
|
| CONTROL BOARD | DIMENSION DIAGRAM |
|
|
