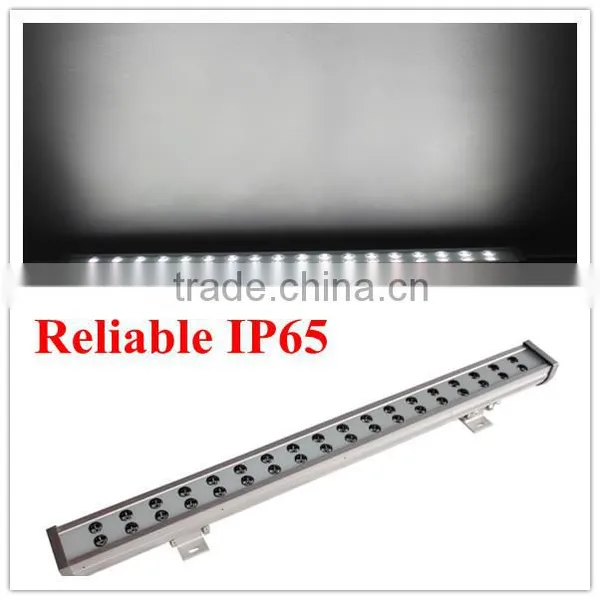

3000k / 6000k 6063 Aluminum + Tempered Glass LED Wall Washer Light From Manufacturer in China

Name: 3000k / 6000k 6063 Aluminum + Tempered Glass LED Wall Washer Light From Manufacturer in China
Brand: Heguang Lighting
SKU: 123772519

3000k / 6000k 6063 Aluminum + Tempered Glass LED Wall Washer Light From Manufacturer in China thumbnail-1

3000k / 6000k 6063 Aluminum + Tempered Glass LED Wall Washer Light From Manufacturer in China photo-1

US$ 39.9 - 79.9 MOQ: 4 Pieces

Key Specifications

Get Latest Price

LED Light Source:

Epistar / Bridgelux

Warranty(Year):

Input Voltage(V):

24V DC / 85~265V AC

Contact Supplier Request Quote Chat Now

Shenzhen Heguang Lighting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source Epistar / Bridgelux

Warranty(Year) 2

Input Voltage(V) 24V DC / 85~265V AC

Lamp Power(W) 36

Lamp Luminous Flux(lm) 2500

Lamp Luminous Efficiency(lm/w) 80

Color Temperature(CCT) Pure White

Working Temperature(℃) 25, 45

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP65

Certification CE, EMC, LVD

Place of Origin Guangdong, China

Brand Name Heguang Lighting

Model Number HG-WW-36*3W

led outdoor wall washer rgb light DMX512

wall washer LED light DMX512 control aluminum body good heat dissipation

NEW !!! LED wall washer flash light 24V DC

Parameters:

Specification	Parameter
Model No.	HG-WW-18X1W	HG-WW-18X3W
Input Voltage	DC24V / AC 85~265V	DC24V / AC 85~265V
Input Frequence	50/60 Hz	50/60 Hz
Power	19±1W	35±1.5W
Luminous flux	White: 1300~1500lm(±10%)	White: 1700-1900lm(±10%)
Color temperature	p.w. 6000~7000k w.w.:3000-3500k c.w.8000~12000k	p.w. 6000~7000k w.w.:3000-3500k c.w.8000~12000k
Dimension	1028×78×138mm	1028×78×138mm
Lighting Distance	8-15m	8-15m
Constant driver	yes	yes
IP rating	IP65	IP65
Constant driver & overcurrent protection	yes	yes
Packing	4pcs in 1050x250x210 ctn N.G: 17.2KG	4pcs in 1050x250x210 ctn N.G: 17.2KG

Specification	Parameter
Model No.	HG-WW-24X1W	HG-WW-36X1W	HG-WW-36X3W
Input Voltage	DC24V (RGB) / AC 85~265V (single color)	DC24V (RGB) / AC 85~265V (single color)	DC24V (RGB) / AC 85~265V (single color)
Input Frequence	50/60 Hz	50/60 Hz	50/60 Hz
Power	26±1 W	38±1.5 W	65±2 W
Luminous flux	White: 1500-1700lm±10%	White: 2200-2600lm±10%	White: 3000-3400lm±10%
Color temperature	p.w. 6000~7000k w.w.:3000-3500k c.w.8000~12000k	p.w. 6000~7000k w.w.:3000-3500k c.w.8000~12000k	p.w. 6000~7000k w.w.:3000-3500k c.w.8000~12000k
Wave Length	R:620-630 G:515-525 B:460-470K/nm	R:620-630 G:515-525 B:460-470K/nm	R:620-630 G:515-525 B:460-470K/nm
Dimension	1028×90×128mm	1028×90×128mm	1028×90×128mm
Lighting Distance	8-15m	8-15m	8-15m
Constant driver	yes	yes	yes
IP rate(w/housing)	IP65	IP65	IP65
Constant driver & overcurrent protection	yes	yes	yes
Packing	4 pcs in 1050x250x210cm ctn N.G:17.28 kgs	4 pcs in 1050x250x210cm ctn N.G:20.8 kgs	4 pcs in 1050x250x210cm ctn N.G:20.8 kgs

Advantages:

1. 80%~90% energy saving than incandescent lamp

2. No flickering, No RF interference ,No UV radiation

3. Lower consumption,good heat dissipation

4. Anti-corrosion

5. Body termerature less than 60 °C

6. Superbright and low lumen attenuation

7. Easy installation, maintenance free

Trade Terms:

1.Price terms:FOB Shenzhen / EXW

2.Payment terms: T/T or western union. 30% deposit and 70% balance before shipment.

3.MOQ:1-10pcs

4.Warranty:24months.

Applications:

1.Tunnel, Subway, Underground Lighting;
2.Gymnasium, Sports Stadium Lighting;
3.Building, Billboard Lighting;
4.Gas Station, Garage Lighting;
5.Park, Garden Lighting;
6.Workshop, Factory Lighting;
7.Warehouse, Storage Lighting;
8.Yard, Square Lighting;
9.Road,Highway Lighting;
10.Station,Dock Lighting etc

led wall washer IP 65 used outdoor
