IP65 RGB DMX512 Control CE RoHS FCC Certificates outdoor lighting/ led wall washer
Advantages:
1. LED wall washer series is linear type design, for symmetrical lighting. Fluent RGB patterns can be lighted up high buildings or as a decoration for wall both indoor and outdoor.
2. The main body is thickened type aluminum with tempered glass cover. Sealed by silicone ring, then fixed by screws. Surface is anodic oidation finish (silvery grey) which make the light can work in outdoor (rainy and
multiple weather). And it is easy to install.
3. High power LED as light source, with chip from Epistar, Epileds and Bridelux
4. Constant driver to make sure LED light working stably, with LED display and buttons to control RGB color
5.Voltage:DC 24V / 100-240V , Frequency: 50/60HZ
6. Color: RGB, or single color – white, red, green, blue, yellow
7.Beam angle: 15°/30°/45°/60°
8. Life span 50000 hours
9. Over-current protection

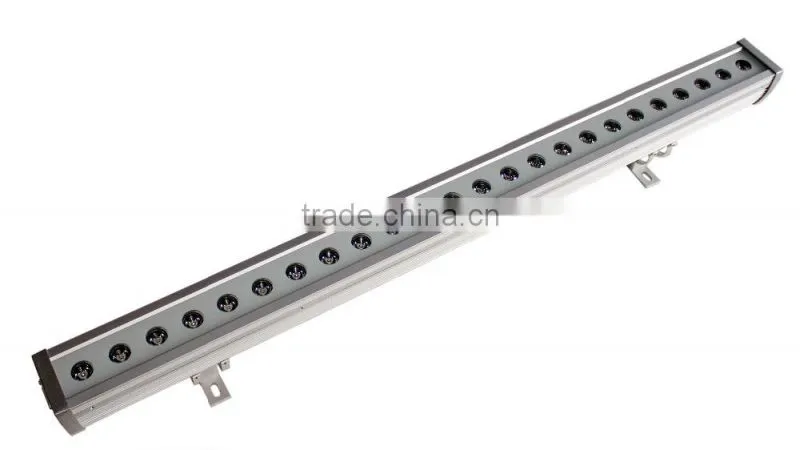

Product pictures:

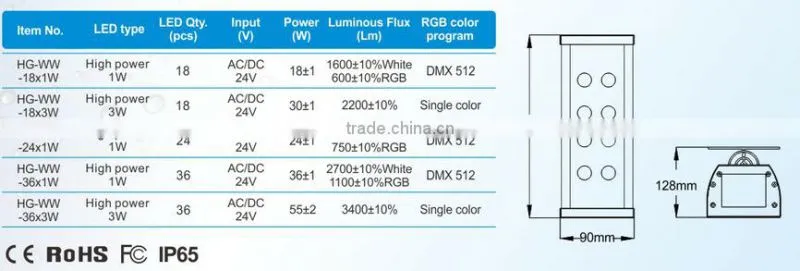

Main parameters:
| Specification | Parameter |
||
Model No. |
HG-WW-18X1W |
HG-WW-18X3W |
HG-WW-24X1W |
LED Qty |
18pcs 1W High power LED |
18pcs 3W High power LED |
24pcs 1W High power LED |
Input Voltage |
DC 24V |
DC 24V |
DC 24V |
Input Frequence |
50/60 Hz |
50/60 Hz |
50/60 Hz |
Power |
18±1 W |
30±1W |
24±1 W |
Luminous flux |
1600lm±10% |
2200lm±10% |
1800lm±10% |
Working temperature |
-10-60℃ |
-10-60℃ |
-10-60℃ |
Color temperature |
p.w.-6000~7000k w.w.:3000-3500k c.w.-8000~12000k |
p.w.-6000~7000k w.w.:3000-3500k c.w.-8000~12000k |
p.w.-6000~7000k w.w.:3000-3500k c.w.-8000~12000k |
Wave Length |
R:620-630 G:515-525 B:460-470K/nm |
R:620-630 G:515-525 B:460-470K/nm |
R:620-630 G:515-525 B:460-470K/nm |
Dimension |
1028×90×128mm |
1028×90×128mm |
1028×90×128mm |
Lighting Distance |
8-20m |
8-20m |
8-20m |
Constant driver |
yes |
yes |
yes |
IP rate(w/housing) |
IP65 |
IP65 |
IP65 |
|
Constant driver & over-current protection |
yes |
yes |
yes |
Packing |
4 pcs in 1090×270×290mm ctn N.G:18kgs |
4 pcs in 1090×270×290mm ctn N.G:18 kgs |
4 pcs in 1090×270×290mm ctn N.G:18 kgs |

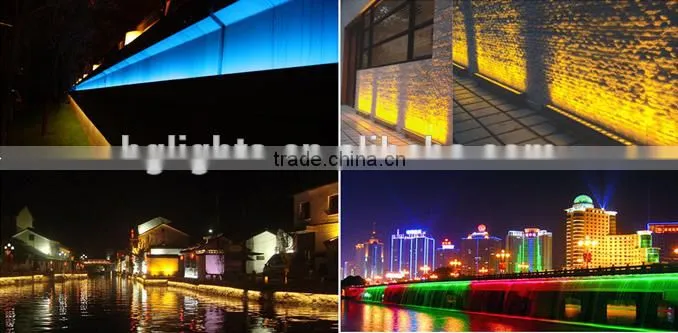

Application for RGB outdoor wall washer lighting : Tower , Bridge , High Building , Garden
RGB DMX512 Control Methods:
Diagram Connection:
RGB Remote Control Methods:
Diagram connection:
LED wall washer series:
Certificates:
Packaging:
1 pc led wall washer in a white box, 4 pcs in a master carton N.W.: 18kgs
it also can be customized based on the customers' requirements.
Shipping:
7-15 working days, it also depends on your order quantity.
1.OEM or ODM------Our advanced production lines, precise equipment, strict quality control process
and experienced engineer team are capable to fulfill the toughest OEM or ODM
requirement from customers worldwide.
2.M.O.Q.-------Generally, we don’t require M.O.Q. in order to help some clients to expand
their business & keep the ball rolling.
3.Lead time------7-15 working days based on stock material and order quantity.
4.Payment------T/T, Western Union or LC(at sight)
5.Incoterms-------EX-Factory/work, FOB, CIF
6.Warranty------All our products are covered by 24 months warranty from the date of purchase.
We are not responsible for any damage caused by improper use/assembling or force majeure.
SHENZHEN HEGUANG LIGHTING CO., LTD. is a sophisticated manufacturer which specializes in R&D and
production of LED Light ODM & OEM in fields of LED Swimming Pool Light and Underwater Light as well as
fountain light, inground light, wall washer, etc.
