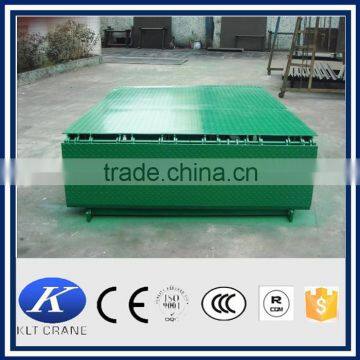

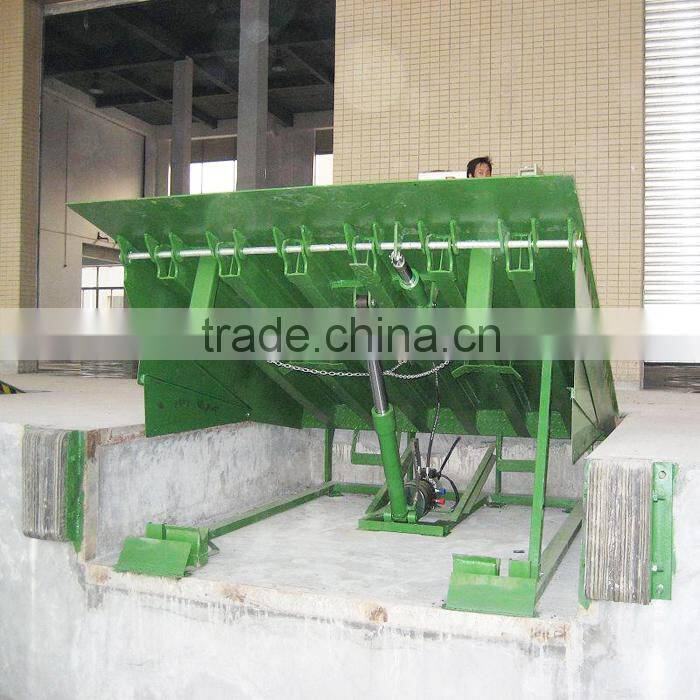

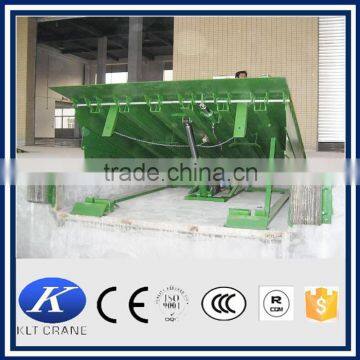

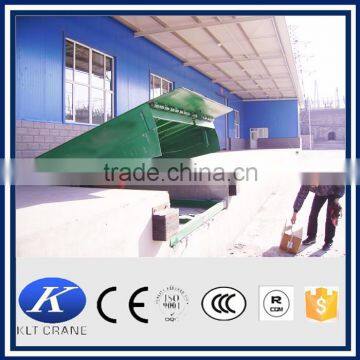

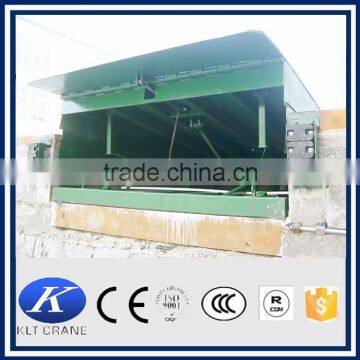

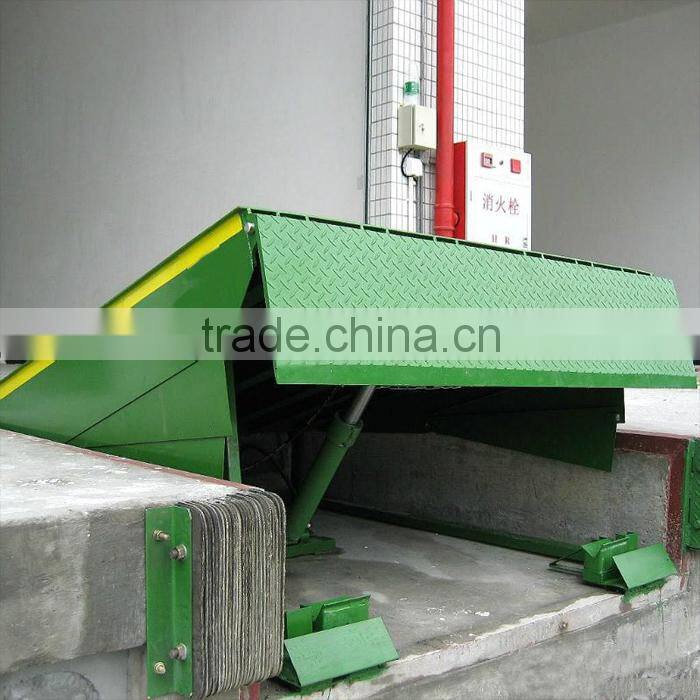

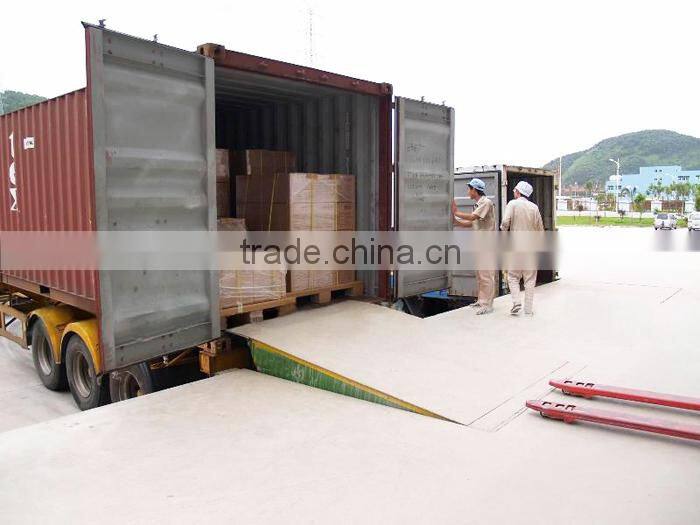

6T stationary loading dock ramp hydraulic dock leveler
Brief introduction of dock leveler
- Dock leveler is an equipment for cargo loading and lifting
- Dock leveler widely used in warehouse,station,wharf,warehousing logistics base,postal transportation,logistics distribution ect.
- Convenient push button activation and first-class hydraulic technology increase the efficiency and safety of the loading/discharging jobs.
- Dock leveler is classifiled to five kinds by carrying-weight capacity,such as 6T,8T,10T,12T,15T.
Features of dock leveler
- hydraulic drive, Easy to operate, reliable operation
- use the checkered plate to make the dock leveler non-slip
- The skirt boards are built in both sides to prevent feet from accidental hurting.
- The imported sealing elements were introduced to gurantee high sealing performance of hydraulic system.
- The imported complete module type hydraulic system was used for good sealing performance and long service life.
- The lip and platform are connected by a complete macro axis, which are of highstrength and reliability
- Hydraulic pressure system
- safe guard
- The cable have grounding protection
- Electric control system is set up instructions
- Platform can be tilted with the vehicle
- Industrial door interlock protection device
- The lifting point for integral hoisting
| Type |
Load (T) |
Paltform Size (mm) |
Lip width (mm) |
Upper travel (mm) |
Lower travel (mm) |
Power (kw) |
Pit Size (L*W*H) |
| QDC6-0.55 | 6 | 2000*2000 | 400 | 300 | 250 | 0.75 | 2080*2040*600 |
| QDC6-0.7 | 6 | 2500*2000 | 400 | 400 | 300 | 0.75 | 2580*2040*600 |
| QDC8-0.55 | 8 | 2000*2000 | 400 | 300 | 250 | 0.75 | 2080*2040*600 |
| QDC8-0.7 | 8 | 2500*2000 | 400 | 400 | 300 | 0.75 | 2580*2040*600 |
| QDC10-0.55 | 10 | 2000*2000 | 400 | 300 | 250 | 0.75 | 2080*2040*600 |
| QDC10-0.7 | 10 | 2500*2000 | 400 | 400 | 300 | 0.75 | 2580*2040*600 |
Trade terms of dock leveler
| Delivery Time | 10-15 working days after receiving the down payment |
| MOQ | 1set |
| Payment Terms | 50% T/T in advance,50%T/T against before shippping |
| Package | Packed into wooden case or customized |
Xinxiang Kailite Crane Equipment Co.,Ltd is a professional lifting equipments exporter with long trading history, having rich technical experience. We are located in Xinxiang--- the crane's hometown, having passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification.
Our trademark is "KLTCRANE", and our company's operation principle is "science and technology innovation, people oriented". All of our lifting devices and our innovation are built on the basis of the safety of users.
Customers visit
You can use our cranes at ease, the best after-sales service will be offered from KAILITE
1, One year warranty for whole machines.
2, Providing free quick-wear part.
3, Freely provide project designing, process designing, choosing suitable equipment for you.
4, Exclusive engineer support at any time.
5, Technical advisory for any time
As a professional exporter,our target is to serve worldwide clients with high-quality products,great-reliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects.We will supply you 24 hours a day and 7days a week after-sale services.
1. How about the delivery time?
Within 15 working days after we receive the down payment
2. What kind of payments do you support?
T/T, L/C, Western Union,Paypal, Trade assurance.
3.What is Trade assurance?
Trade Assurance is a free payment protection service for buyers.The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract.Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.
4. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
5. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting capacity,platform size,power source.
6. How about the warranty?
Our warranty is 1 year, within 1 year, any questions, we send spare parts as free.
Ordering notice of hydraulic lifting platform
1.Max lifting load_kg,
2.Size of the platform:_m,
3.Pit size:_mm*_mm,
4.Voltage:--V--Hz--Phase?
