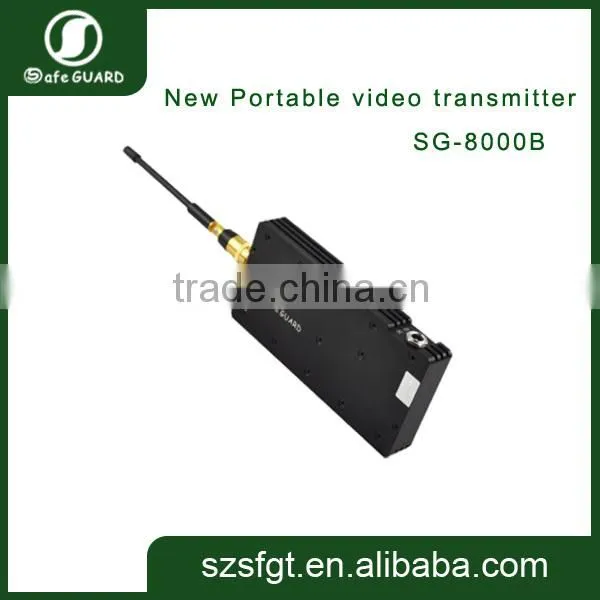

SG-8000B Portable Wireless FM Video Transmitter

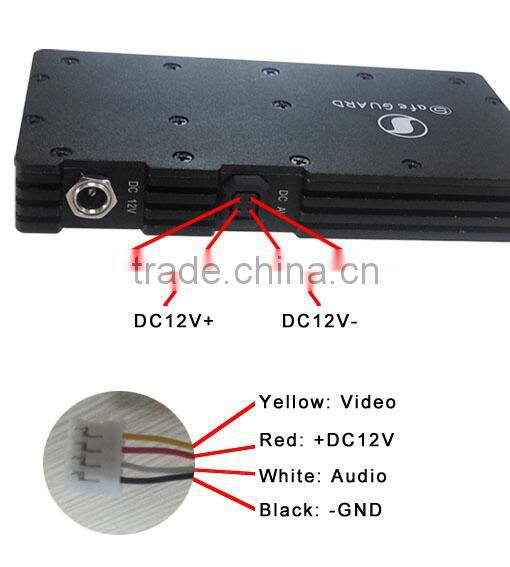

SG-8000B is a small, portable and cost-effective wireless video transmitter with aluminum shell. It runs on very little electricity (DC12V / 0.9A), uses Motorola integrated power amplifier with power of 8W, transmits 300-500 meters with obstacles(use 3dBi antennas), 800-1500 meters in a clear line, no heat sink and it is not very hot. Special audio and video interfaces can connect to the camera directly and power supply for it,reduce the unnecessary connect wires. It have good penetrability, especially suitable for single soldier for field work, covert investigations, as well as special tasks.
Transmitter System Indicators | |
Frequency |
1080MHz(default), 0.9-1.36GHz |
RF Power |
8W |
Voltage |
DC12-14.4V |
Modulation |
FM |
Bandwidth |
8M |
Video Format |
PAL |
Receiver System Indicators | |
Frequency |
1080MHz(default), 0.9-1.36GHz |
Impedance |
50Ω |
Video Output |
Analogic AV signal |
Voltage |
DC12V |
Temperature |
-30 --50°C |
Packaging Details | |
|
Complete Set & Accessories |

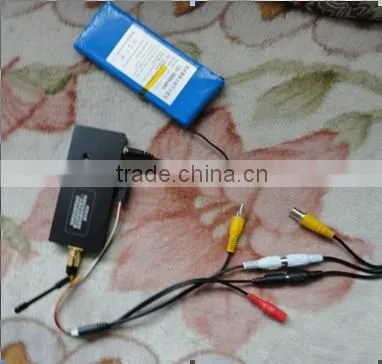

1* Transmitter; 1* Receiver; 2* 3dBi Antenna; 2* Power Adapter; 2* Connection line. |
Style |
Color gift box |
Size |
205*157*75mm |
Overall Weight |
580g |
