Shenzhen Heguang Lighting Co., Ltd.: Shenzhen, Guangdong, China; Main products: LED PAR56 Pool light, LED Fountain light, Underwater light, Wall Washer, Under ground light

Home > Products > Vinyl / Liner Pool Light > swimming pool light 12v

swimming pool light 12v

FOB Price

USD $13.75 - $13.75 / Piece

100 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	3W High Power	Input Voltage(V)	12
Lamp Power(W)	3	Lamp Luminous Flux(lm)	120
Lamp Luminous Efficiency(lm/w)	80	Color Temperature(CCT)	Pure White
Working Temperature(℃)	0, 50	Working Lifetime(Hour)	50000
IP Rating	IP68	Certification	CE, EMC, FCC, LVD, VDE
Lamp Body Material	Plastic	Base Type	PAR30
Place of Origin	Guangdong, China	Brand Name	Heguang
Model Number	HG-P20U-1*3W(plastic pool light)

Product Description

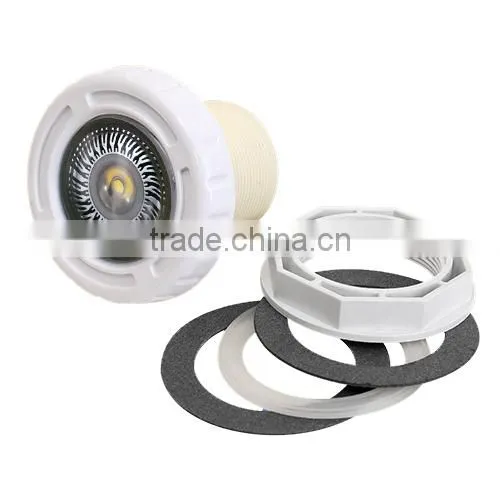

swimming pool light 12v

Product Description

Features:

l LED underwater light, unique heat-dissipation & waterproof design, high-grade and artistic, wide application.

l Applicable for Vinyl pool

l Plastic lamp body, tempered glass cover

l IP68 structure waterproof

l high power 3w as light source, Epistar, Bridgelux, Epileds as led chip for options.

l Constant driver to make sure LED light working stable, avoid any flashing and noisy

l Voltage:AC/ DC 12V, Frequency: 50/60Hz

l Beam angle: 25°/30°/45°/60° for options

l Life span: >30000 hours

l Over-current protection

Dimension:

Applications:

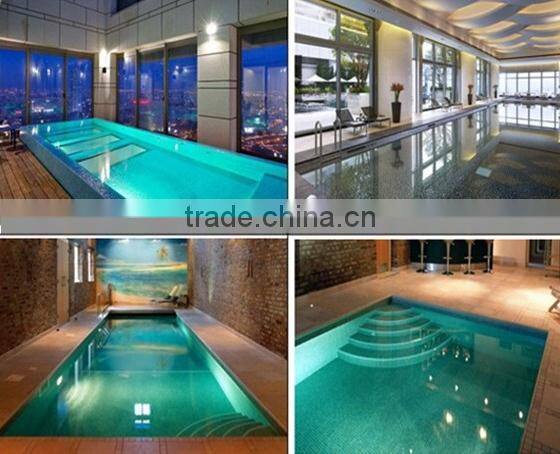

Vinyl pool, garden pond, square, water column, flower-bed in villas, garden, rocky water-fall, outdoor fountain, etc.

Specification
Model No.	*HG-P20U-13W(plastic pool light)**
LED Qty.	1 pc 3W High power LED Chip
Input Voltage	AC/DC 12V
Current	500 mA
Input Frequency	50-60 Hz
Power	Red:3±0.5W/Green:4±1W Blue:4±1W/White:4±1W
Luminous flux	120±10%Lm(Pure white) 110±10%Lm(Warm white) 100±10%Lm(Cool white) 70±10%Lm (Green) 40±10%Lm (Red) 20±10%Lm (Blue)
Wave Length (RGB)	R:620-630 K/nm G:515-525 K/nm B:460-470 K/nm
Color temperature	w.w.:3000-3500k p.w.:6000~7000k c.w..8000~12000k
Dimension	95×113.3 mm
Working temperature	-20~50℃
Storage Temperature	-20~50℃
Base	wire
IP rating	IP68
Constant driver&over-current protection	yes
Packing	30 pcs in 62x29x47cm Ctn. Qty.: 30 pcs N.G: 10.5 kg

Packaging & Shipping

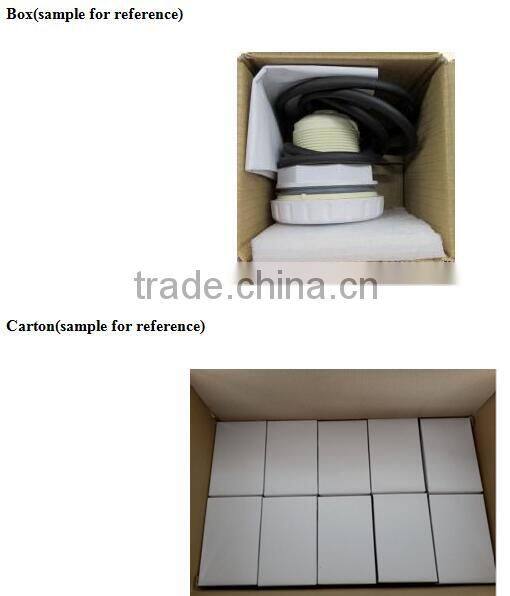

Each in a box, suitable quantity in a carton

Model No.	N.W./pc (kg)	Box dim (cm)	G.W./pc (kg)	Ctn dim (cm)	Ctn. Qty. (pcs)	G.W./ctn (kg)
HG-P20U-3X1W (Plastic pool light)	0.5	13.5x13x14.5	0.65	62x29x47	30	20.5
HG-P20U-1X3W (Plastic pool light)	0.5	13.5x13x14.5	0. 65	62x29x47	30	20.5
HG-P20U-3X1W (Plastic pool light) (SMD3528)	0.5	13.5x13x14.5	0. 65	62x29x47	30	20.5

Usually cargoes are shiped by international express as below:

If air freight is too high, sea freight is also available.
