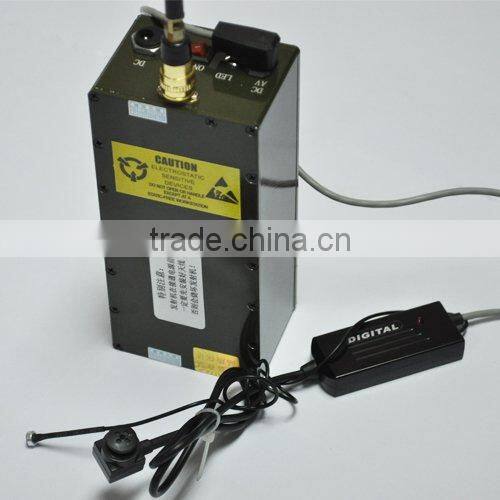

Portable Wireless Video Surveillance AV transmitter System

Specifications

1.Professional for field task or military training
2.Transmission AV signals timely
3.500-800m/1000-1500m NLOS/LOS Distance





Internal Batteries Video Surveillance AV Sender





Product Model: SG-BX1000

Specifications:



Transmitter System Indicators
Frequency	1.06-1.36GHz(optional)
RF Power	10W
Voltage	DC14.4V
Current	1.2A
Modulation	FM
Bandwidth	20MHz
RF Interface	RCA
Work environment	-30~70
Video Format	PAL
Size	140*65*45mm
Weight	1.2kg (with antenna)



Receiver System Indicators
Frequency	1.06-1.36GHz(optional)
Receive Threshold	<- 96dBm
Power Consumption	40W
Power supply	DC12V
AV Interface	RCA
Audio Output	Analog, single channel
Impedance	50Ω
Work environment	-40~+55°C
Weight	200g(with antenna)
Size	115*81*20mm



Packaging Details

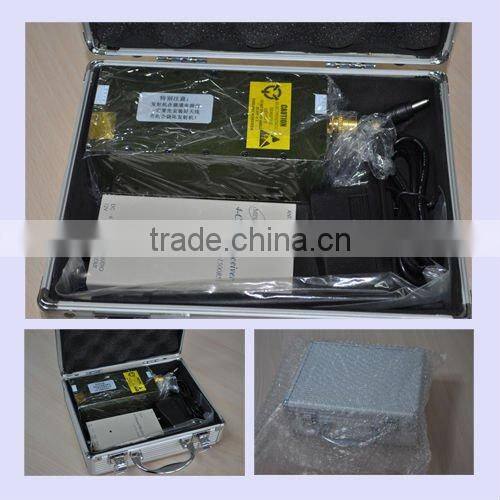

Accessories	2*antennas (customized); 1*adapter; 2*connection line.
Style	Exquisite gift box

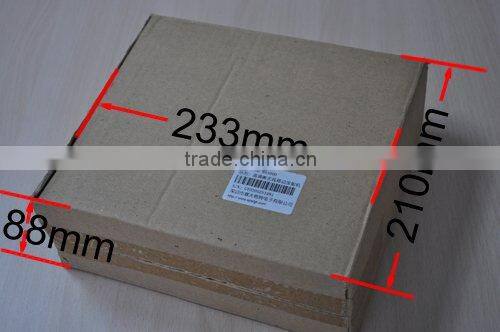

Size	233*210*88mm
Overall Weight	2kg



Sweet prompt: If you need to extend the transmission distance, please use professional wireless video signal repeater/booster choose by our product catalog.

















Replacement



Influence the second sale of products do not belong to the category of return within 30 days you get this product. Such as appearance injury, High-voltage fuse, Damp, Broken seals, soaking,and so on. Transportation costs of replacement, repairment etc. Paid by the buyer!!!





Warranty

One year free warranty, 3 months for spare parts. We only charge for replacement parts cost when exceed one year.



Shippment

1. Items are only shipped after all payments are received by DHL, UPS, FEDEX etc. within one work day.
2. Free shipping to select countries, please check carefully the shipping & packing in detail.
3. For dispatching smoothly and safety, we have the final decision on the selection of shipping company.
4. Please do kindly notice that there maybe a little difference in transportation time by the reason as climate, accident or other issues, sorry for not responsible for any reason of delays.
