3W Stainless Steel LED Underwater Pool Light IP68 Waterproof
Features
*316 (V4A) stainless steel LED underwater light, unique heat-dissipation & waterproof design, high-grade and artistic, wide application.
*Transparent PC cover, anti-corrosion, shock-proof, unbreakable, safe transportation
*IP68 structure waterproof
*high power 1w as light source, Epistar, Bridgelux, Epileds as led chip for options.
*Color: Red, Green, Blue, RGB, 14 kinds of color changing mode
Single color – white, red, green, blue, yellow
* kinds of RGB control method: Remote control, Wi-Fi Control, DMX Control,
Automatic control, External control (wire control)
*Constant driver to make sure LED light working stable, avoid any flashing and noisy
*Voltage:AC/ DC 12V, Frequency: 50/60HZ
*Beam angle: 15°/25°/30°/45°/60° for options
*Life span: >30000 hours
*Over-current protection
Main parameters for 3W Stainless Steel LED Underwater Pool Light IP68 Waterproof
Specification | Parameter | |
Model No. | HG-P20U-3*1W | HG-P30U-6*1W |
LED Qty. | 3 pcs 1W High power | 6 pcs 1W High power |
Input Voltage | AC/DC 12V | AC/DC 12V |
Input Frequency | 50-60 Hz | 50-60 Hz |
Power | 4±1 W(W/G/B/RGB) 3±1 W(red) | 7±1 W(W/G/B/RGB) 5±1 W(red) |
Luminous flux | 200±10%Lm(P.W) 180±10%Lm(W.W) 170±10%Lm(C.W) 60±10%(R) / 130±10%(G) 28±10%(B) / 90±10%(RGB) | 390±10%Lm(P.W) 370±10%Lm(W.W) 350±10%Lm(C.W) 120±10%(R) / 260±10%(G) 50±10%(B) / 180±10%(RGB) |
Wave Length (RGB) | R:620-630 K/nm G:515-525 K/nm B:460-470 K/nm | R:620-630 K/nm G:515-525 K/nm B:460-470 K/nm |
Color temperature | p.w.6000~7000k w.w.:3000-3500k c.w.8000~10000k | p.w.6000~7000k w.w.:3000-3500k c.w.8000~10000k |
Dimension | 124.5×115 mm | 124.5×115 mm |
Working temperature | -20~50℃ | -20~50℃ |
Storage Temperature | -20~50℃ | -20~50℃ |
Base | wire | wire |
Constant driver | yes | yes |
IP rating | IP68 | IP68 |

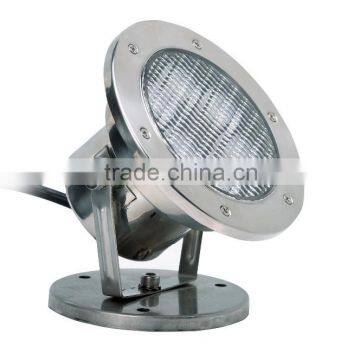

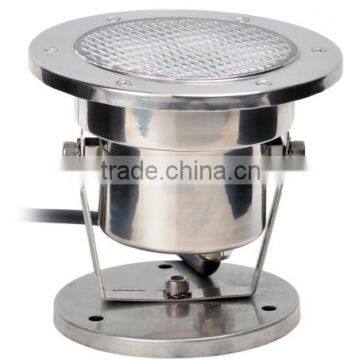

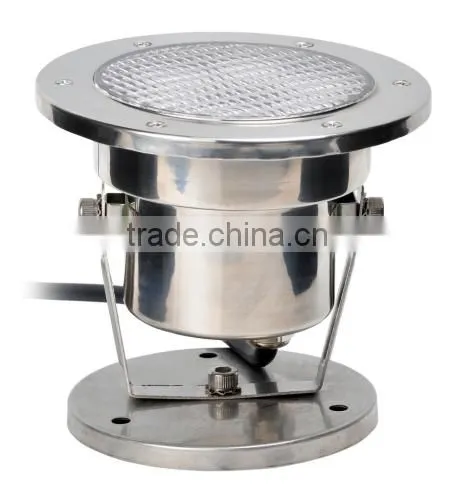

Details pictures for 3W Stainless Steel LED Underwater Pool Light IP68 Waterproof

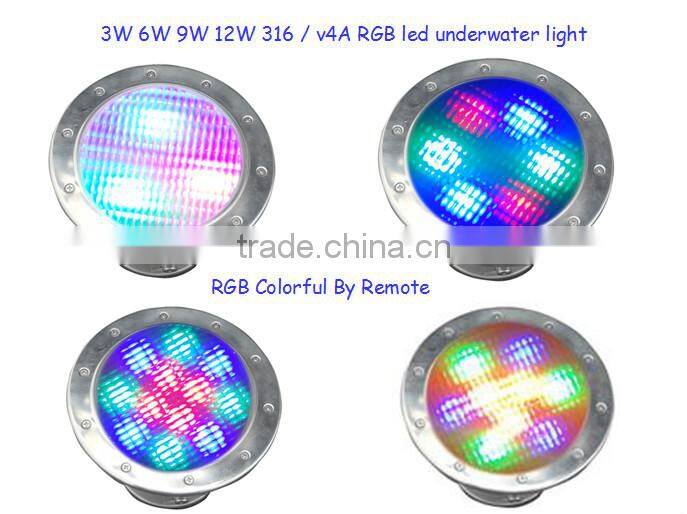

RGB Remote Control Methods for 3W Stainless Steel LED Underwater Pool Light IP68 Waterproof

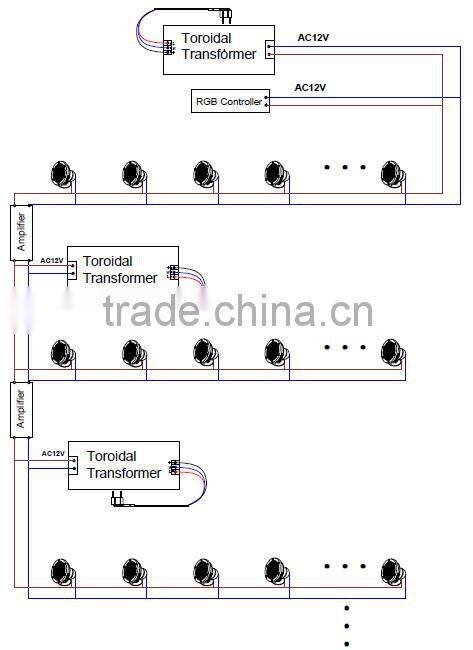

Diagram
User Manual for 3W Stainless Steel LED Underwater Pool Light IP68 Waterproof
3W Stainless Steel LED Underwater Pool Light IP68 Waterproof

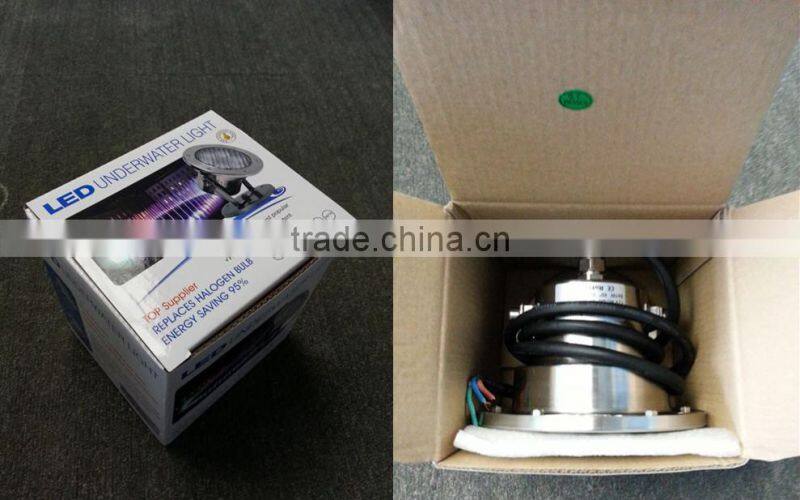

Packaging:
1pc in135×126×110 color / white box
30pcs in 650x300x350 carton
Shipping:10 ~13 working days based on the order volume.
Heguang Lighting specialized in led swimming pool lights for many years, main products cover led par56 pool lamp & led surface mounted light & led fountain light & led underwater light.
Briefly develop history:
In 2006, Heguang established
In 2009, specializing in Led Swimming pool light
In2011, develop overseas market
In 2012, attending world-class exhibition
In 2014, building the brand awareness
