YX518 Spinning Frame
Spinning frame
It is suitable for spinning cotton and synthetic fibres or their blends to produce high quality weaving
or knitting yarns.
Features:
Electrical PLC control, easy to operate;
Advanced automatic doffing device;
Four rollers negative pressure compact spinning instrument;
Damping type, knee brake as an option; aluminum rob spindle;
Effective yarn cleaning device to ensure the yarn quality
Specifications:
Spindle gauge | 70mm |
Spindle quality | 516,504,492,480,456,444,420,396,96 |
Ring diameter | 38,42,45,48 |
Tube length | 205,230 |
Spun yarn count(tex) | 4.9-97(45-16 Ne) |
Applicable fiber | Cotton and synthetic fiber |
Drafting | Three-line roller, with 6 spindles per piece, double apron(up short and down long) |
Compact drafting | Four-line roller, with 6 spindles per piece, double apron(up short and down long) |
Drafting times | 10-110 |
Spindle | Damping type, knee brake as an option; aluminum rob spindle |
Spindle speed range(r/min) | 10000-25800 r/min |
Spindle driving | Each tape for 4 spindles |
Twist | 300-1700 t/m |
Twist | Z or S |
Roving package | Φ135x320, Φ152x406(max) |
Main motor power | 17-22kw |
Parts as option | Inverter, balloon control ring, back bottom roller cleaner, knee brake of spindle, over head cleaner, motor-driven doffer |

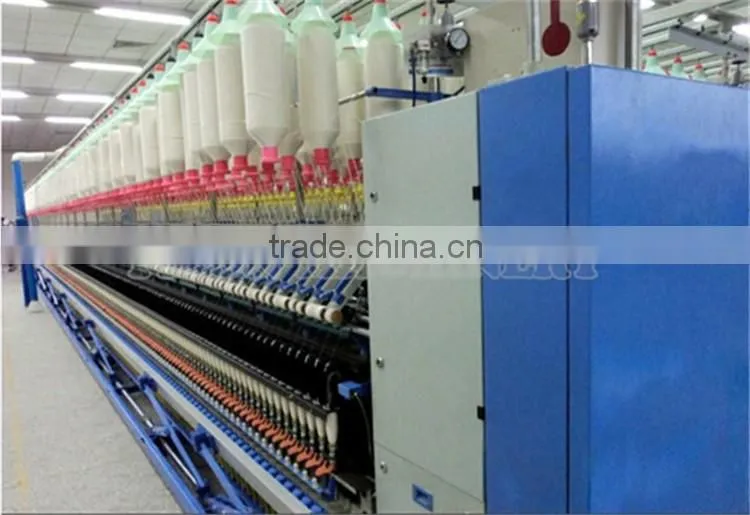

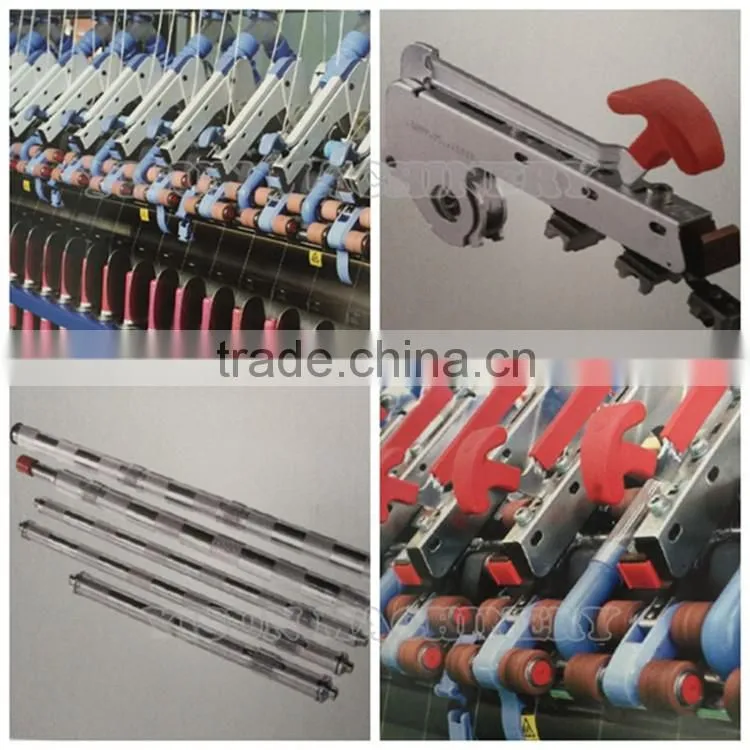

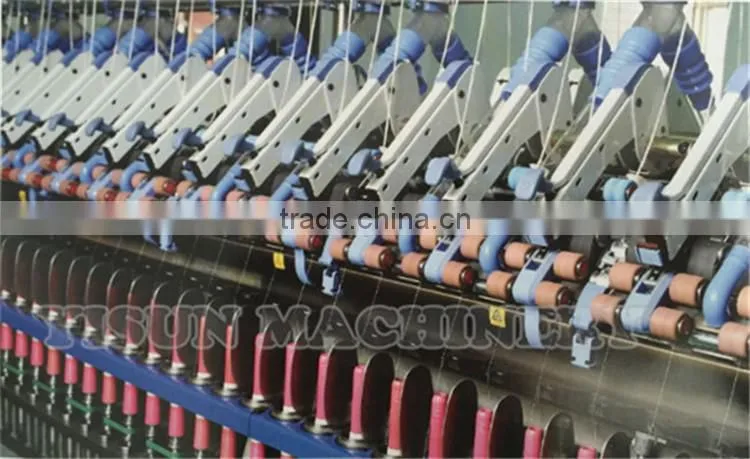

Pictures Show
Our Factory
Packaging & Shipping
Company Information
Qingdao Yisun Machinery CO. LTD., which owns 15 experience, is located in Wangtai Town, Qingdao, China--- the most important production base of textile machinery. Our factory covers an area of 12000 square meters with more than 100 sets of specialized production equipment and more than 200 staffs, among which there are over 30 technicians.
“Existence depends on Quality” is the principle in our daily working. We are the long- term equipment supplier
of many enterprises and foreign trade companies in China.
In the year of 2015, Qingdao Yisun Trade Company was founded, specialized in import and export machinery
products.
We are looking forward to having a cooperation with friends from all over the world, and you are warmly
welcome to visit us.
Our Advantages
1) Direct Manufacturer
2) 15 years experience
3) Senior engineers
4) Customization
