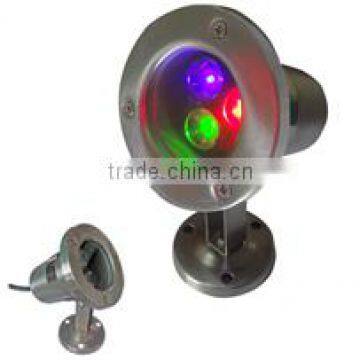

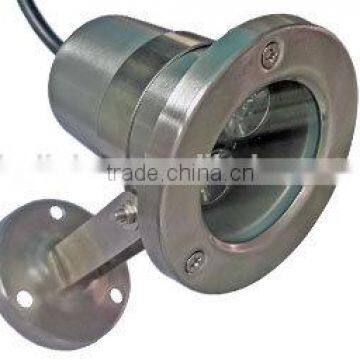

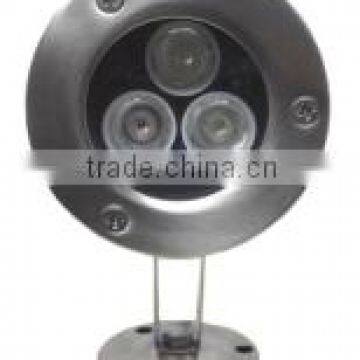

CE RoHS ErP Certified V4A/#316 Stainless Steel Shell AC/DC12V 3W RGB/W Outdoor LED Underwater Light IP68 Structural Waterproof

AC/DC 12/24V 6*1W V4A/#316 S.S. RF Remote RGB Control LED Underwater Pool Lamp IP68 Structural Salt/Sea Waterproof

Item No.: #HG-UL-3x1W-S

--- Product Features ---

> V/4A/#316 Stainless steel LED underwater light, unique heat-dissipation & waterproof design, high-grade and artistic.
> Transparent PC cover, anti-corrosion, shock-proof, unbreakable, safe transportation
> IP68 waterproof (structure water-proof)
> LED chip: 1W high power
> Lighting Colors:

     RGB – 14 kinds of color changing mode
     Single color – white, red, green, blue, yellow
> 6 kinds of RGB control methods:

     Remote control, Wi-Fi Control, DMX Control, Remote & switch control, Automatic control, External control (wire control)
> Constant driver to make sure LED light working stable, avoid any flashing and noisy
> Voltage: AC/DC 12V
> Frequency: 50/60HZ
> Beam angle: 15°/30°/45°/60° for options
> Lifespan: >30,000 hours
> Over-current protection

--- Product Pictures ---

- Dimension of #316 S.S. LED Underwater/Downwater Lighting Bulb ---

[ CAUTION ]

! LED Underwater Light need to be used under water

! LED Underwater Light requires toroidal transformer, electronic transformer is not applicable

--- Main Specifications of High Power Underwater LED Lamp ---

--- Temperature Test Report of Heatsink Parts ---

Temperature test position:

(1) LED edge

(2) PCB center

(3) PCB edge

(4) Lamp Body
Criteria:

(1) LED edge <90℃

(2) PCB center <80℃

(3) PCB edge <80℃

(4) Lamp Body <70℃

--- Wiring Diagram of LED Submersible Underwater Lights, Remote Contoller and Power Supply ---

(1.) Connection Diagram for Single Lighting Color LED Underwater/Downwater LED Lamps

(2.) Connection Diagram for RGB Color DMX512 Controlling

(3.) Wiring Diagram for 2-Wire Connection RF Remote RGB Controlling

(4.) 4-Wire Connection for External RF RGB Remote Controlling

(5.) Connection Diagram of 2.4GHZ WiFi LED Controlling

(6.) Connection Diagram of RF Remote & Switch on/off RGB Controlling

(7.) Connection Diagram of Built-in Automatic RGB Controlling

--- Underwater/Downwater Installation Instructions of LED Underwater Pool Lamps ---

[ CAUTION ]

! LED UNDER WATER LIGHT NEED TO BE USED UNDER WATER

! LED UNDERWATER LIGHT REQUIRES TOROIDAL TRANSFORMER, ELECTRONIC TRANSFORMER IS NOT APPLICABLE

 ! CABLE CONNECTION MUST BE DONE PROFESSIONALLY WITH WATERPROOF CABLE CONNECTOR, AND TO BE DONE IN WATERPROOF (IP68 RATE) IN ORDER TO AVOID ANY WATER LEAKAGE THROUGH CABLE (figure 1 & 2)

! DO NOT CARRY LAMP BY CABLE IN ORDER TO AVOID WATER LEAKAGE (figure 3)

--- Lighting Applications ---

--- Packing Details ---

--- Shipping of goods ---

Normally take 7-15 working days, it also depends on your order quangtity. We can arrange shipment by Air or Sea, try to make our customers receive all the goods ordered from us successfully soonest as possible.

--- Brief Introduction of Heguang Lighting Co., Ltd. ---
SHENZHEN HEGUANG LIGHTING CO., LTD. is a sophisticated manufacturer which specializes in R&D and production of LED Light ODM & OEM in fields of LED Par56 Swimming Pool Light and Underwater Light such as Fountian Light, Underground / Ingroud Light, Wall Washer and Vinyl Pool Light etc.
