led inground light / ip68 waterproof led underground light / 18W led underground light
Description
About the products:
1.Product name:led underground light/led inground light/led buried light
2.Unique structure waterproof without any glue, high-grade and artistic, wide application.
3. IP68 waterproof
4. Voltage:AC/ DC 12V, AC 85-265V
5. Frequency: 50/60HZ
6. Extruded aluminum +304 stainless steel+ tempered glass cover
7.Color: RGB: 14 kinds of color changing mode
Single color – white, red, green, blue, yellow
8.Constant driver to make sure LED light working stable, avoid any flashing and noisy
9. Beam angle: 15°/25°/30°/45°/60° for options
10. Life span: >30000 hours
About the led soruce
1. High power 1W led source
2. LED Chip Brand: Bridgelux / Epistars
3. Work time: >50000hrs
4. Over-current protection
About the control methods
1. External Controller (4 wires)
2.WiFi Controller (4 wires)
3. DMX Controller (5 wires)
* External & WiFi controller can be achieve RGB Synchronization with 14 kinds of color change program
Specification
Specification |
Parameter |
|
Model No. |
HG-UG-12W |
HG-UG-18W |
LED Qty |
12pcs 1W |
18pcs 1W |
Input Voltage |
85-265V AC or 12V AC/DC |
85-265V AC or 12V AC/DC |
Input Frequency |
50/60 Hz |
50/60 Hz |
Power |
12±1 W(W/G/B/RGB) 8±1 W (Red) |
18±1 W(W/G/B/RGB) 14±1 W(Red) |
Luminous flux |
Blue:120±10%Lm Red:280±10%Lm RGB:350±10%Lm Green:550±10%Lm C.W.:900±10%Lm W.W.:920±10%Lm P.W.:950±10%Lm |
Blue:200±10%Lm Red:400±10%Lm RGB:500±10%Lm Green:850±10%Lm C.W.:1200±10%Lm W.W.:1300±10%Lm P.W.:1400±10%Lm |
Wave Length (RGB) |
R:621-625 K/nm G:518-520 K/nm B:464-467 K/nm |
R:621-625 K/nm G:518-520 K/nm B:464-467 K/nm |
Dimension |
Φ180×95 mm |
Φ220×95 mm |
Color temperature |
W.W.:3000-3500K P.W.:6000-7000K C.W.:8000-12000K |
W.W.:3000-3500K P.W.:6000-7000K C.W.:8000-12000K |
Working temperature |
-10-40℃ |
-10-40℃ |
Storage Temperature |
-10-50℃ |
-10-50℃ |
Base |
Wire |
Wire |
Constant driver |
yes |
yes |
IP rating |
IP68 |
IP68 |
|
Constant driver& over-current protection |
yes |
yes |
Packing |
20pcs in60x40x40cm ctn G.W: 37 kg |
20pcs in 55x55x48cm ctn G.W: 46 kg |

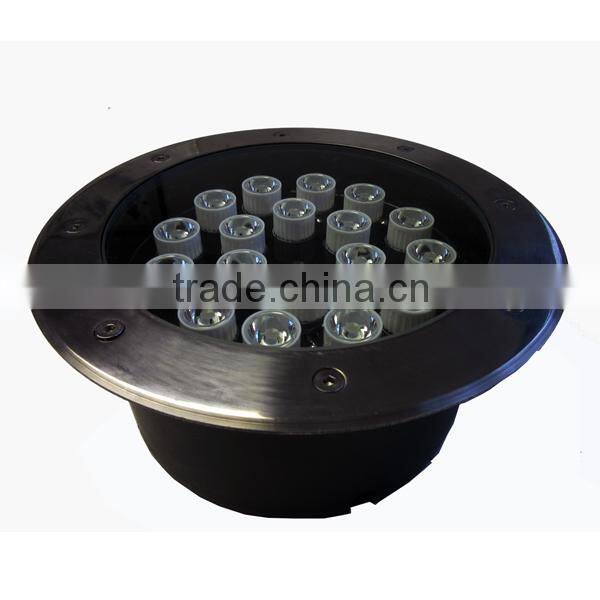

Pictures Of led inground light / ip68 waterproof led underground light / 18W led underground light
LED Underground / Inground / path Light Mask - Stainless Steel

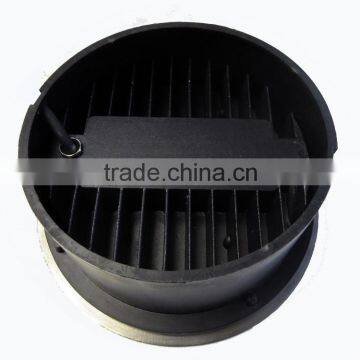

LED Underground / Inground / path Light Back View - Abstract Heat

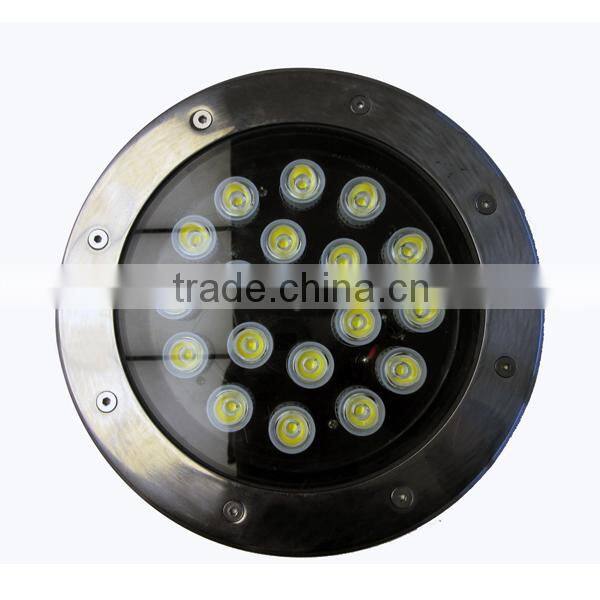

LED Underground / Inground / path Light - Top View
led inground light / ip68 waterproof led underground light / 18W led underground light
Series
led inground light / ip68 waterproof led underground light / 18W led underground light
Application
led inground light / ip68 waterproof led underground light / 18W led underground light
Control Methods
* External Control
Diagram

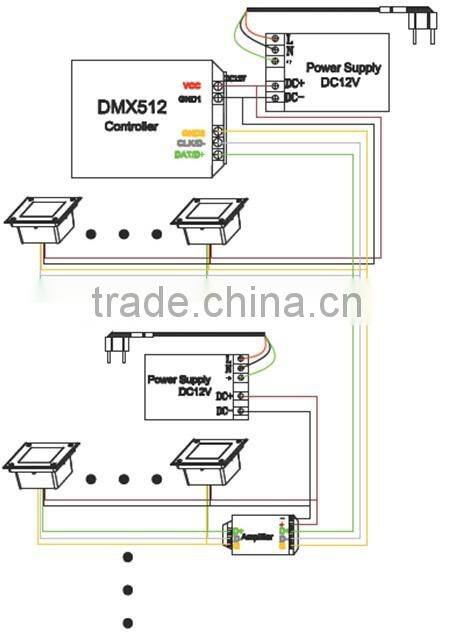

* DMX Control
Step1: connect DMX Controller to power line as below diagram
Step2:connect lamps to power line and DMX Controller as below diagram
Remark:
DMX Controller VCC connect to Power supply DC+, GND1 connect to Power supply DC-
5 Wires:
Brown wire connect to DMX controller “VCC”
Black wire connect to DMX controller “GND1”
Yellow wire connect to DMX controller “GND2”
White wire connect to DMX controller “CLK/D-”
Blue wireconnect to DMX controller “DAT/D+”
Diagram

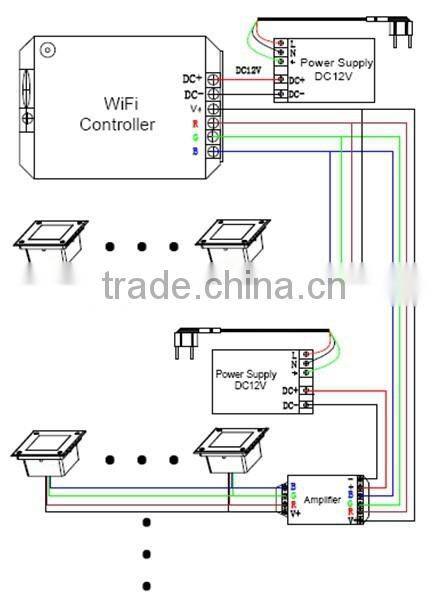

* WiFi Control
Diagram
