Hot sale roving frame/fly frame/ring spinning frame yx1477/1478
- 50 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
Condition: | New | Application: | Textile spinning | Type: | Roving Frame |
Production Capacity: | 95%-100% | Place of Origin: | Shandong, China | Brand Name: | YISUN |
Model Number: | YX1477 | Spinning Method: | Ring Spinning | Automatic: | Yes |
Dimension(L*W*H): | 14565*3477mm | Weight: | 11.2 tons | Power(W): | 15kw |
Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
YX1477 Roving frame for ring spinning
YX1477/1478 roving frame is high speed spinning frame for ring spinning. With three servo; Three variable frequency drive,simple structure and advanced program automatization to avoid the sliver faults during reversing. The roving frame equipped with sliver breakage protection system and is one new generation practical model.
Specifications | ||
Model | YX1477 | YX1478 |
Spindle gauge | 220mm | 194mm |
Spindle number | 96,108,120,132,144 | 96,108,120,132,144 |
Package dimension(mm) | Φ150*400 | Φ135*400 |
Bobbin dimension(mm) | Φ45*445 | Φ45*445 |
Drafting system | Four-roller or three-roller double apron drafting system | |
Drafting multiple | 4.2-12 | |
Twist range | 18-80 | |
Length for fiber | 22-55mm(four roller) 51-65mm(three roller) | |
Density for yarn | 200-1250 | |
Pressing form | Pendulum spring pressing, Pneumatic weight arm, leaf spring pressing | |
Bottom roller diameter(mm) | Φ28.5,Φ28.5, Φ28.5, Φ28.5 | |
Top roller diameter(mm) | Φ28.8,Φ28.8, Φ25, Φ28.8 | |
Cleaning device | Positive revolving belt with revolving suction device | |
Max Mechanical speed | 1600r/min | |
Transmission device | Three frequency inverter motor | |
Control type | Computer control | |
Man-machine interaction | Touch screen | |
Winding transmission | Gear transmission | |
Flyer transmission | Gear transmission | |
Winding power shaft | Universal shaft | |
Differential device | Visible oil bath differential box | |
Reversing device | Software | |
Yarn forming angle | Software | |
Three auto doffing | Software | |
Signal display | Five lamps indicated on machine headstock | |
Tension adjustment | Software | |
Tension fine adjustment | Software | |
Unevenness preventing | Software | |
Sliver fault preventing | Software | |
Winding density adjustment | Software | |
Twist changing | Twist gear | |
Can diameter | Φ400 Φ500 Φ600 | |
Motor power | Main motor 7.5kw; Gear motor 7.5kw; Rail motor 0.75kw | |
Noise standard | <85 | |
Overall dimension | 14565*3477(4365)mm | 13005*3477(4365)mm |
Weight | 11.2 tons | 10.9 tons |

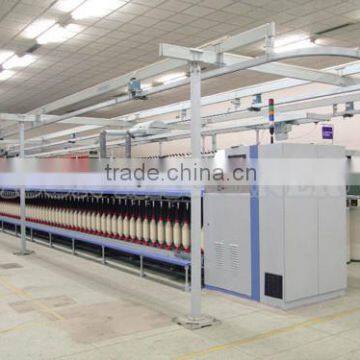

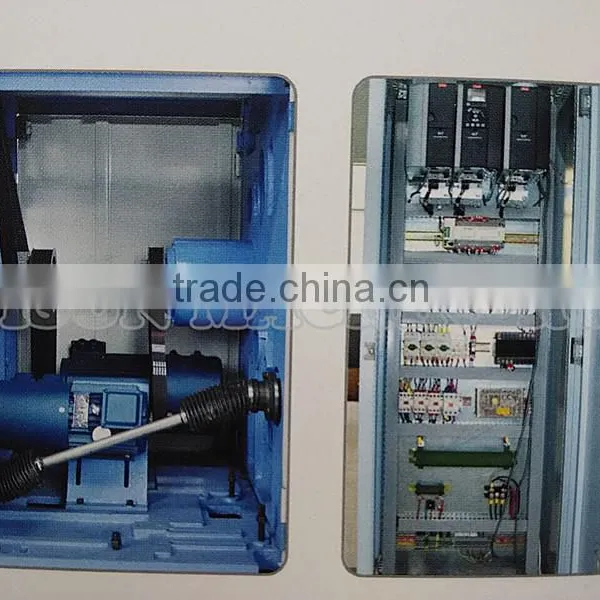

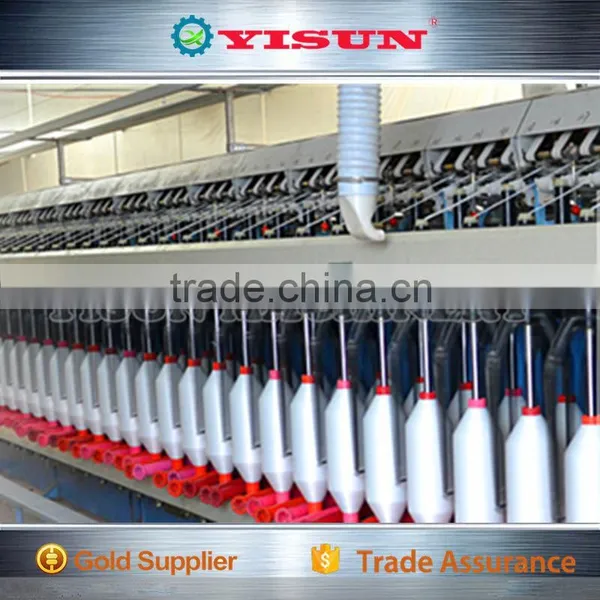

Pictures:
FAQ
1 Are you a manufacturer or Trade Company?
A: We are a professional manufacturer with our own Trade Company so that
we can better understand customer's needs and offer a reasonable price.
2 Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visit.
3 How about the quality?
A: Professional assembly line work and strict quality test system can ensure your high quality requirement.
4 How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
5 How to contact us?
A:You could contact us via TM,wechat, email or call us directly.
