Home > Products > Spinning Machine > Automatic yarn winding machine/ automatic yarn winder machine with high efficiency
Automatic yarn winding machine/ automatic yarn winder machine with high efficiency
- 50 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
| Place of Origin: | Shandong, China | Brand Name: | YISUN | Model Number: | Smaro-new |
| Machine Type: | Winding Machine | Product: | Other, yarn | Material Capabilities: | Yarn |
| Condition: | New | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Auto-winder machine/auto winding machine SMARO-NEW
- Applied to wool, synthetic yarn and blended single from 3.5 to the highest count cotton,
- Better, faster and more reliable than traditional auto-winder.
- Top level electronic yarn clearer, total control of yarn quality
- Optimized system, greatly improve efficiency;
- Uniform and consistent yarn tension, excellent building of yarn package;
- Latest desigh, greatly improve efficiency and reduce labor force;
- First class after-sale service
Specifications:
Type | Single-spindles, single sided arrangement, left or right hand |
Application | Nm 3.5 to the highest count cotton, wool synthetic yarn and blended single yarn |
Winding speed | 400-2200m/min, step-less speed regulation |
Number of winding spindles | 6 to 72 every two spacing increment |
Spindle distance | 320mm |
Applicable bobbin taper | 4°20, 5°57’ |
Feeding bobbin | Diameter=32-65mm, length=180-300mm. |
Joint type | Airsplicer, aquasplicer |
Magazine type | 9 holes or 6 holes |
Yarn cleaner | The latest USTER/LOEPFE electronic yarn cleaner. |
Drum | DC motor coaxial transmission, step-less speed regulation |
Circles on drum | 2 or 2.5 |
Anti-pattering | Motor speed variation controlled in whole process. |
Joints circle | Electrical logic control, intelligent cycle |
Tension control | Electromagnetic pressure |
Power installed | 33.57kw( actual consumption 11-15kw) |
Overall dimension(60 spindles) | 22627x1365x2650mm |

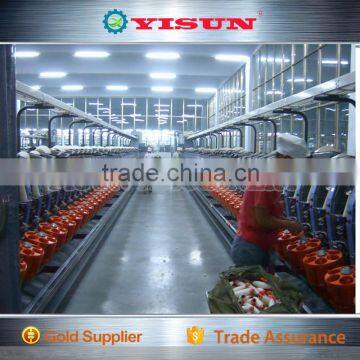

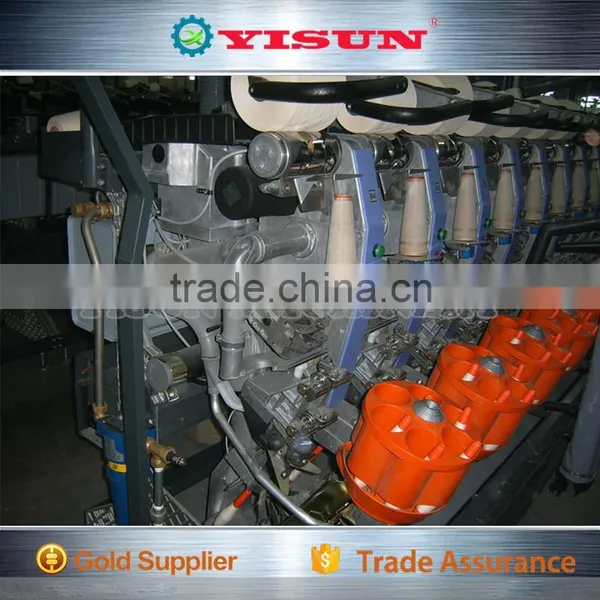

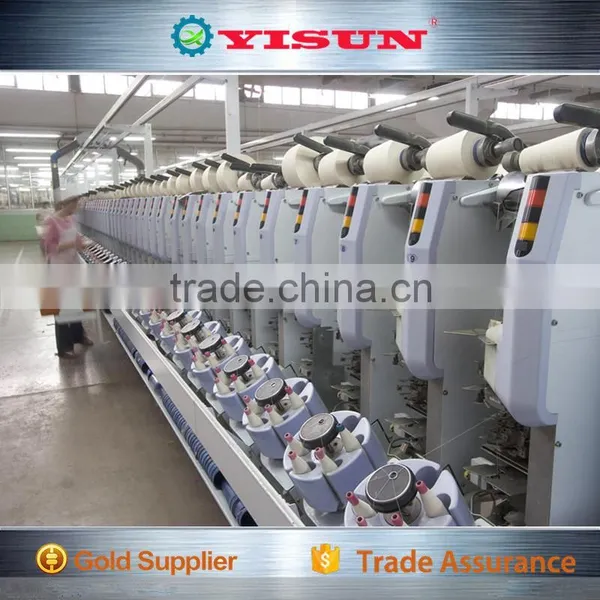

Pictures:
1 Are you a manufacturer or Trade Company?
A: We are a professional manufacturer with our own Trade Company so that
we can better understand customer's needs and offer a reasonable price.
2 Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visit.
3 How about the quality?
A: Professional assembly line work and strict quality test system can ensure your high quality requirement.
4 How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
5 How to contact us?
A:You could contact us via TM,wechat, email or call us directly.
