Specifications
1.Slewing Balance Jib Crane With Slewing Bearing2.Environment-friendly
3.Energy-saving air balancers
4.Light And Efficient

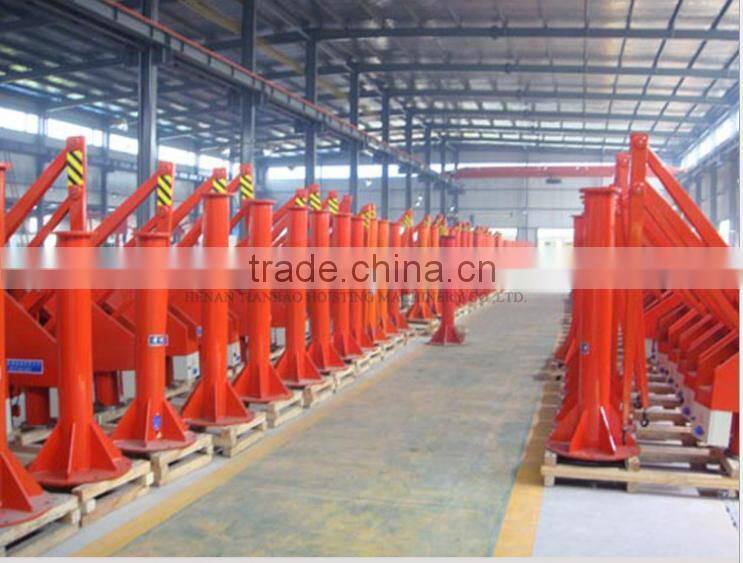

Customize design Slewing Balance Jib Crane With Slewing Bearing
PJ type balance crane is an ideal small and medium-sized mechanical lifting equipment. It runs four bar linkage mechanism principle, using manual and motorized simple cooperate to form a composite movement to carry load, the load at any time according to the requirement of stable to stay in operation interval to any position. PJ series of hanging balance short column structure ( referred to as the dwarf type ) and a high column structure ( referred to as the high type ) two series of products, from the weight of 50kg to 2000kg.
It is widely used in machine tools, parts and components; the assembly and repair process of hoisting transport; production line of articulation, converting station; foundry core, closing the box; heat treatment furnace, such as furnace workshop. It is a rather ideal, the workers from the frequent handling manual labor emancipated, and can effectively improve the production efficiency of the special production tools. At present in the automotive, tractor, diesel engine, agricultural vehicles, machine tool equipment, machinery manufacturing and other industries are widely used.
PJ type balance crane operation is very simple, with a button actuating motor, so that the hanging vertical lifting; manual push and pull the hanging, hanging or direct stalls, the horizontal moving, or around the post and rotated to the required lifting working position.
Quick and easy installation
Poured foundations can take up to a week to cure before you can install the jib.
Now there’s no waiting. Flexible for easy relocation
It’s easy to relocate a jib where there’s no poured foundation.
That means more flexibility in choosing initial jib location.
You can place it closer to machines or other obstructions, because there is no need for a large square foot area for a concrete pour.
| model | PJ005 | PJ010 | PJ020 | PJ030 | PJ040 | PJ050 | PJ060 | |
| max. lifting capacity | kg | 50 | 100 | 200 | 300 | 400 | 500 | 600 |
| max. lifting height | mm | 2000 | 2000 | 2000 | 2000 | 2000 | 2500 | 2500 |
| min. lifting height | mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| max. radius of gyration | mm | 2500 | 2500 | 2500 | 2500 | 2500 | 3200 | 3200 |
| min. radius of gyration | mm | 580 | 580 | 770 | 770 | 770 | 1000 | 1000 |
| rotation angle | degree | 345 | 345 | 345 | 345 | 345 | 345 | 345 |
| lifting speed | m/min | 6.14 | 6.14 | 5.44 | 5.52 | 5.56 | 5.08 | 5.08 |

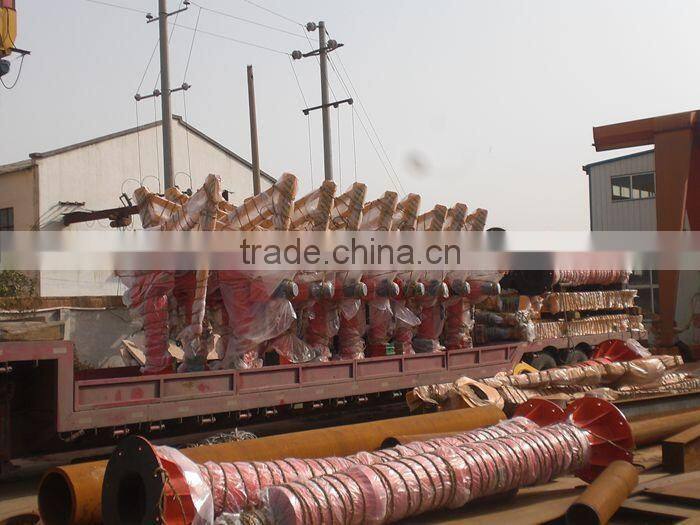

Packaging Detail: Electric parts are packed by strong plywood crate, others packaged in polythene woven cloth or as your requirement.
Delivery Detail: 15 working days after receiving your deposit.
Our company Xinxiang Kailite Crane Equipment Co., Ltd., established in 2014, specializes in the business of various lifting appliances.
Located in Xinxiang, we enjoy convenient access to professional suppliers of lifting appliances. All our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality.
Guaranteeing stable and timely supply, credible quality reasonable prices and sincere service, our products sell well in both domestic and overseas markets.
Service We Can Provide
2. Design the crane according to your technical request.
3. Delivery on time
4. Our engineer can arrive to the installation site to help fixing the crane for you.
5. Diversity products.
6. Warranty: 12 months.
As kinds of cranes are customized, in order to offer you most suitable design and best solution, please tell us the following information when you send inquiry.
- Lifting capacity.
- Lifting height( hook center to ground).
- Beam length ?
- Working radius ?
- Working condition. Which material to lift? Temperature? Industrial working voltage ?
- Would it be better if you have drawings?
If you have any interest in our products or any questions, please do not hesitate to contact me. I will help you to know more about our products' detail.
