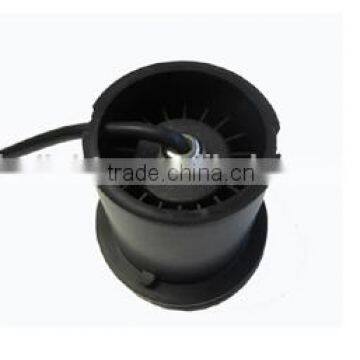

3X1W High Power LED Undergroun Light IP68

FOB Price

USD $11.35 - $11.35 / Piece

100 Pieces(Min.Order)

Product Details

LED Light Source:	1W High Power LED	Warranty(Year):	2	Input Voltage(V):	12
Lamp Power(W):	3	Lamp Luminous Flux(lm):	220	Lamp Luminous Efficiency(lm/w):	80
Color Temperature(CCT):	Pure White	Working Temperature(℃):	0, 40	Working Lifetime(Hour):	50000
Lamp Body Material:	Aluminum	IP Rating:	IP68	Certification:	CE, EMC, FCC, LVD
Place of Origin:	Guangdong, China	Brand Name:	Heguang	Model Number:	HG-UG-3W (Round)

3X1W High Power LED Undergroun Light IP68

Product Description

Features:

1.Unique structure waterproof without any glue, high-grade and artistic, wide application.

2.IP68 waterproof

3.Extruded aluminum +304 stainless steel+ tempered glass cover

4. Led chip: 45mil Bridgelux 1W high power

5.Color: Single color – white, red, green, blue, yellow

6.Constant driver to make sure LED light working stable, avoid any flashing and noisy

7.Voltage:AC/ DC 12V Frequency: 50/60HZ

8.Beam angle: 15°/25°/30°/45°/60° for options

9.Life span: >30000 hours

10.Over-current protection

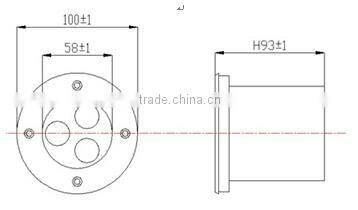

Dimension:

Applications: Garden, Courtyard, Clubs, Stages, Parks, ect.

8 hours aging.

Samples in show room:

Parameter:

Model No.	HG-UG-3W (Round)
LED Qty	3pc 1W
Input Voltage	12V AC/DC,85-265V
Input Frequency	50/60 Hz
Power	2±1 W(Red),3±1 W(W/G/B)
Luminous flux	Blue:30±10%Lm Red:60±10%Lm Green:150±10%Lm C.W.:190±10%Lm W.W.:210±10%Lm P.W.:220±10%Lm
Wave Length (RGB)	R:621-625 K/nm G:518-520 K/nm B:464-467 K/nm
Dimension	Φ100×93 mm
Color temperature	W.W.:3000-3500K P.W.:6000-7000K C.W.:8000-12000K
Working temperature	-10-40℃
Storage Temperature	-10-50℃
Base	Wire
Constant driver	yes
IP rating	IP68
Constant driver& over-current protection	yes
Packing	30pcs in 58x35x22cm ctn G.W: 23 kg

Packaging & Shipping

Usually cargoes are shiped by international express as below:

If air freight is too high, sea freight is also available.
