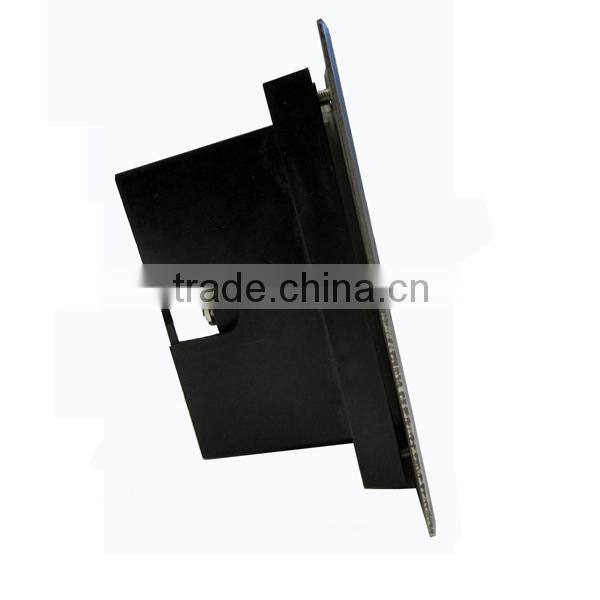

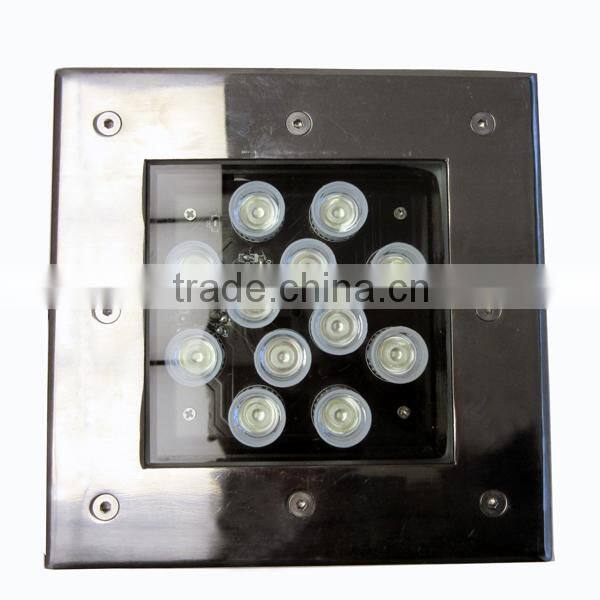

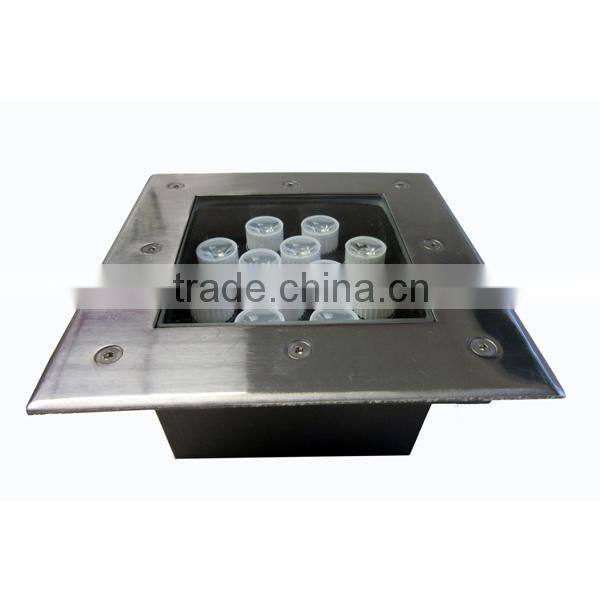

IP68 12W Square LED Inground Light
Product Show:
Features:
l Unique structure waterproof without any glue, high-grade and artistic, wide application.
l IP68 waterproof
l Extruded aluminum +stainless steel+ tempered glass cover
l Led chip:1 W high power
l Color: Single color – white, red, green, blue, yellow
l Constant driver to make sure LED light working stable, avoid any flashing and noisy
l Voltage:AC/ DC 12V, AC 85-265V Frequency: 50/60HZ
l Beam angle: 15°/25°/30°/45°/60° for options
l Life span: >30000 hours
l Over-current protection
main parameters:
Specification | Parameter |
Model No. | HG-UG-12W-ALS |
LED Qty | 12pcs 1W high power |
Input Voltage | 85-265V AC or 12V AC/DC |
Input Frequency | 50/60 Hz |
Power | 12±1 W(W/G/B/RGB) 8±1 W (Red) |
Luminous flux | Blue:120±10%Lm Red:280±10%Lm RGB:350±10%Lm Green:550±10%Lm C.W.:900±10%Lm W.W.:920±10%Lm P.W.:950±10%Lm |
Wave Length (RGB) | R:621-625 K/nm G:518-520 K/nm B:464-467 K/nm |
Dimension | 180mm(L) x 180mm(W) x 86mm(H) |
Color temperature | W.W.:3000-3500K P.W.:6000-7000K C.W.:8000-12000K |
Working temperature | -10-40℃ |
Storage Temperature | -10-50℃ |
Base | Wire |
Constant driver | yes |
IP rating | IP68 |
Constant driver& over-current protection | yes |
Applications: Garden, Courtyard, Clubs, Stages, Parks, etc.
our square led inground light series:
Certificates: CE, RoHS, FCC, R&TTE, etc
LED Underground light series:
Packaging:
1 pc in a white box(21*21*15 cm), 20 pcs in 60x43x45cm master carton G.W.: 39 kgs
Shipping:
7-15 working days, it also depends on your order quantity.
1.OEM or ODM------Our advanced production lines, precise equipment, strict quality control process
and experienced engineer team are capable to fulfill the toughest OEM or ODM
requirement from customers worldwide.
2.M.O.Q.-------Generally, we don’t require M.O.Q. in order to help some clients to expand
their business & keep the ball rolling.
3.Lead time------7-15 working days based on stock material and order quantity.
4.Payment------T/T, Western Union or LC(at sight)
5.Incoterms-------EX-Factory/work, FOB, CIF
6.Warranty------All our products are covered by 24 months warranty from the date of purchase.
We are not responsible for any damage caused by improper use/assembling or force majeure.
SHENZHEN HEGUANG LIGHTING CO., LTD. is a sophisticated manufacturer which specializes in R&D and
production of LED Light ODM & OEM in fields of LED Swimming Pool Light and Underwater Light as well as
fountain light, inground light, wall washer, etc.
