1.Main parts and brief description:

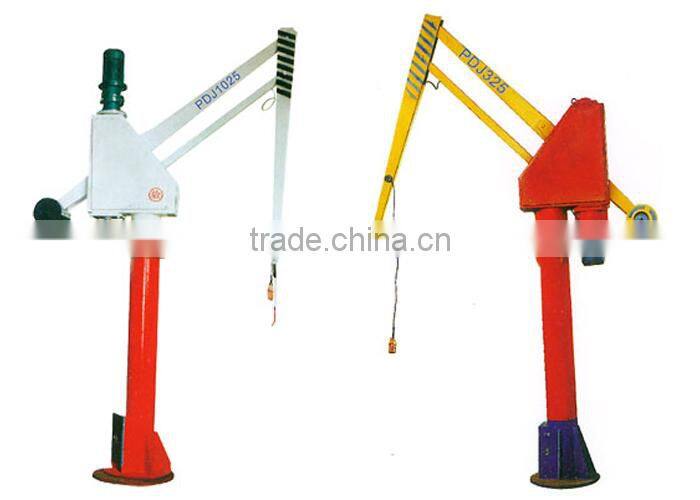

Customize design PDJ type balance jib crane:
Balance crane is a type of small light hangs which without using the electric hoist to lifting
goods,it adopt the four link type to load and unload goods. There are four arms in the four link
type balance crane, 1 base,2 side links and 1 coupler to keep the balance crane working well. And
use a hook to lift material, so it must be light goods that in the workshop.PDJ type adopt the
unique screw lifting mechanism.
2.Features:
- Reasonable structure and favorable performance.
- Soft starting and stopping.
- Safe and reliable traveling, long life.
- Easy installation and convenient maintenance.
- Excellent exchangeability for parts and components.
- Negotiable price.
3.More details about Customize design PDJ type balance jib crane :
| Customize design PDJ type balance jib crane | |||||||
| Item | PDJ125 | PDJ225 | PDJ235 | PDJ325 | PDJ525 | PDJ825 | PDJ1025 |
| Max.loading capacity(kg) | 100 | 200 | 200 | 320 | 500 | 800 | 1000 |
| Max.lifting height(mm) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Min.lifting height(mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Max.radius of gyration(mm) | 2500 | 2500 | 3500 | 2500 | 2500 | 3200 | 3200 |
| Min.radius of gyration(mm) | 400 | 400 | 830 | 540 | 540 | 540 | 540 |
| Rotation angle(.) | 340 | 340 | 340 | 340 | 340 | 340 | 340 |
| Lifting speed(m/min) | 6~8 | 6~8 | 6~8 | 6~8 | 6~8 | 6~8 | 6~8 |
Our delivery is Efficient , Reliable ,and Prompt!
Packaging Detail:
- PJ Type Slew Jib Balance Cranes are packed : Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;others packaged in plastic woven cloth,or as your request.
- Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
Delivery Detail:
- If the size of whole crane are suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
Within 25days after the deposit received.
In order to offer you a suitable design and best solution, Please tell us:
- Kinds of product you need?
- Working condition. Which material to lift? Temperature?
- Lifting capacity?
- Lifting height( distance from hook center to ground)?
- Radius of gyration?
- Power supply; Voltage(In China, it’s 380V 50Hz 3Phase)?
Or other special requirements you tell us would be more appreciated.
Customer visiting
- Sales manager cell number is 24hours available.
- Payment terms is flexible.
- Design the product according to your technical request.
- Our engineer is willing to help fixing the crane for you.
- Diversity products.
- Delivery on time.
- Warranty: 12 months.
If you have any interest in our products or any questions, please do not hesitate to contact me. I will help you to know more about our products' detail.
We will try our best to serve you!
