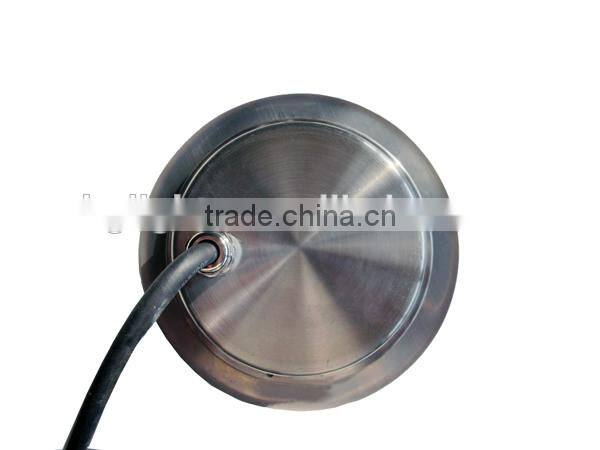

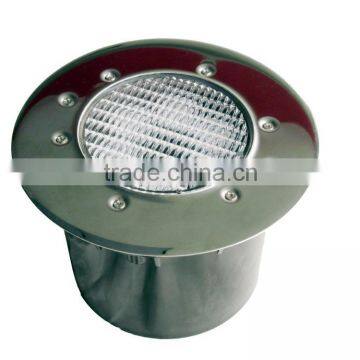

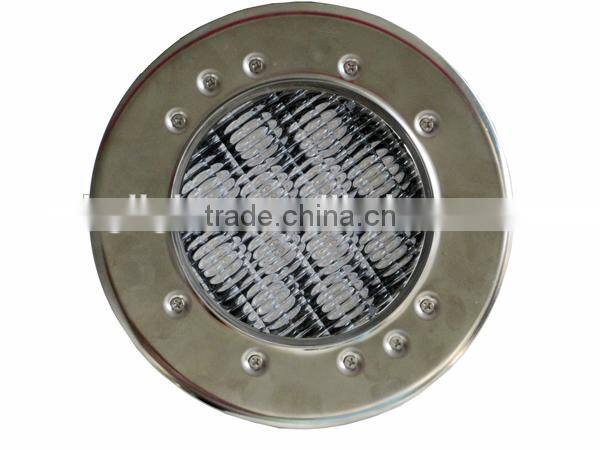

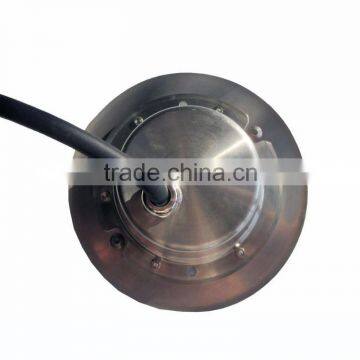

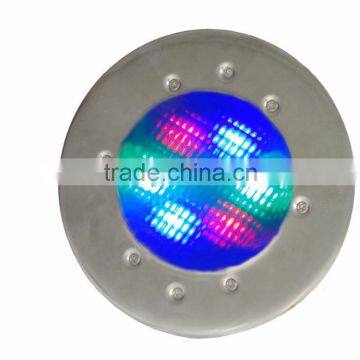

IP68 Structure Waterproof Recessed LED Underwater Light for Outdoor Led Lighting
IP68 structure waterproof Recessed LED Underwater Light for outdoor led lighting
Features:
l 316 (V4A) stainless steel LED underwater light, unique heat-dissipation & waterproof design,
high-grade and artistic, wide application.
l Transparent PC cover, anti-corrosion, shock-proof, unbreakable, safe transportation
l IP68 structure waterproof
l high power 1w as light source, Epistar, Bridgelux, Epileds as led chip for options.
l Color: Red, Green, Blue, RGB, 14 kinds of color changing mode
Single color – white, red, green, blue, yellow
l 5 kinds of RGB control method: Remote control, Wi-Fi Control, DMX Control,
Automatic control, External control (wire control)
l Constant driver to make sure LED light working stable, avoid any flashing and noisy
l Voltage:AC/ DC 12V, Frequency: 50/60HZ
l Beam angle: 15°/25°/30°/45°/60° for options
l Life span: >30000 hours
l Over-current protection

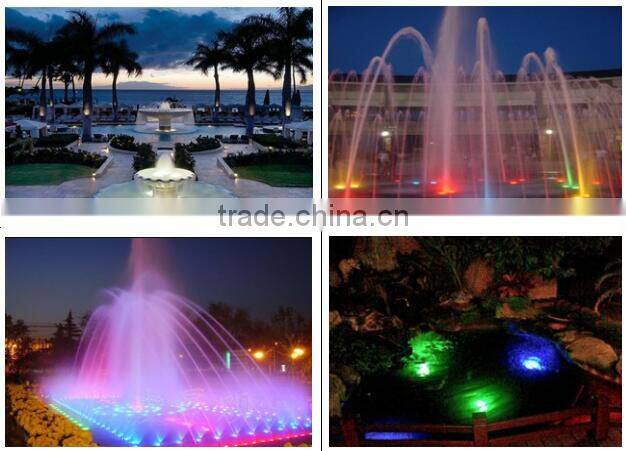

Application: garden pond, square, water column, flower-bed in villas, garden,
rocky water-fall, outdoor fountain, etc.
Main Parameters:
Specification |
Parameter |
Model No. |
HG-UL-6*1W-R |
LED Qty. |
6 pcs 1W High power |
Input Voltage |
AC/DC 12V |
Input Frequency |
50-60 Hz |
Power |
7±1 W(W/G/B/RGB) 5±1 W(red) |
Luminous flux |
390±10%Lm(P.W) 370±10%Lm(W.W) 350±10%Lm(C.W) 120±10%(R) / 260±10%(G) 50±10%(B) / 180±10%(RGB) |
|
Wave Length (RGB) |
R:620-630 K/nm G:515-525 K/nm B:460-470 K/nm |
Color temperature |
p.w.6000~7000k w.w.:3000-3500k c.w.8000~10000k |
Dimension |
157mm(diameter) x 104mm(height) |
Working temperature |
0~50℃ |
Storage Temperature |
-20~50℃ |
Base |
wire |
Constant driver |
yes |
IP rating |
IP68 |
|
Constant driver & over-current protection |
yes |
Packing |
36 pcs in 500x500x520mm ctn N.G: 27 kg |
RGB control methods are as followings:
(1). Remote control(2 wire connection): control RGB color changed by remote controller or RGB controller.
(2). External control(4 wires connection): RGB color changed by external controller .
(3). WiFi control(4 wires connection): RGB color changed by WiFi controller or Android system phone or Iphone
(4). DMX control(4 wires connection): RGB color changed by DMX controller
(5). Auto control(2 wires connection): RGB color changed automatically, RGB program is pre-set
(6). Remote and Switch control(2 wires connection): RGB color changed by RF reote or switch(RGB changed by switch on/off)

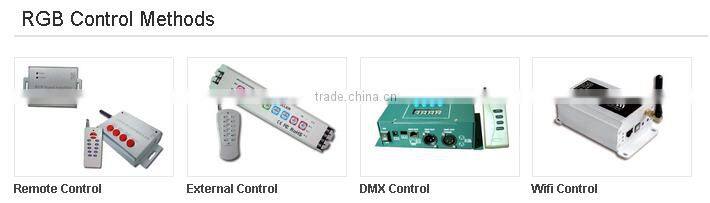

RGB Control Method:

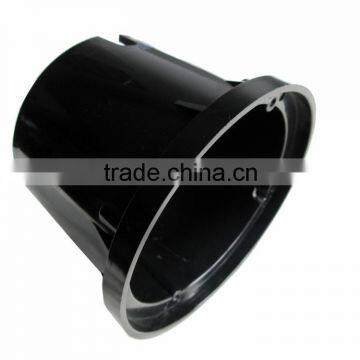

The dimension of recessed underwater light:
Size: 1) 157mm(diameter) x 104mm(height)
HG-UL-3*1W-R / HG-UL-6*1W-R
2) 176mm(diameter) x 108mm(height)
HG-UL-9*1W-R / HG-UL-9*3W-R / HG-UL-12*1W-R

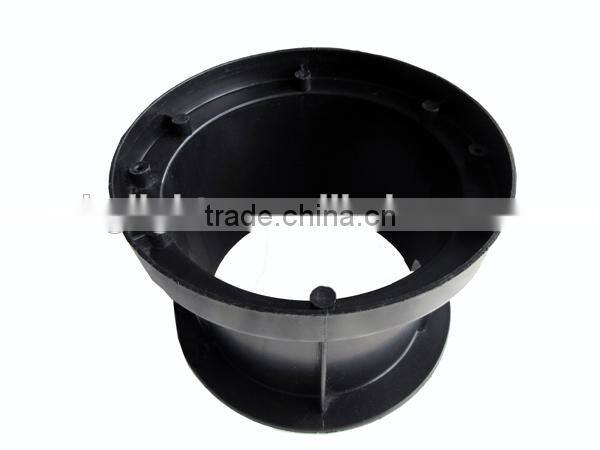

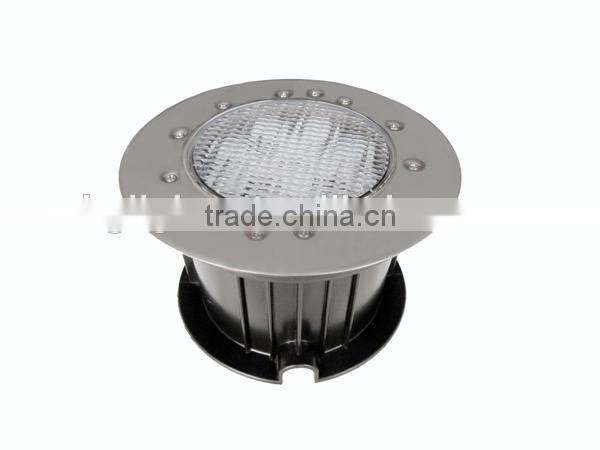

Installation:
LED Underwater light series:
Packaging:
1 pc in a white box, 36 pcs in 50x50x52 cm master carton N.W.: 27 kgs
it also can be customized based on the customers' requirements.
Shipping:
7-15 working days, it also depends on your order quantity.
1.OEM or ODM------Our advanced production lines, precise equipment, strict quality control process
and experienced engineer team are capable to fulfill the toughest OEM or ODM
requirement from customers worldwide.
2.M.O.Q.-------Generally, we don’t require M.O.Q. in order to help some clients to expand
their business & keep the ball rolling.
3.Lead time------7-15 working days based on stock material and order quantity.
4.Payment------T/T, Western Union or LC(at sight)
5.Incoterms-------EX-Factory/work, FOB, CIF
6.Warranty------All our products are covered by 24 months warranty from the date of purchase.
We are not responsible for any damage caused by improper use/assembling or force majeure.
SHENZHEN HEGUANG LIGHTING CO., LTD. is a sophisticated manufacturer which specializes in R&D and
production of LED Light ODM & OEM in fields of LED Swimming Pool Light and Underwater Light as well as
fountain light, inground light, wall washer, etc.
