Specifications
3-12m Fiberglass telescopic pole1.3 kinds of hot sticks
2.3m--12m
3.fiberglass/epoxy resin
4. high voltage, high strength

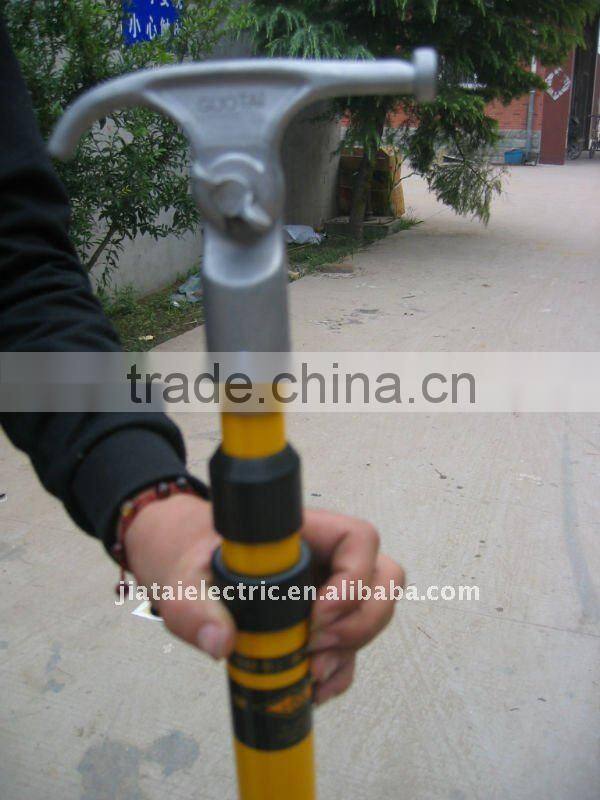

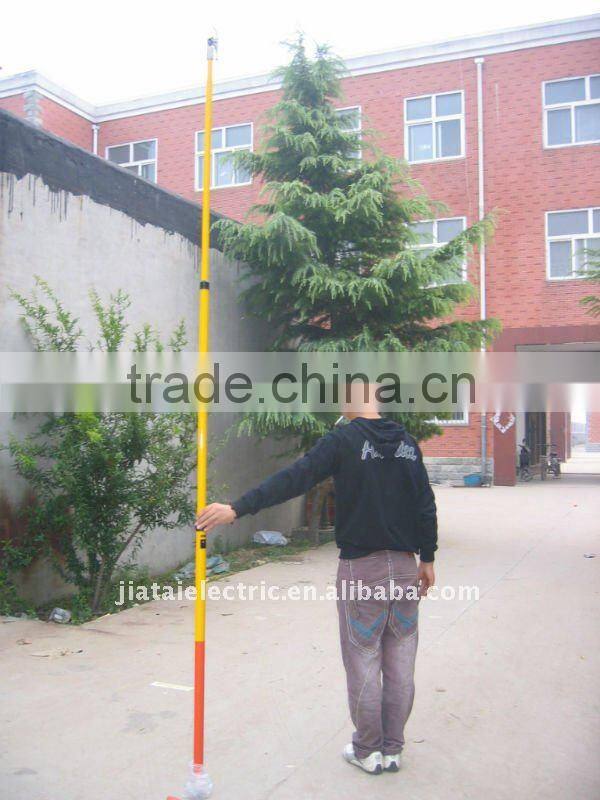

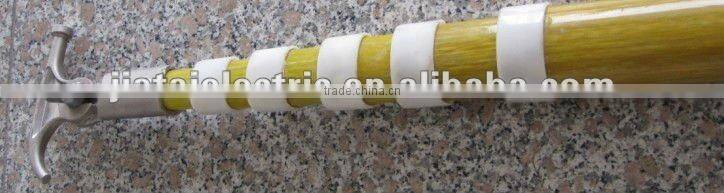

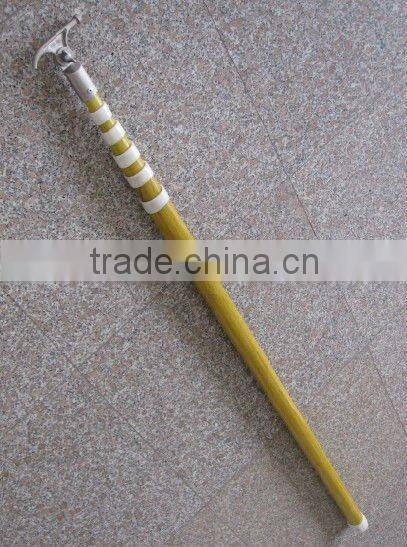

3-12m fiberglass telescopic pole
This telescopic pole is suitable for high voltage switch out operating. They are produced from epoxy resin, super light,
high voltage, high strength. The length and sections can be made depending on your request.
The Telescopic hot pole comes equipped with a universal spline end and hot stick probe. In addition, the Telescopic hot sticks come with the tip lock operational feature standard. The operator can simply lock the end section into second to last
section if necessary to obtain maximum flexural/tensile strength from the extended stick to open/close stubborn equipment.
Remember when utilizing the tip lock feature the operator will lose approximately 5 foot of extended reach.
The fiberglass telescopic pole is the newest generation of fiberglass hot stick to enter the electrical market. The stick has been engineered, so additional fiberglass has been added where the
highest strength is required and removed where it is not required. The result is a telescopic stick able to withstand the
rigors of line operations and still offer the utmost in lightweight for portablility. The outside surface texture provides a positive
gripping surface even in wet conditions. All operating buttons are CNC machined from very high strength and water resistant
engineered solid polymer rod to provide maximum mechanical strength.
Fiberglass telescopic pole
Normal specifications:3m-7.5m
Withstand Voltage |
Total length |
Section |
Weight |
10KV |
3m/4m |
3sections |
1.24kg/1.378kg |
35KV |
4.5m |
3sections |
1.68kg |
110KV |
5m |
3sections |
1.85kg |
220KV |
6m |
4sections |
2.4kg |
500KV |
7.5m |
4sections |
3kg |
We also have other kinds of hot sticks.
HV Brake Pull-rod(3m----8m)
Specification:
Withstand Voltage |
Total length |
Section |
Weight |
10KV |
3m/4m |
3sections |
1.5kg/1.8kg |
35KV |
4.5m |
3sections |
2.2kg |
110KV |
5m |
3sections |
2.4kg |
220KV |
6m |
4sections |
2.84kg |
500KV |
7.5m |
4sections |
4kg |
Fiberglass Triangle telescopic pole/ hot stick(3m---12m)
