Specifications

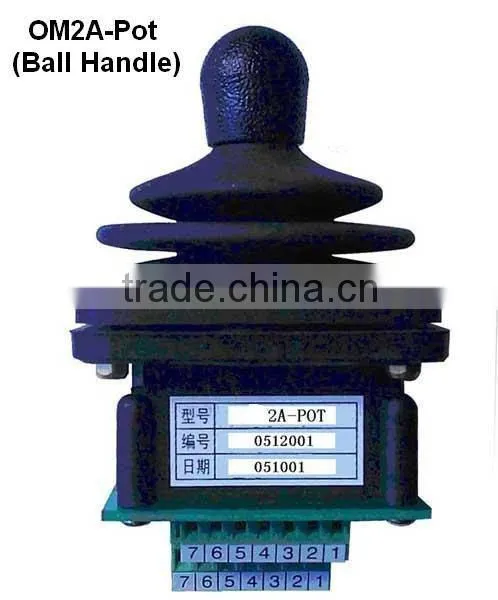

Desc:2-Axis potentiometer Joysick(Special for industrial)Model: OM2A-Pot
OM2A-POt(two-shaft industrial joystick) | ||
|

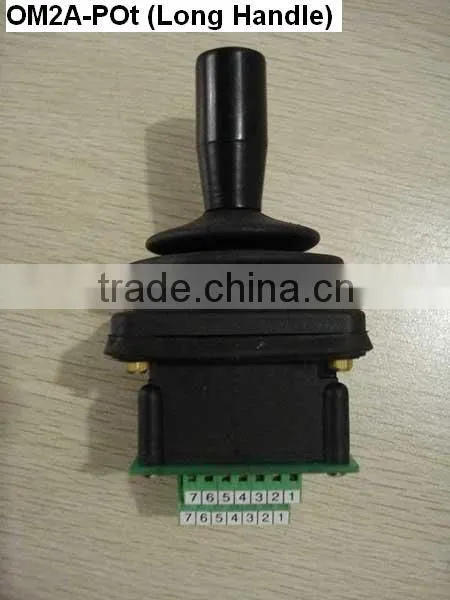

l Industrial joystick, suitable for industrial Proportional Remote controller; Hydraulic proportional valve control just as fire engine controller, manlifts; motor controller. l With direction switch l Conductive plastic potentiometer life more than 1,000,000 times. l Installing with flexible rubber, and double sealed l IP65 Protection rank: IP65 l Control direction with two shafts. l Alternative: Long handle ( H=45mm, Φ=19mm) | ||
|
ELECTRICAL: Resistance: 5K Ohm Error: 10% Center angle: ±2º Max rating: 0.2W
|
MECHANICAL: Swing angle: 32º life: more tha1,000,000times operation strength: 15N(Max) Max strength: 200N Weight: 100g
|
Direction Switch: contact resistance: 2K Ohm Max rating : 0.2W push and pull with resistance 10-20K Ohm Environment: Protection Rank: IP65 Temperature Rank: -20º-- +70 degree celsius |
....
