Specifications

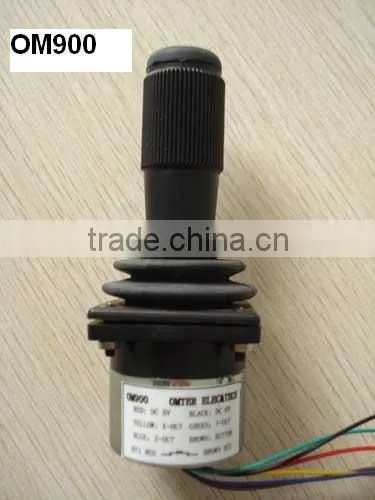

Desc:OM900 Hall JoystickModel: OM900
Model: OM900
Desc: Hall Joystick
l Used in the electric car motion control, the robot as well as kinds of man-machine operating system.
l The inductive non-contact angle examination, guaranteed that is bigger than 10,000,000 times.
l Can be single axis, two axes or three axes.
l The voltage is 0.5V-2.5V-4.5V OR 0V-2.5V-5V DC.
We also can Supply the RS232, RS485, USB connection output, SPI Connection and 2-wire with 4-20mA current output.
Electrical
total current:30 mA
linearity tolerance:± 3%
power voltage DC5.0V±10%
Resistance:more than 10KΩ
Mechanical
swing angle: ±20º
life: more than 10,000,000 times
operation strength:5-N(Max)
Max strength: 200N
weight: 50g
Environment
temperature: -20 degree celsius--- +75 degree celsius
protection rank: IP65
....
Send Inquiry to This Supplier
