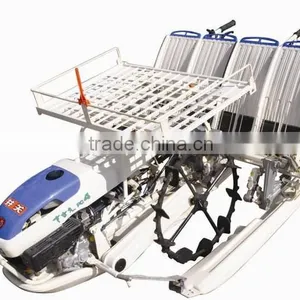

New Designed High Quality Iseki Walking Rice Transplanter :
1 Applications And Features:
1.1 Equipped with Kawasaki engine, air cooling 4 strokes engine,low vibration, low noise, low fuel consumption.
1.2 Lightweight compact design, easy to operate
1.3 The operating parts are centralized, simple operation can realize high efficiency, high precision transplanting.
1.4 Duolex seedling conveying belt, can keep smooth for the bottom of seedling.
1.5 Alloy casting seedling needle, wear-resisting and does not hurt the seedling.
1.6 Enlarged and widened seedling carrier, can continuously operate, improve the operating efficiency.
1.7 Unique oscillating sensor, through body controlling reaches a level of stability in the field to ensure correct, fast
and high precision planting.
1.8 Adopt handle to carry out the adjustment of seedling quantity and depth,can realize high-efficiency, high
precision transplanting with simple operation.
1.9 Without tools, you can easily remove the machine cover, very convenient for repair and maintenance.
2 Technical Parameters For 2ZS-4B(PC4) Type :
| Model | 2ZS-4B(PC4) | ||
| Dimension | 2180x1500x930mm | ||
| Weight | 155Kg | ||
| Engine | Model | FJ180G | |
| Feature | Air-cooling 4-stroke OHV gasoline engine | ||
| Power/Speed | 2.9kw/1600rpm | ||
| Max Power/Speed | 4.1kw/2000rpm | ||
| Fuel Tank Capacity | 3.2L | ||
| Start Way | Anti-stroke by hand | ||
| Displacement | 0.179L | ||
| Walking Part | Wheel Type | Rubber non slip | |
| Wheel Out Diameter | Φ660 | ||
| Wheel Spacing | 640mm | ||
| Shift Mode | Mechanical transmission | ||
| Working Speed | 0.33~0.77m/second | ||
| Walking Speed | 0.68~1.59m/second | ||
| Shift Position | Forward : 2 backward : 1 | ||
| Up And Down Adjustment | Hydraulic automatic adjustment | ||
| Planting Part | Planting Line | 4 lines | |
| Spacing Between The Rows | 300mm | ||
| Spacing In The Row | 140,160,180mm | ||
| Plant Number In 3.3m² | 80,70,60 | ||
| Plant Depth | 0.4~4cm | ||
| Seeding form | Alloy steel die casting seeding | ||
| Lateral Transfer Amount Per Hole | 15.6, 14.0, 11.7mm | ||
| Lateral Transfer Times Per Hole | 18,20,24 | ||
| Longitudinal Seedling Depth Per Hole | 8~19 | ||
| Plantation Efficiency | 1999m² per hour (max) | ||
| Automatic Balancing Device | No | ||

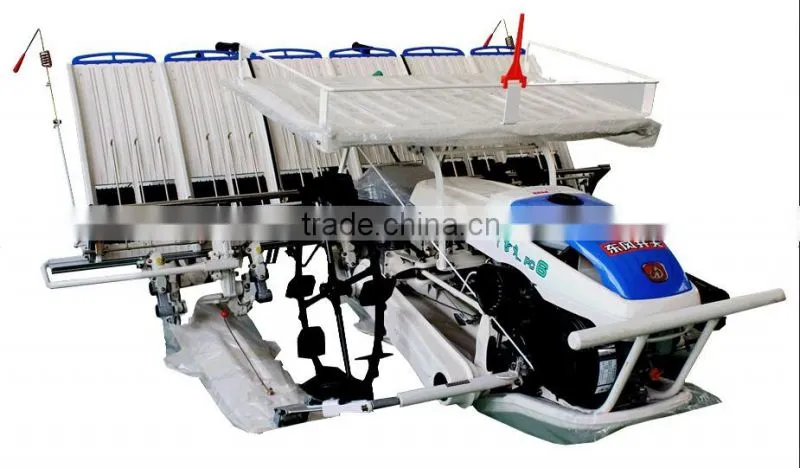

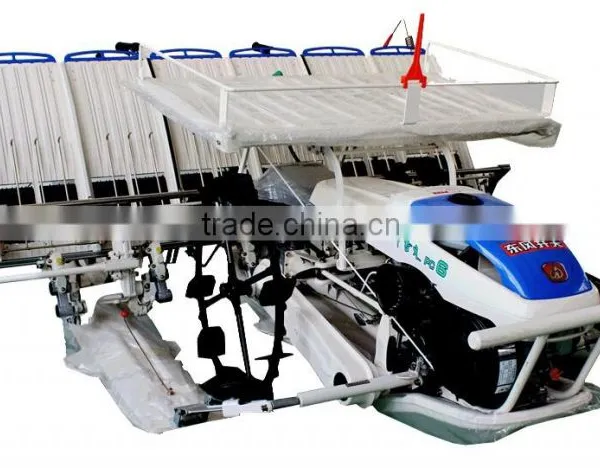

3 Technical Parameters For 2ZS-6A (PC6) Type :
| Model | 2ZS-6A (PC6) | ||
| Dimension | 2180x2100x1030mm | ||
| Weight | 180Kg | ||
| Engine | Model | GT600LC | |
| Feature | Air-cooling 4-stroke OHV gasoline engine | ||
| Power/Speed | 2.9kw/1600rpm | ||
| Max Power/Speed | 4.4kw/1800rpm | ||
| Fuel Tank Capacity | 3.2L | ||
| Start Way | Anti-stroke by hand | ||
| Displacement | 0.181 L | ||
| Walking Part | Wheel Type | Rubber non slip | |
| Wheel Out Diameter | Φ660 | ||
| Wheel Spacing | 640mm | ||
| Shift Mode | Mechanical transmission | ||
| Working Speed | 0.33~0.69m/second | ||
| Walking Speed | 0.44~0.93m/second | ||
| Shift Position | Forward : 2 backward : 1 | ||
| Up And Down Adjustment | Hydraulic automatic adjustment | ||
| Planting Part | Planting Line | 6 lines | |
| Spacing Between The Rows | 300mm | ||
| Spacing In The Rows | 140,160,180mm | ||
| Plant Number In 3.3m² | 80,70,60 | ||
| Plant Depth | 0.4~4cm | ||
| Seeding form | Alloy steel die casting seeding | ||
| Lateral Transfer Amount Per Hole | 15.6, 14.0, 11.7mm | ||
| Lateral Transfer Times Per Hole | 18,20,24 | ||
| Longitudinal Seedling Depth Per Hole | 8~19 | ||
| Plantation Efficiency | 2666m² per hour (max) | ||
| Automatic Balancing Device | Yes | ||

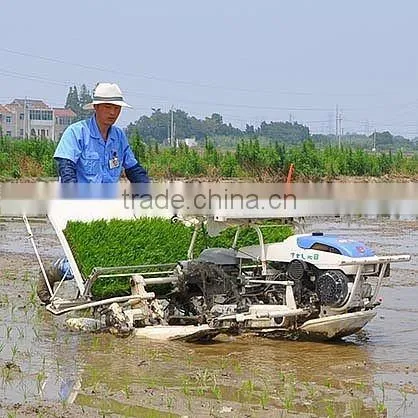

Lightweight Design !

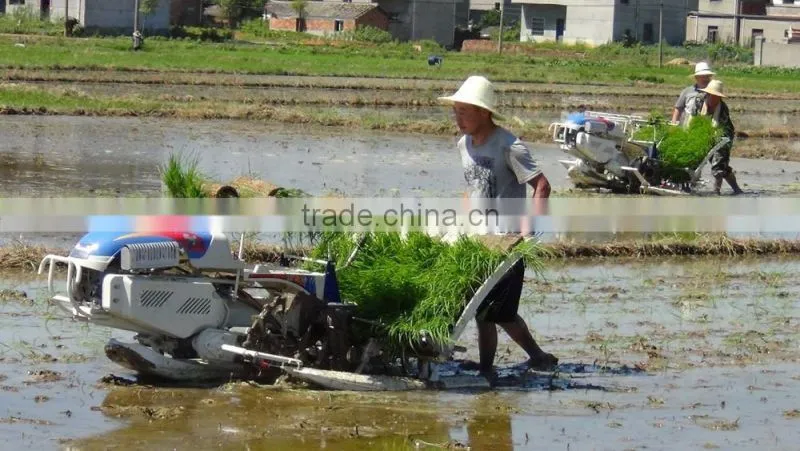

You can rest assured operate in the irregular field, mountain field and wet fild.
Achieve High Efficiency Of Interpolation And Planting ! Powerful Engine !

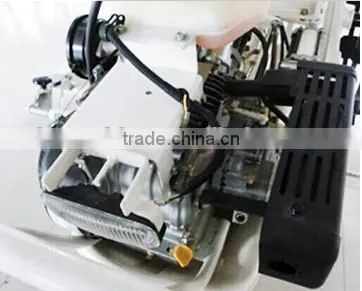

Equipped with Kawasaki air cooling 4 strokes engine. Low vibration and noise, so the long time of planting and transplanting still can be comfortable.

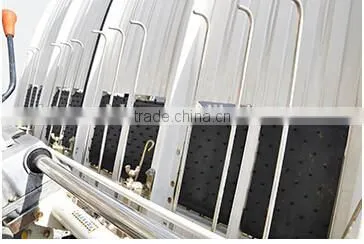

Weak Seedlings Can Also Be Dealt Well !
Duolex seedling conveying belt, can keep smooth for the bottom of seedling.

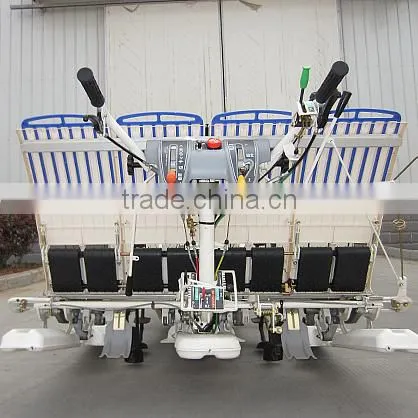

Centralized Configuration, Simple Operation !
Seedling Needle Is Favor To Seedling !
Adopt seedlingneedle from Japan which has many years research and practice achievements.

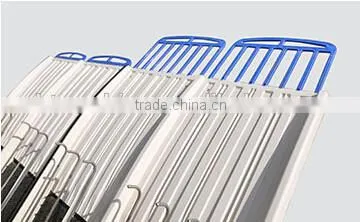

Seedling Carrier Extension Plate !
Reduce the number of breakings, improve work efficiency.

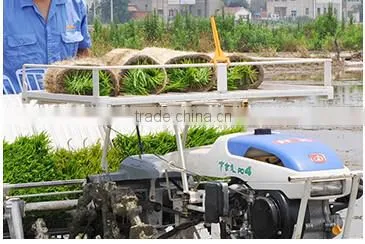

Increased Carrying Frame !
The carrier can put more seedlings, can reach high efficiency and continuous operation.

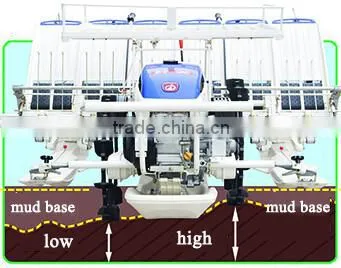

Automatic Level Control !
PC6 adopts pendulum sensor for automatic level control. The tilt of the body and the automatic correction of the sensor are also automatically corrected. The planting department can keep level, orderly transplanting.
