Specifications
1.ISO 9001 certificate2. fiberglas material
3.From 6mm -16 mm diameter as your required
4.Length 100-300 m or as your nee

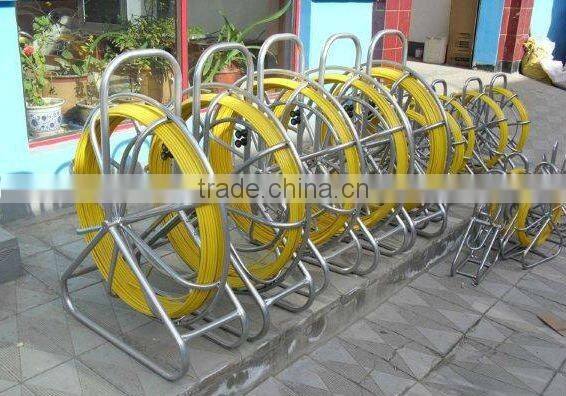

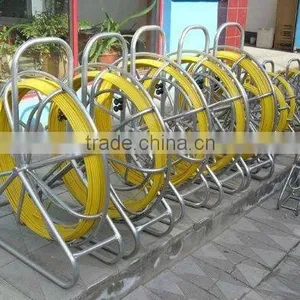

Technical Data of Fiber Snake Duct Rodder
Specification | Rod Diameter (mm) | Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 |
Rod Length (m) | 30~500 | |
Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc | |
Wheel Diameter(mm) | 300mm | |
Wall thickness of Metal Frame | 2.2mm | |
Color | blue, yellow, red, white etc | |
Material | Rod Inner | Extruded by fiber glass and high strength resin at high temperature |
Rod Outer | High Density polyethylene coating | |
Iron Frame | Steel with high-temperature sprayed plastic or Spray coating | |
Wheel | rubber | |
Brake | Yes | |
Drawing head | copper | |
Physical Characters | Density | 55g/m |
Working temperature | -40°C to +80°C | |
Breaking tension | 100kg | |
Bending Radius | 295mm | |
Technology | Pultrusion | |
Packaging | Inside | plastic woven strip wind around the frame |
Outside | Wooden pallet and Wooden box |
Fiberglass duct rodder sample is available and OEM is available.
1. Sample: Sample is available. Please send us email about your detail consignee information: name, address, zip code and tel. Then we will contact you and send samples to you.
2. Small order: We can accept small order for this product. Please let us know your order quantity.
3. Customize: We accept OEM service and can customize products as customers' design.
4. After-sales service: We will give customers active feedback within 24hours after receive any of customers' questions.
1. Can I order a sample?
Yes, sample is available before order. Please send us email about your detail consignee information: name, address, zip code and tel. Then we will contact you and send samples to you.
2. What's the delievery time?
Normally delivery time is about 25 days. If order quanity is small and we have these lights in stock, we can do prompt delivery, delivery time is about 7 days.
3. What's the delivery methods?
By sea, by air, International express, or rail transport.
4. What's the payment methods?
T/T: 50% T/T deposit in advance, the balance paid before delivery.
L/C: Irrevocable letter of credit at sight.
Sample cost can be paid by Western Union.
