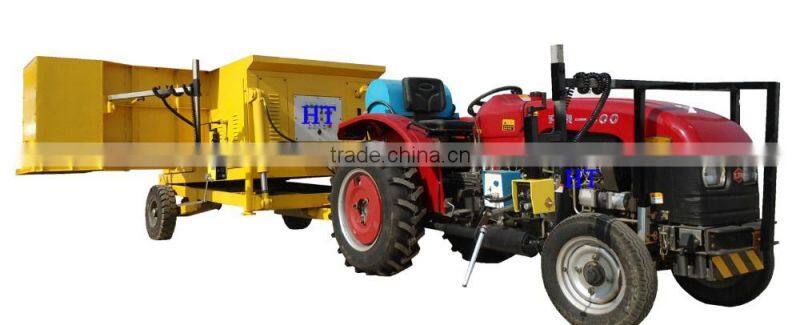

2016 Most Advanced Concrete Edger Machine :
Most Poweful Curb Slipformer , Can Work On Every Kind Of Road (such as soil road ,sand road)
Application And Features:
This machine is the special equipment for asphalt mixture or cement concrete road-building curbs.
Widely used in highway and municipal road curbs molding.
The built curbs linear has smooth appearance,water reaining effect is good,easy to operate,high production efficiency.
Technical Parameters:
HT1000 | Specifications | Features | |
Dimension | 6000x2500x1350mm | Compact, automatic move | |
Weight | 3000kg | ||
Road Kurb Size range | Width≤1000mm,height≤600mm | Is widely applicable for kurbs | |
Parameters Of engine set | Fuel | Diesel | Electronic speed control, voltage stability, light weight, small vibration, low noise, long life. Remote control. Automatic steering. Automatic leveling. High-pressure water flushing system |
Power | 51HP | ||
Output voltage | 380v,3 phases | ||
Start-up mode | Electric start | ||
Radiating way | Water cooling | ||
The curbs molding way | Vibrator rod forming | Dry plastic concrete | High strength |
Flat vibrator forming | Dry hard concrete | Beautiful appearance | |
Digital leveling system | Driven by tractor, can work on bumpy road | With temperature compensation Overvoltage overcurrent protection | |
Paving speed | 1-7m/min | Imported CVT (Continuously Variable Transmission), facilitate the adjustment of the most suitable paving | |
Hopper capacity | 1 m³ | Greater volume, reduce the number of shutdowns | |

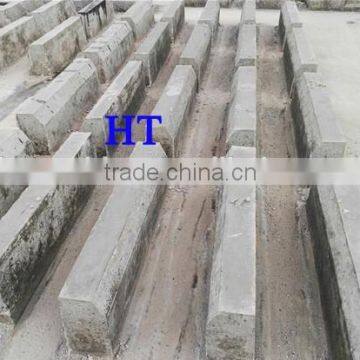

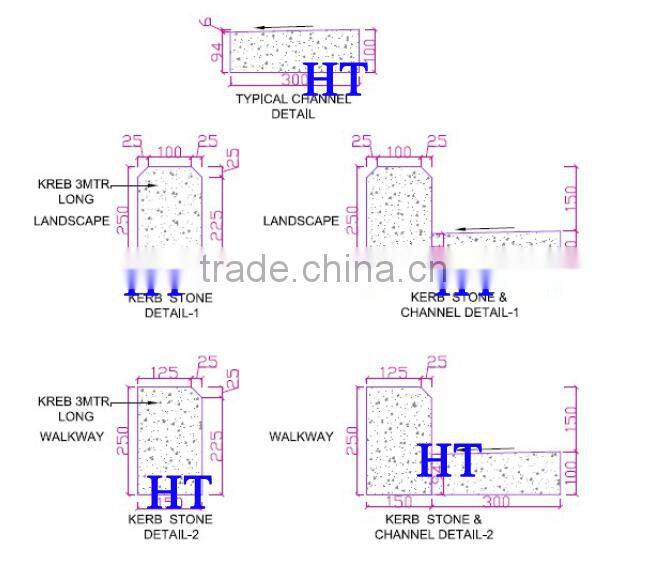

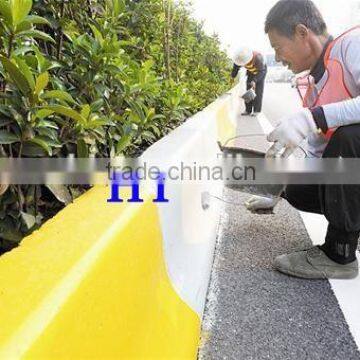

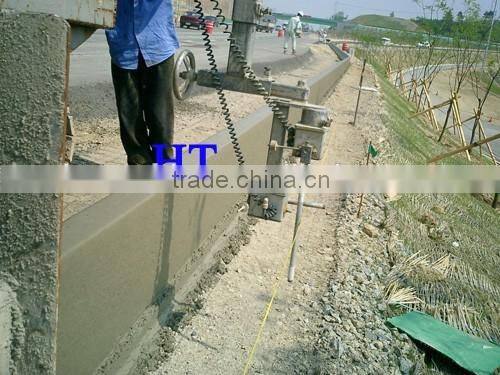

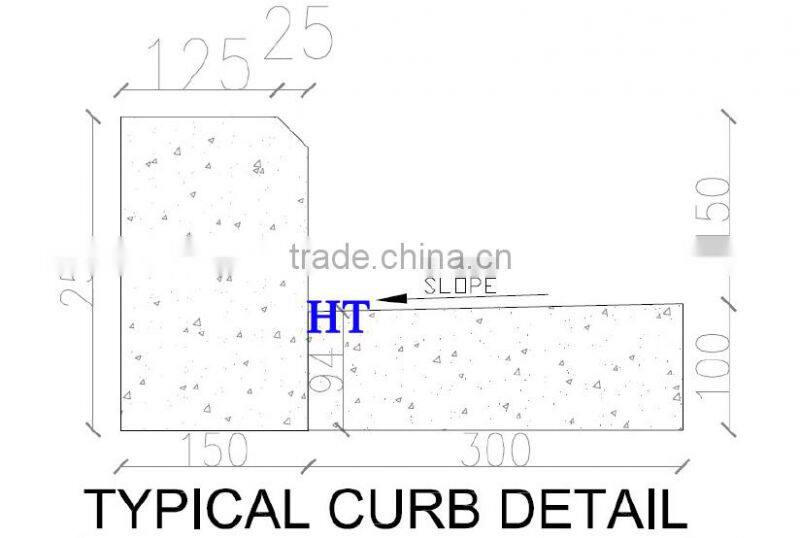

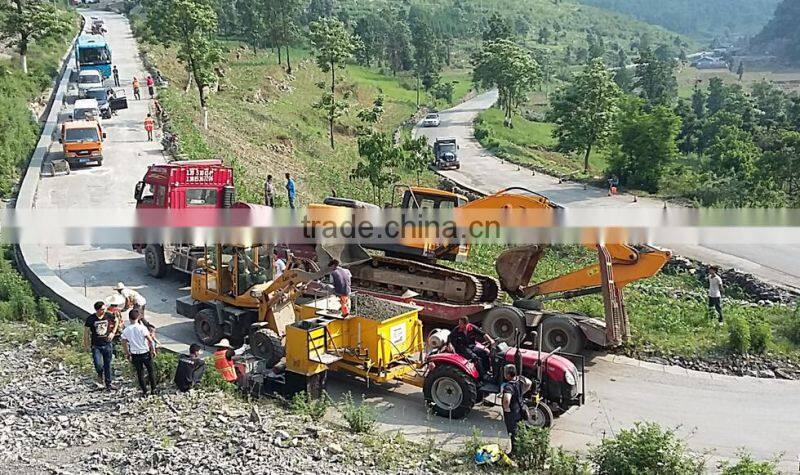

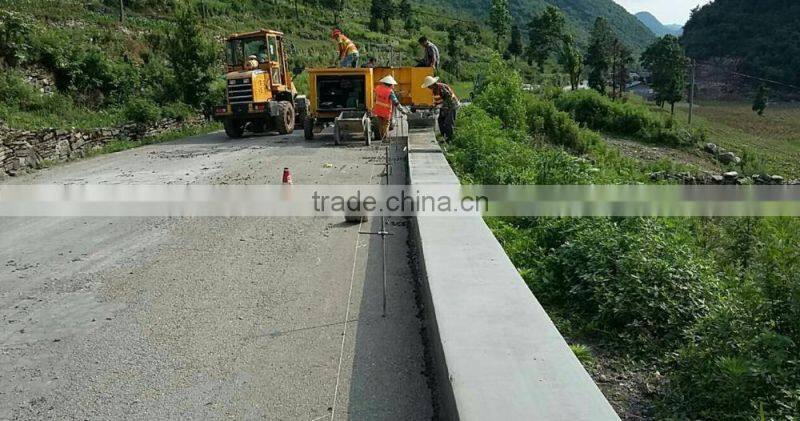

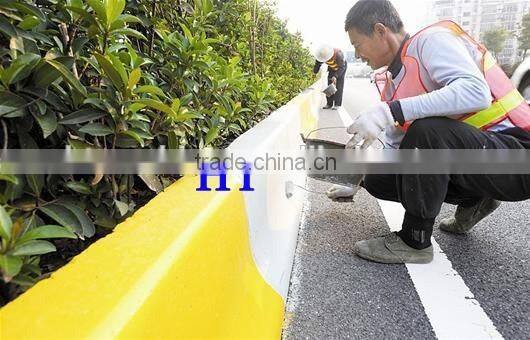

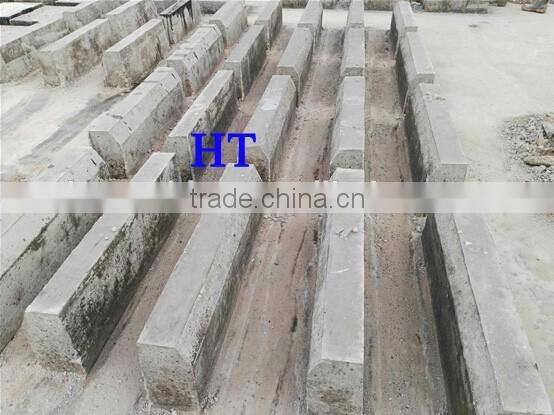

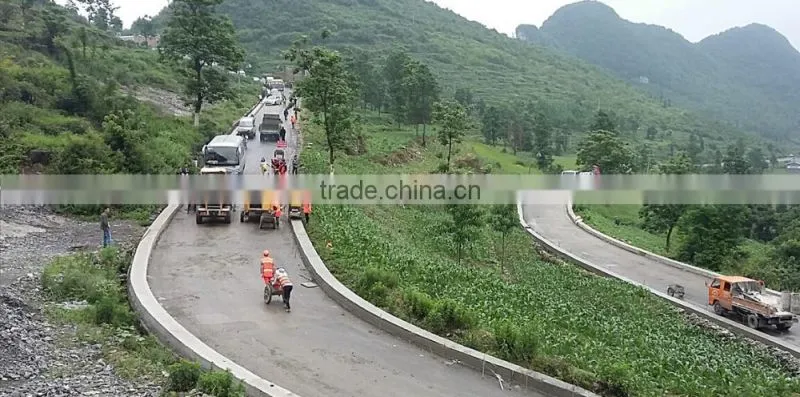

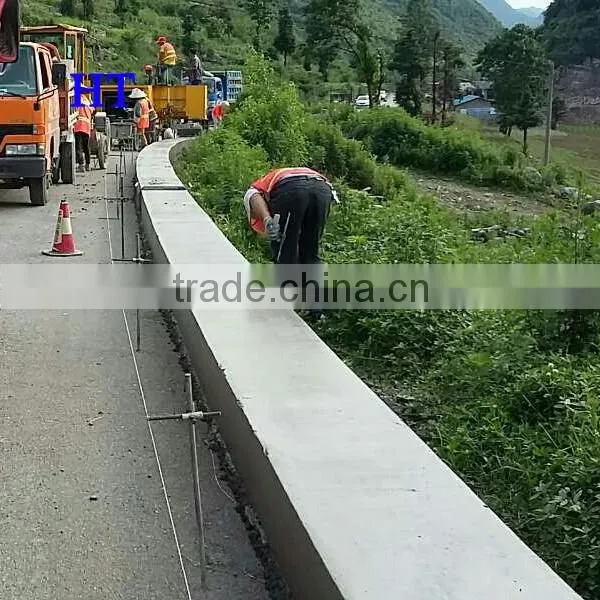

Draw Example From Our Clients:
| Related Products |
1 Curb Machine--HT400
2 Curb Machine--HT450
3 Curb Machine--HT750
4 Asphalt Curb Machine-LCX |
| 1 How about the quality of machines? |
| Our machines adopt advanced technology. Moreover, we carry out strict supervision during production and make sure every finished product with high quality. |
| 2 About the delivery time. |
| Generally, it will be about 20-25 days days after your deposit, which also will be on basis of your order. |
| 3 About warranty. |
| We provide 12 months for warranty. |
| 4 Which kind of payment is available for us? |
| T/T, L/C and Western Union are common for us. |
| 5 How about the service? |
| Provide overseas installation, debugging and training the relating work . |
High quality with low price :
Focus on water filter area,our factory has more than 20 years of professional experience,the price is directly from factory to our clients.
Multiple delivery choice :
We have big discount with forwarder,keep the goods reach yourside fast and safety.
Customer First, Credit-based :
7 x 24 hours service,every equiry will be treated carefully by us with authentic and quick replying.
