Seamless CW 10w 3 feet led t5 tube
- 100000 Piece / Pieces per Month
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
-
Radar Sensor T8 LED Light Tube 9W 12W 18W 22W
-
150cm LED lighting LED Tube Light Fluorescent Replace Led tri proof Lamp Fixture
-
CBK Hot-Selling Car wash Tool LED panel light Lighting LED Lights for car care workshop
-
CBK hot-selling car wash special lamp car beauty lamp repair shop ceiling lamp
-
CBK In-store beauty station lamp honeycomb hot-selling car wash beauty shop lighting
-
CBK hot sale square led wall lamp professional car wash auto beauty shop LED lamp
Product Details
| LED Light Source: | 2835 | Warranty(Years): | 2 | Input Voltage(V): | 220-240 |
| Lamp Power(W): | 10 | Lamp Luminous Flux(lm): | 950 | Lamp Luminous Efficiency(lm/w): | 95 |
| Color Temperature(CCT): | Other, WW /NW /CW | Working Temperature(℃): | -10, 40 | Working Lifetime(Hour): | 30000 |
| Lamp Body Material: | PC | IP Rating: | Other, t5 led tube light IP20 | Certification: | BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, SAA, SASO, UL, VDE |
| Place of Origin: | Jiangsu, China | Brand Name: | TIWIN | Model Number: | Other, t5 led tube light |
Product Description
Specifications
Seamless CW 10w 3 feet led t5 tubewell-known brand LED chip luminous source,
high efficiency, long rated life

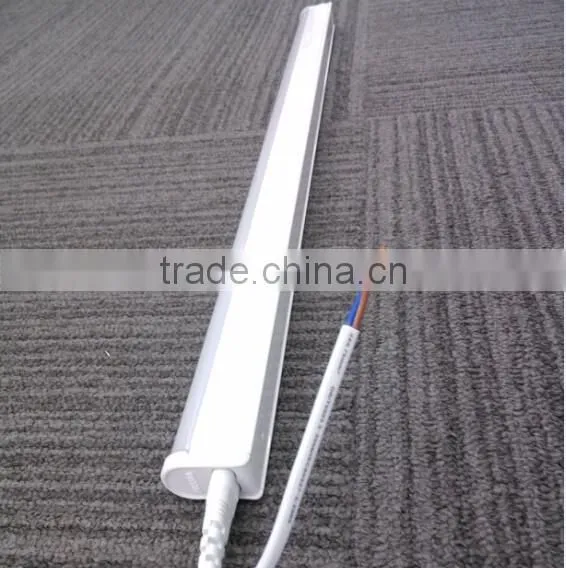

Seamless CW 10w 90cm 3 feet led t5 tube with bracket
Integrated structure, making installation easier
2-color plastic shell, light, simple, built-in aluminum, good heat dissipation.
With a double-ended serial interface, supports up to 20 serial connecting, saving man power
Hao Ming-T5 bracket lamp
| Chip type | Working environment | Installation | Protection grade | Rated life | Input voltage | Color | Material | certification | ||||
| 2835 | -20 ℃ ~ +40 ℃
| Wall mounting | IP20 | 30000h | 220~240V/50~60Hz | White | PC | CCC |
| |||
Specifications
MODEL# | Dimensions | Size A*B*C | CCT | Power | The number of chips | Power of the whole lamp | Efficacy | CRI | Power efficiency | Electrical protection | Package quantity |
BTMC7096A3U | 1.2m | 1170*35*24mm
| WW / NW / CW
| 14W
| 96 | 14W
| ≥ 95Lm / W
| ≥ 80 | 92% | Class Ⅱ
| 40 PCS / Box |
BTMC7072A3U | 0.9m | 885*35*24mm
| WW / NW / CW
| 10W | 72 | 10W | ≥ 95Lm / W
| ≥80 | 92% | Class Ⅱ
| 40 PCS / Box |
BTMC7051A3U | 0.6m | 585*35*24mm
| WW / NW / CW
| 7W | 51 | 7W | ≥ 95Lm / W
| ≥80 | 90% | Class Ⅱ
| 40 PCS / Box |
BTMC7024A3U | 0.3m | 317*35*24mm | WW / NW / CW
| 3.5W | 24 | 3.5W | ≥ 95Lm / W
| ≥ 80 | 86% | Class Ⅱ
| 40 PCS / Box |
IV. Production capability
TIWIN owns automated production lines, production equipment and instruments, including 9 SMT production lines, 65 sets equipments, such as: automatic wave soldering, reflow soldering, automatic braiding, automatic optical spectral machines and other production equipments..
We own 41 assembly lines, with more than 185 sets automatic printing machine, glue machine, burn-in machine and waterproof IP67/68/65 test equipments.
