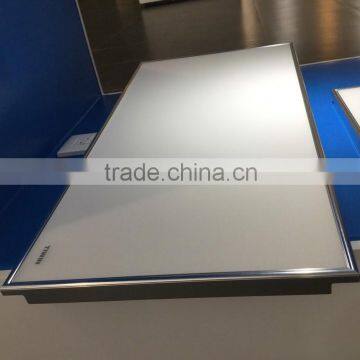

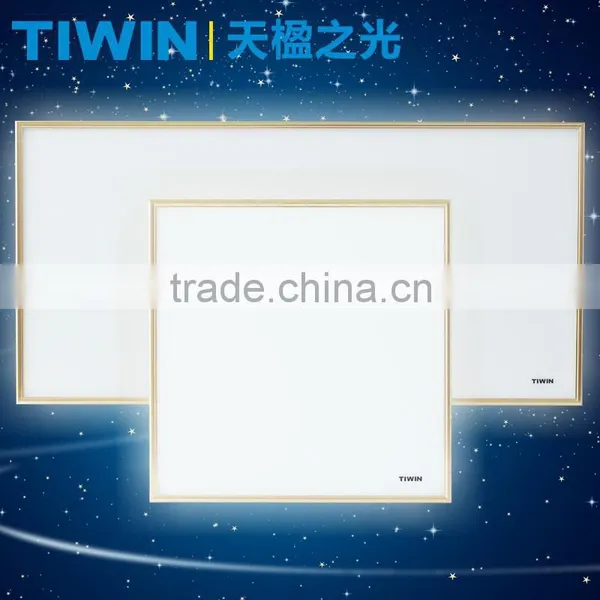

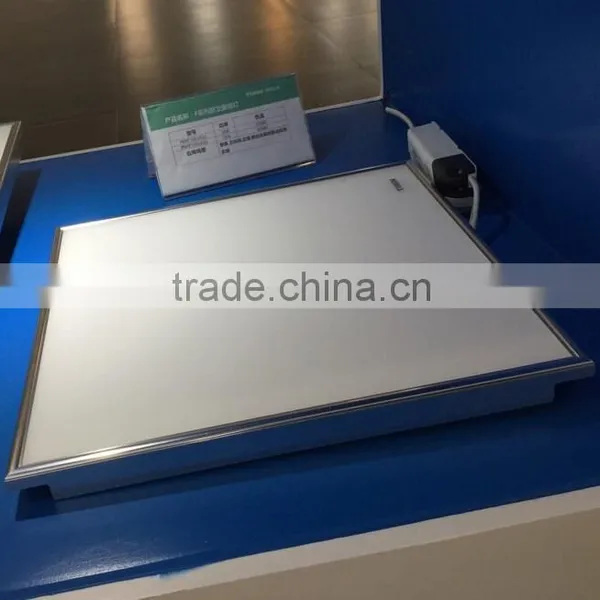

China Factory CE Rohs Certificate 10W 300*300 Led Lighting Panel

China Factory CE Rohs Certificate 10W 300*300 Led Lighting Panel thumbnail-1
China Factory CE Rohs Certificate 10W 300*300 Led Lighting Panel thumbnail-2
China Factory CE Rohs Certificate 10W 300*300 Led Lighting Panel thumbnail-3
China Factory CE Rohs Certificate 10W 300*300 Led Lighting Panel thumbnail-4
China Factory CE Rohs Certificate 10W 300*300 Led Lighting Panel photo-1
China Factory CE Rohs Certificate 10W 300*300 Led Lighting Panel photo-2
China Factory CE Rohs Certificate 10W 300*300 Led Lighting Panel photo-3
China Factory CE Rohs Certificate 10W 300*300 Led Lighting Panel photo-4
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
SMD 4014
Warranty(Years):
2
Input Voltage(V):
220-240
Contact Supplier Request Quote Chat Now
Jiangsu Tianying Opto-Electronics Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD 4014
Warranty(Years) 2
Input Voltage(V) 220-240
Lamp Power(W) 10
Lamp Luminous Flux(lm) 770
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Cool White
Working Temperature(℃) -25, 45
Working Lifetime(Hour) 25000
Lamp Body Material PVC
IP Rating Other, led lighting : IP20
Certification CCC, CE, CQC
Place of Origin Jiangsu, China
Brand Name TIWIN
Model Number led lighting

TIWIN 10W 300*300 silver kitchen led lighting panel light





Introduction

Utral thin frame;

Novel, simple shape;

High quality LED light source

High quality aviation aluminum frame, rust and corrosion;

Light panels made of high quality PMMA material, anti-aging, anti-yellowing;



panel led lighting Performance Characteristics

item

Work environment

Installation method

Protection grade



Rated life

Color

Beam angle



Input voltage

Border material

PNMCF series  led panel lighting

-25°~

45°



Embedded

IP20

25000H

White

110°



220~240VAV 50~60Hz



aluminum

  panel led lighting Specifications

Product model

Size A*B*C

Power

Luminous flux



Color temperature

CRI

Power efficiency

Electrical enclosure



Package quantity



PNMF10

300*300*21mm

10W

700LM

6500K

≥80



>92%

Class Ⅱ



10PCS/box

PNMF18

300*600*21mm

28W

1550LM

6500K

≥80



>94%

Class Ⅱ



10PCS/box







Trade Shows

China factory CE rohs Certificate 10W 300*300 led lighting panelChina factory CE rohs Certificate 10W 300*300 led lighting panelChina factory CE rohs Certificate 10W 300*300 led lighting panelChina factory CE rohs Certificate 10W 300*300 led lighting panelChina factory CE rohs Certificate 10W 300*300 led lighting panel



About TIWIN

I. Introduction

TIWIN is a subsidiary company of public-listed TIANYING GROUP (China TIWIN 000035).
TIWIN located in TIWIN Environmental-Protection Industry Park, Hai’an, Nantong City, Jiangsu Province, covers an area of 600 acres ( 400,000 square meters ).  We has over 500 staffs, the R&D team includes more than 100 products development engineers. In 2011, we set up the Marketing and R&D Center in Caohejing Hi-tech Park, Shanghai.
TIWIN focused on design, manufacture, sale and service in LED lighting business.

China factory CE rohs Certificate 10W 300*300 led lighting panel

China factory CE rohs Certificate 10W 300*300 led lighting panel

II. Sample rooms

China factory CE rohs Certificate 10W 300*300 led lighting panel

China factory CE rohs Certificate 10W 300*300 led lighting panel

 IV. Production

China factory CE rohs Certificate 10W 300*300 led lighting panel

V. Warehouse

China factory CE rohs Certificate 10W 300*300 led lighting panel
