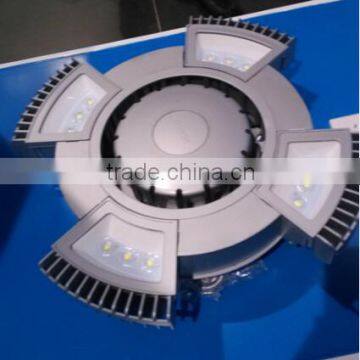

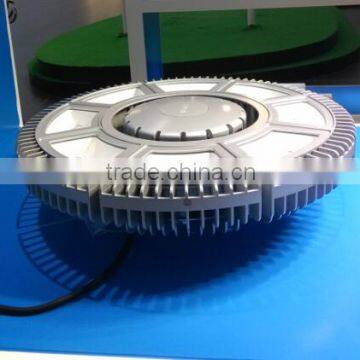

250W 26000lm led high bay light housing ip65 led high bay industrial

Specifications

led high bay light housing ip65 led high bay industrial
Flat design, unique, flexible installation,
IP65,
AC100-240V

TIWIN Modular design 250W led high bay light housing ip65 led high bay industrial



Modular design, flat shape, professional optical design, low glare, high luminous efficiency

Applications: workshop, factory, warehouse, highway toll stations, gas stations, supermarkets, exhibition hall, gymnasium etc.

3-years warranty



Features

Flat design, unique, more flexible installation

Professional thermal design cooling structure, the use of high thermal conductivity of aluminum alloy material, excellent thermal performance

IP65, dust and water resistance

AC100V-240V wide voltage input, constant current drive, stable light and color temperature

120/180/250W, 65/100 ° light distribution



JIANGSU TIWIN OPTO-ELECTRONICS TECHNOLOGY CO.,LTD.
	Product Specification		Version	1.01
			Page	2014-1-1
	Name	BYMD Highbay
	Product specification	100-240VAC 50-60Hz  120W/180W/250W
	Size	diameter486*190mm
	Installation method	Pendant Mounted
	ambient temperature	-10~40C@20~85%
	Angle adjustment	No
	Control method	No
	IP grade	IP65
	Rated lifespan	≥30000H
	standard	GB7000
	material	aluminum alloy
	Radiator component	aluminum alloy
	Ottica
	Installations component	install ring
	color	Silver gray
	Beam angle	65°/120°
	Luminous flux	11500±80lm/1200±120lm/25500±160lm
	CCT	5500±500K
	CRI	Ra≥70
LED Chips	Brand	Philips
	Lamp type	Luxeons M12V
	specification	12/18/24pcs
	weight(Kg)	N.W =8/11/13kg
	packing	1pcs per carton







BYMD serie	Working environment	Installation	Protection grade	Rated life	Beam angle	Color	material	LED Brand
	-20~+40℃	chain hangs/ boom/ ceiling	IP65	>30000h	65°/100°	Silver gray	Die casting aluminum	Lumileds

Specifications

MODEL#	Dimensions	Rated power	Luminous flux	Color temperature	CRI	Power factor	Electrical protection	Weight	Package number
BYMD3008A1U	φ486*190mm	250W	25500Lm	5700K	>70	>0.95	Class I	13KG	1PCS/box
BYMD3006A1U	φ486*190mm	180W	17500Lm	5700K	>70	>0.95	Class I	11KG	1PCS/box
BYMD3004A1U	φ486*190mm	120W	11500Lm	5700K	>70	>0.95	Class I	8KG	1PCS/box



Applications
