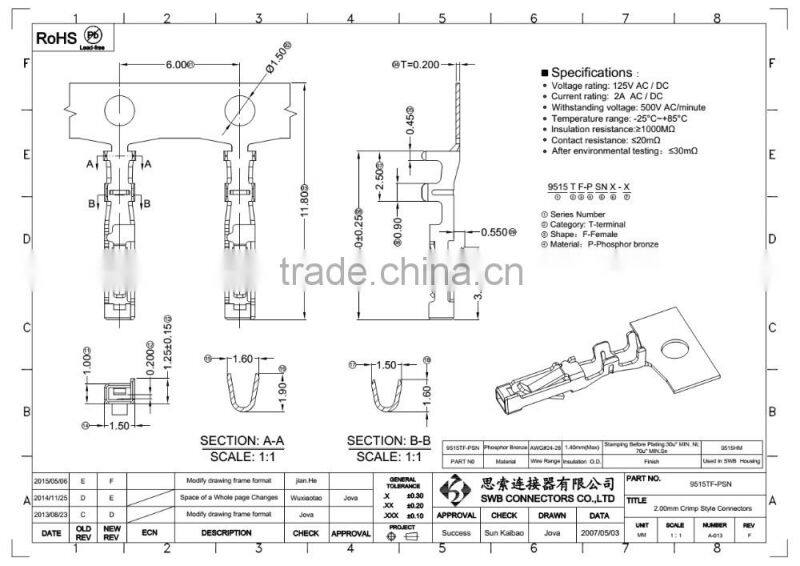

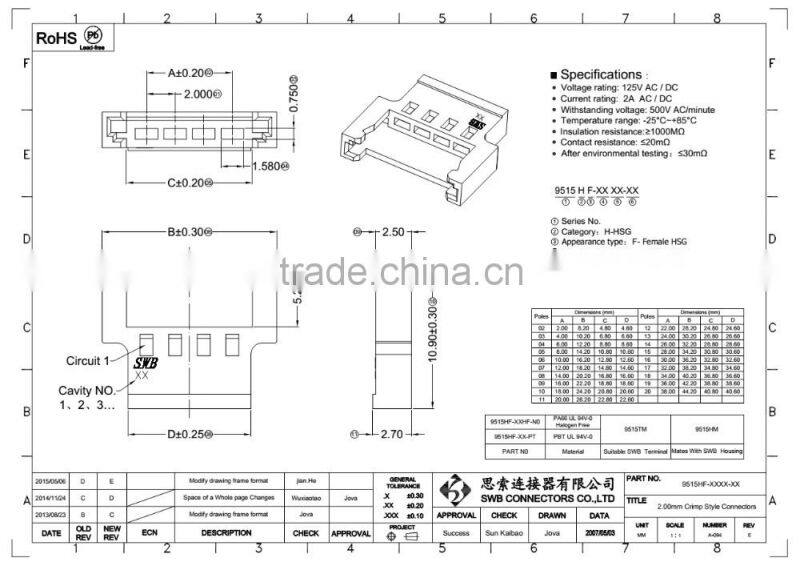

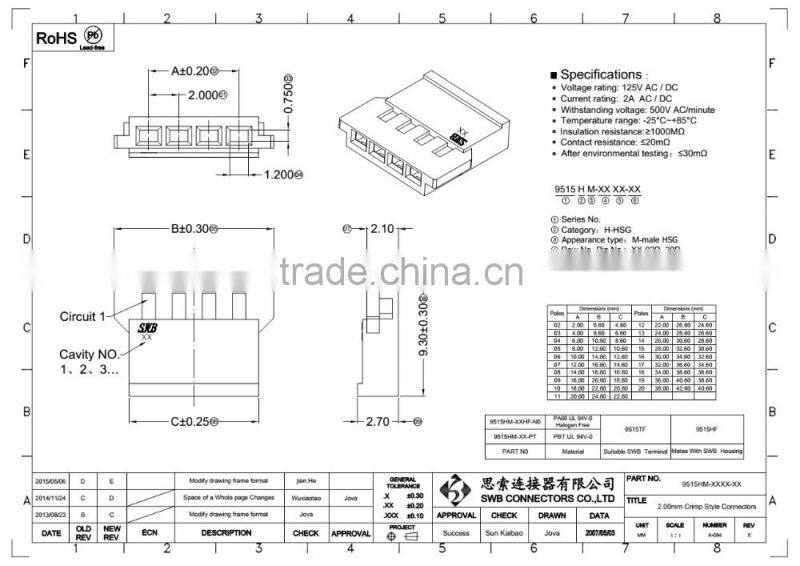

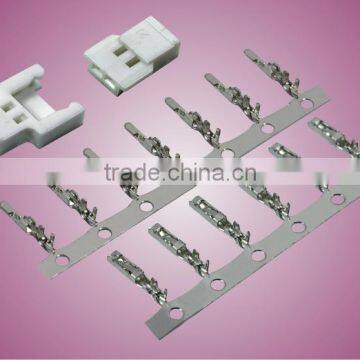

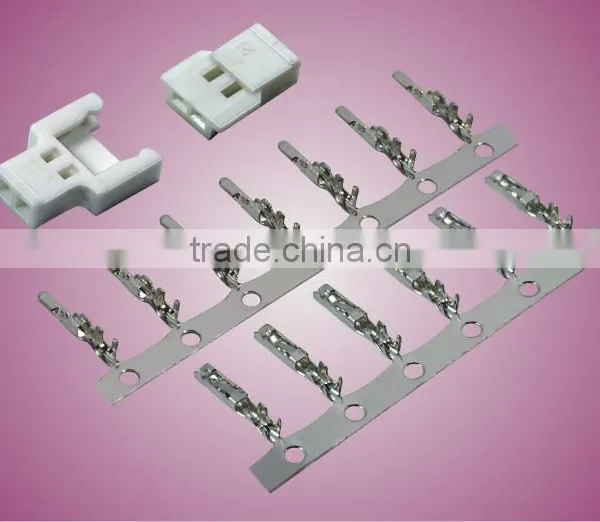

2MM Pitch Wire to wire electric connectors Molex replacement Made in China
SPECIFICATIONS:
Voltage Rated: 125 AC/DC
Current Rated: 2A AC/DC Max
Withstand voltage: 500V AC/minute
Insulation resistance: 1000MΩ min
Contact resistance: 20 MΩ max
Operation temperature: -25℃~+85°C
Wire Range:AWG#24-28
Item |
Part No |
Material |
Poles |
Package |
Housing |
9515H |
PBT UL94V-0 |
02-20 |
1000 Pcs/Bag |
Terminal |
9515T |
Phoshor Bronze |
10000Pcs/Reel |
1 Packaging: Useing strong bags/boxes/cartons for package to reduce the damage during the shipments. Tape and reel packing, Clamshell packing,Pallet packing etc are available.
2 Delivery Method: by sea, by air, or express such as DHL/TNT/UPS etc.
3 Delivery Time: normally 7-14days, could be negotiable when order is urgent.
1 fully-Inspection - Products are 100% inspected before shipment
2 In case of quality discrepancy or quantity discrepancy, we will do replenishment immediately, or other better methods after negotiation, to make sure our customers could be satisfied well.
3 Solution - Find the problems, make an effective improvement, and impose more strict quality control.
4 Long term after sell service to ensure customer is satisfied.
Q:How to place a fast connector order?
A:The following tips will save your time.
- The name of the product
- Pictures and/or the data sheet for the product
- The number of rows
- The number of pins per row
- The pitch of the connector
- The height of the insulator
- The color of the insulator
- The type of material
- Any Additional Demands
-
Ask your engineer for details
Are you a purchaser that doesn’t work directly with the product? To place a fast connector order, you can consult the project engineer to gather these information before contacting us.
