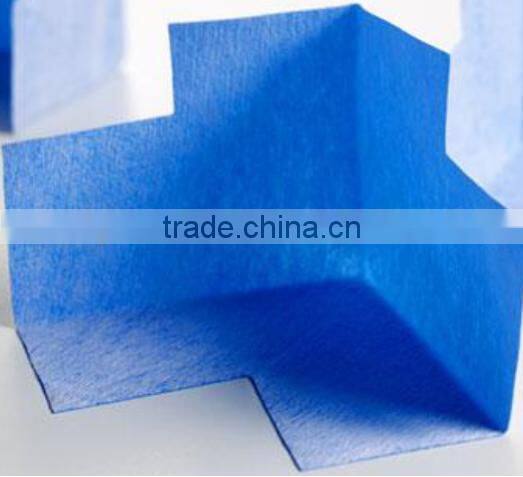

Help CenterShower Liner Corners
Related Products
-
PP AND PE Shower Liner CornersUS$ 0.5 - 2MOQ: 100 Rolls -
ECO Friendly ANSI108.10 HUIYUAN Pliable Polyethylene Shower Wall LinerUS$ 1.45 - 1.85MOQ: 5000 Square Meters
-
0.6mm Anti-mold pp and pe Shower Wall Liners for Thin-set Mortar, Ceramic and Stone TileUS$ 1.45 - 1.85MOQ: 5000 Square Meters
-
Eco Friedly ANSI108.10 Shower Liner With Various ColorsUS$ 1.45 - 1.85MOQ: 5000 Square Meters
-
Eco Friedly Shower Liner System With Various ColorsUS$ 1.45 - 1.85MOQ: 5000 Square Meters
Specifications
Shower LinerComplying with ASTM ANSI108.10;UPC Testing
Accessories: corners, shower seal,shower valve seal
To US, CANADA
Shower Liner is especially designed for waterproof in shower rooms and other wet area. This product is a composite sheet membrane made of soft polyethylene(PE) with nonwoven polypropylene(PP) fabric laminated on both sides to enable the membrane fixed firmly onto mortar.
Shower Liner is flexible and conforms to various contours of the wood framing, bending upward at the walls and folding into corners. It can be applied directly with thin-set mortar, ceramic and stone tile, provides waterproofing and crack isolation/joint bridging for thin-set installations of ceramic and stone tile. It has been an ideal membrane to protect the substrate from moisture penetration.
Product Features:
l Light-weight and Eco-friendly;
l Pliable material and compatible with various shapes of base;
l Easy and fast installation, saving installing time and labor cost;
l Excellent moisture barrier performance.
Applicable Scope:
l Moisture barrier liners in showers, steam rooms, swimming pool surroundings;
l Interior application of ceramic and stone tiles;
l Other wet areas like shopping centers, food courts, commercial kitchens, etc.
Product Specification:
Description |
PP/PE Shower Liner |
Material |
polyethylene(PE) film; polypropylene(PP) nonwoven |
Roll Size |
1mx100m |
Weight |
300g/sqm |
Thickness |
03mm~0.5mm |
Packing |
100sqm/roll wrapped in plastic film |
Colors |
Purple or customized |
Technical Parameter:
Waterproof Membrane for Thin-set Ceramic Tile and Dimension Stone Installation complying with ANSI108.10 of USA.
Property |
Test method |
Requirement |
Performance |
Fungus and micro-organism resistance |
|
The membrane shall not support mold growth |
Pass |
Seam strength |
ASTM D751 |
16 lb/2 in width |
36 lb/2 in width |
Breaking strength |
ASTM D751 |
170 psi |
1084 psi |
Dimensional stability |
ASTM D1204 |
0.7% maximum length change |
Pass |
Waterproofness |
ASTM D4068 |
No moisture penetration |
Pass |
7-day shear strength |
ASTM C482 |
50 psi |
87 psi |
7-day water immersion shear strength |
ASTM C482 |
50 psi |
77 psi |
4-week shear strength |
ASTM C482 |
50 psi |
96 psi |
12-week shear strength |
ASTM C482 |
50 psi |
90 psi |
100-day water immersion shear strength |
ASTM C482 |
50 psi |
120 psi |
Water vapor permeance |
ASTM E96 |
|
0.75 perms |
