Home > Products > Wire to Board Connector > 1.58MM Pitch wire to wire electric connectors with buckle
1.58MM Pitch wire to wire electric connectors with buckle
- 100000 Piece / Pieces per Month
- Hongkong
- T/T L/C D/P D/A
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SWB | Model Number: | 7725HT |
Type: | Other |
Product Description

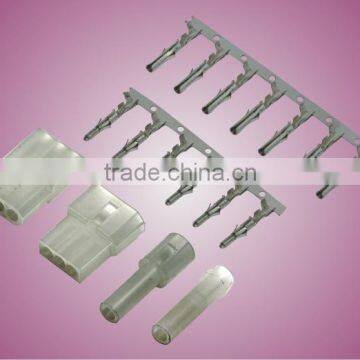

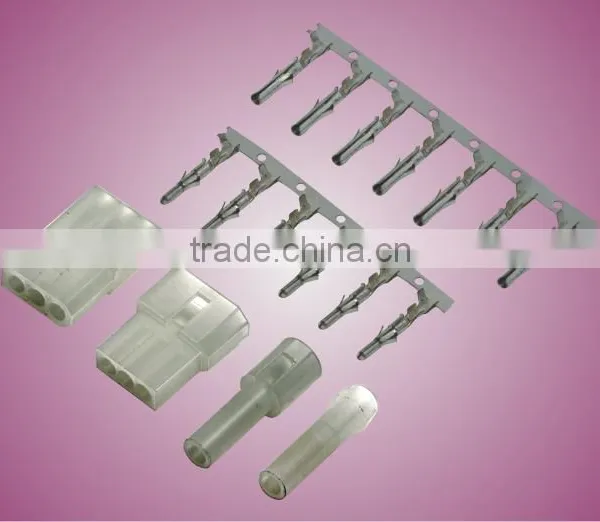

1.58MM Pitch wire to wire electric connectors
SPECIFICATIONS:
Voltage Rated: 250V AC/DC
Current Rated: 5A AC/DC Max
Withstand voltage: 1500V AC/minute
Insulation resistance: 1000MΩ min
Contact resistance: 10 MΩ max
Operation temperature: -25℃~+85°C
Wire Range:AWG#20-24
Item | Part No | Material | Poles | Package |

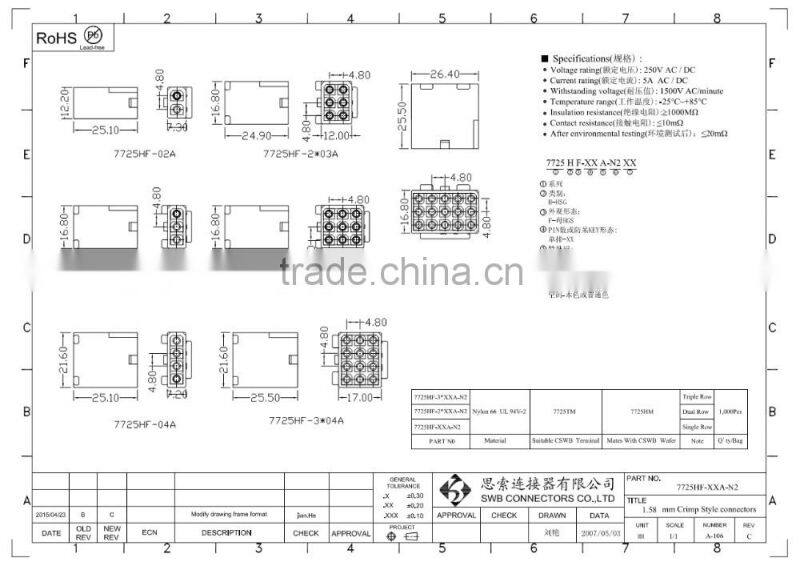

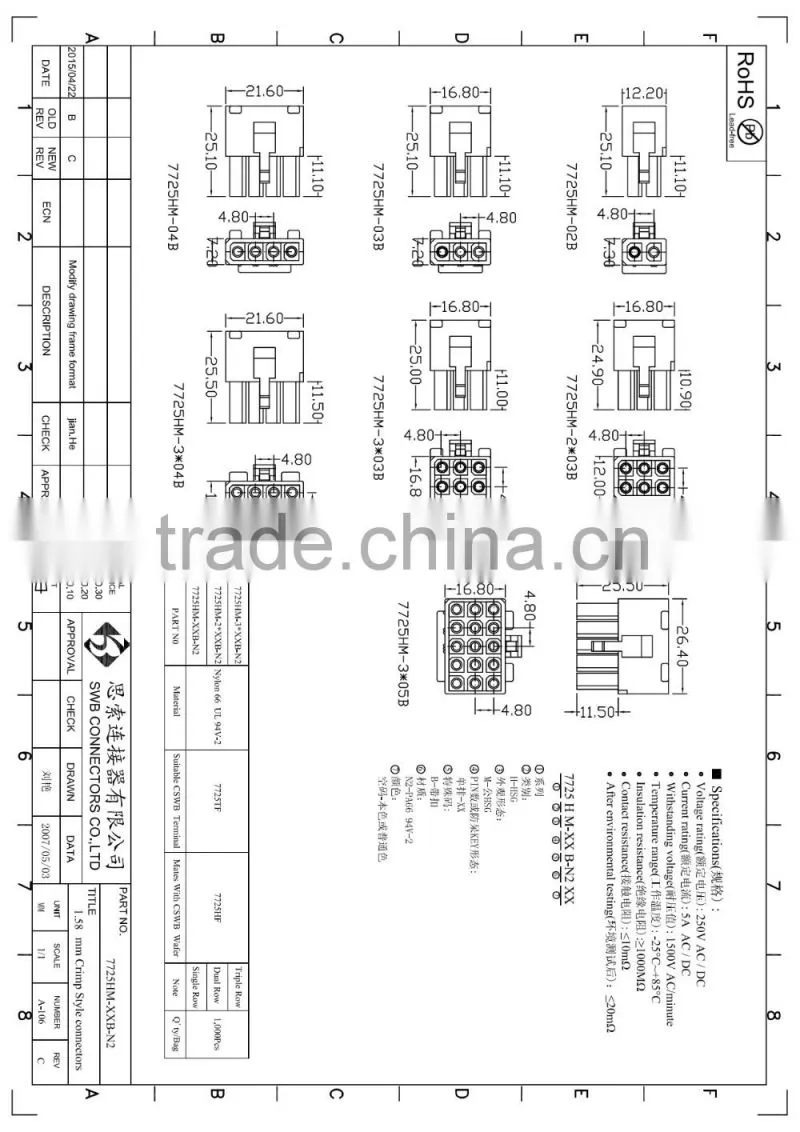

Housing | 7725H | Nylon66 UL94V-2 | 02-15 | 1000 Pcs/Bag |

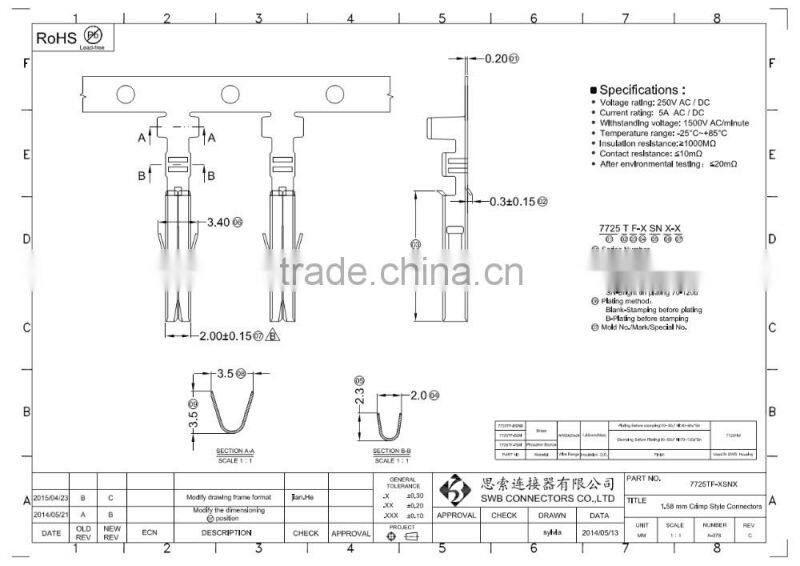

Terminal | 7725T | Phosphor Bronze |
| 10000Pcs/Reel |
1 Packaging: Useing strong bags/boxes/cartons for package to reduce the damage during the shipments. Tape and reel packing, Clamshell packing,Pallet packing etc are available.
2 Delivery Method: by sea, by air, or express such as DHL/TNT/UPS etc.
3 Delivery Time: normally 7-14days, could be negotiable when order is urgent.
1 fully-Inspection - Products are 100% inspected before shipment
2 In case of quality discrepancy or quantity discrepancy, we will do replenishment immediately, or other better methods after negotiation, to make sure our customers could be satisfied well.
3 Solution - Find the problems, make an effective improvement, and impose more strict quality control.
4 Long term after sell service to ensure customer is satisfied.
